Passenger Door Harness Routing

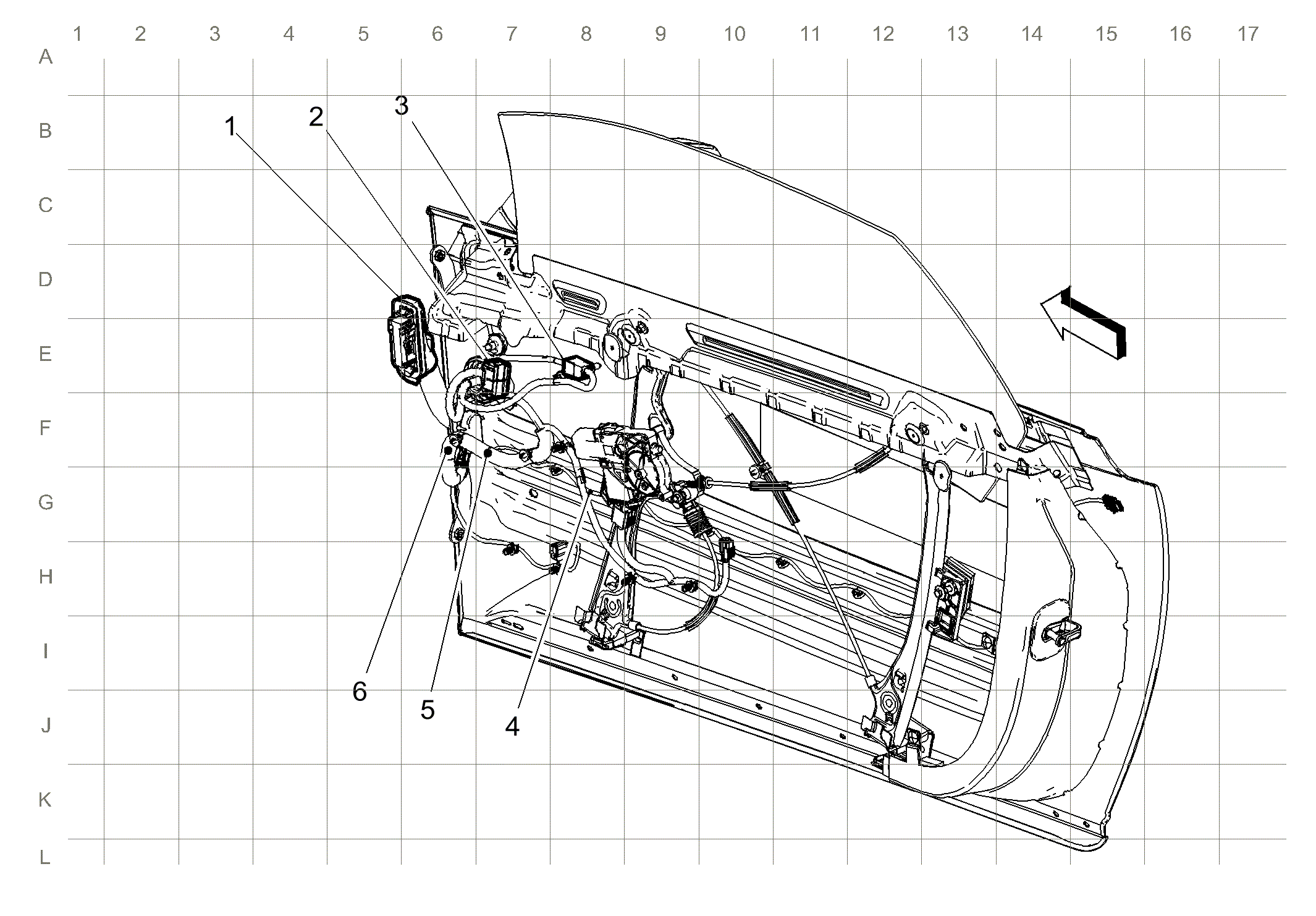

Fig 1: Passenger Door Harness Routing
GM3617117Courtesy of GENERAL MOTORS COMPANY
Items
1:  X600 X600 Passenger Door Harness to Body Harness
2:  X605 X605 Passenger Door Harness to Passenger Door Trim Harness
3:  X610 X610 Outside Rearview Mirror - Passenger to Passenger Door Harness
4:  J611
5:  J613
6:  J615
