Left Rear of Underbody Harness Routing

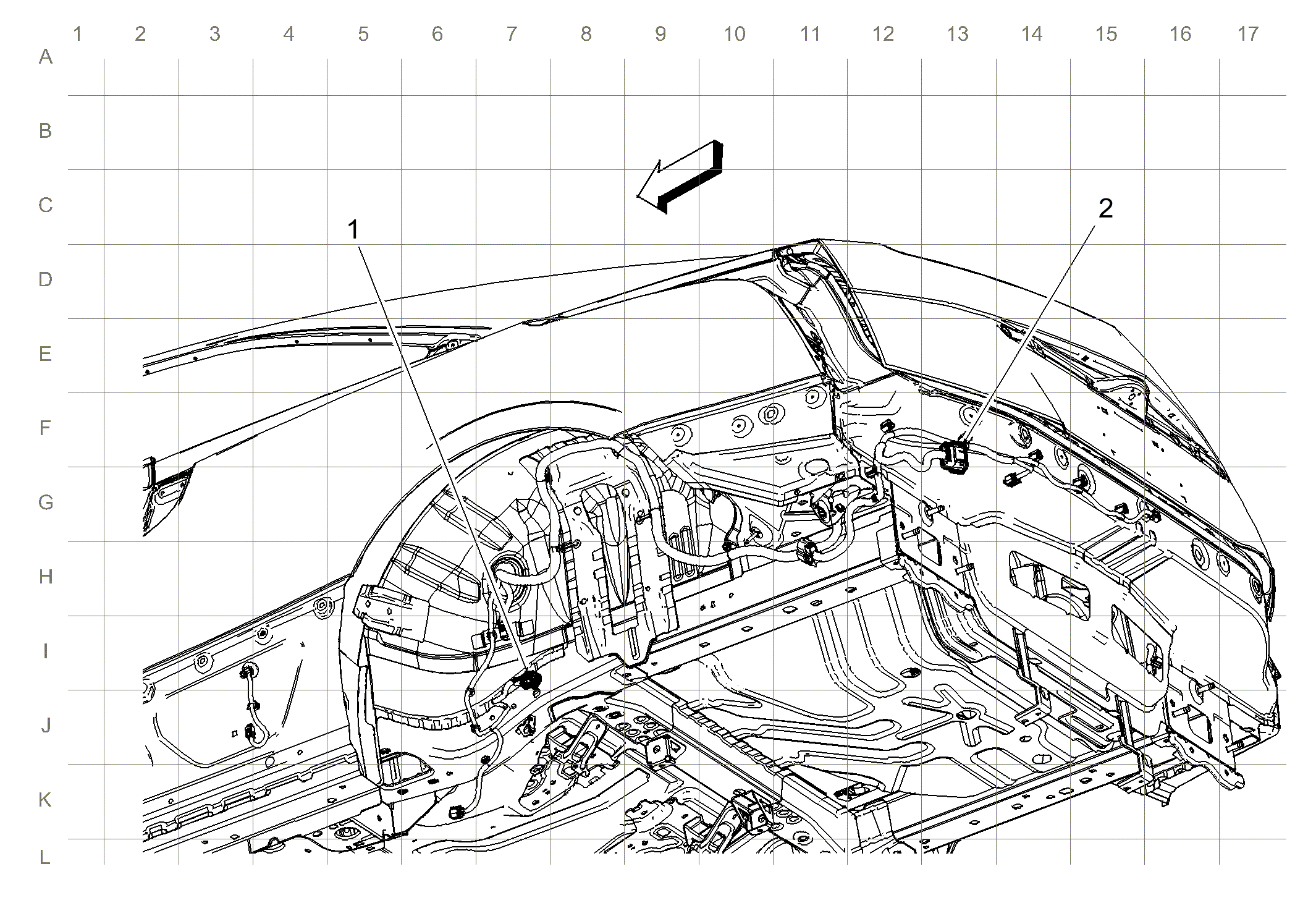

Fig 1: Left Rear of Underbody Harness Routing
GM3617112Courtesy of GENERAL MOTORS COMPANY
Items
1:  X332 X332 Body Harness to Left Rear Suspension Jumper
2:  X450 X450 Body Harness to Rear Fascia Harness
