Left Rear of Passenger Compartment Harness Routing

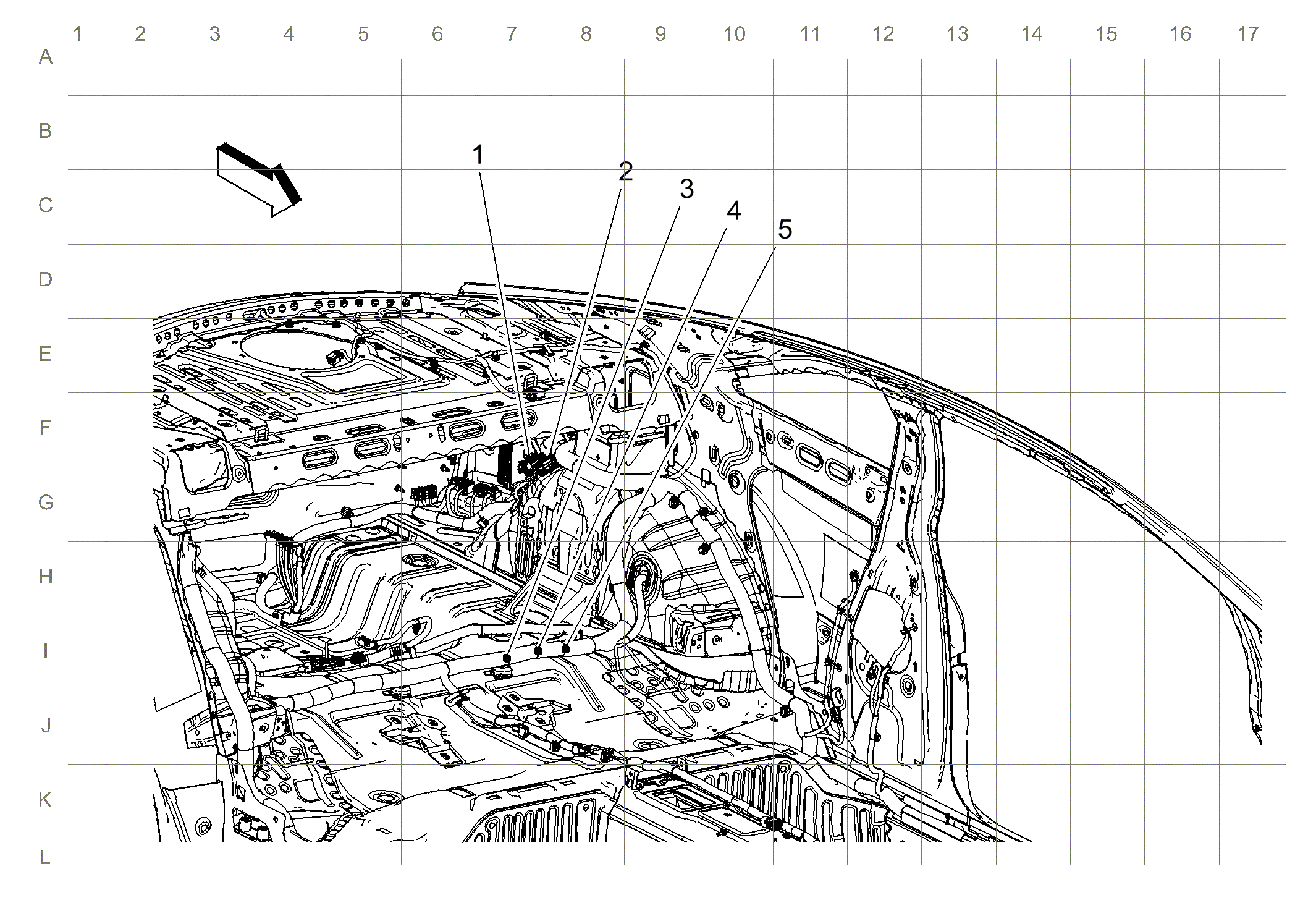

Fig 1: Left Rear of Passenger Compartment Harness Routing
GM3618284Courtesy of GENERAL MOTORS COMPANY
Items
1:  JX300
2:  X406 X406 Body Harness to Body Jumper
3:  J402
4:  J407
5:  J405
