Headliner Harness Routing

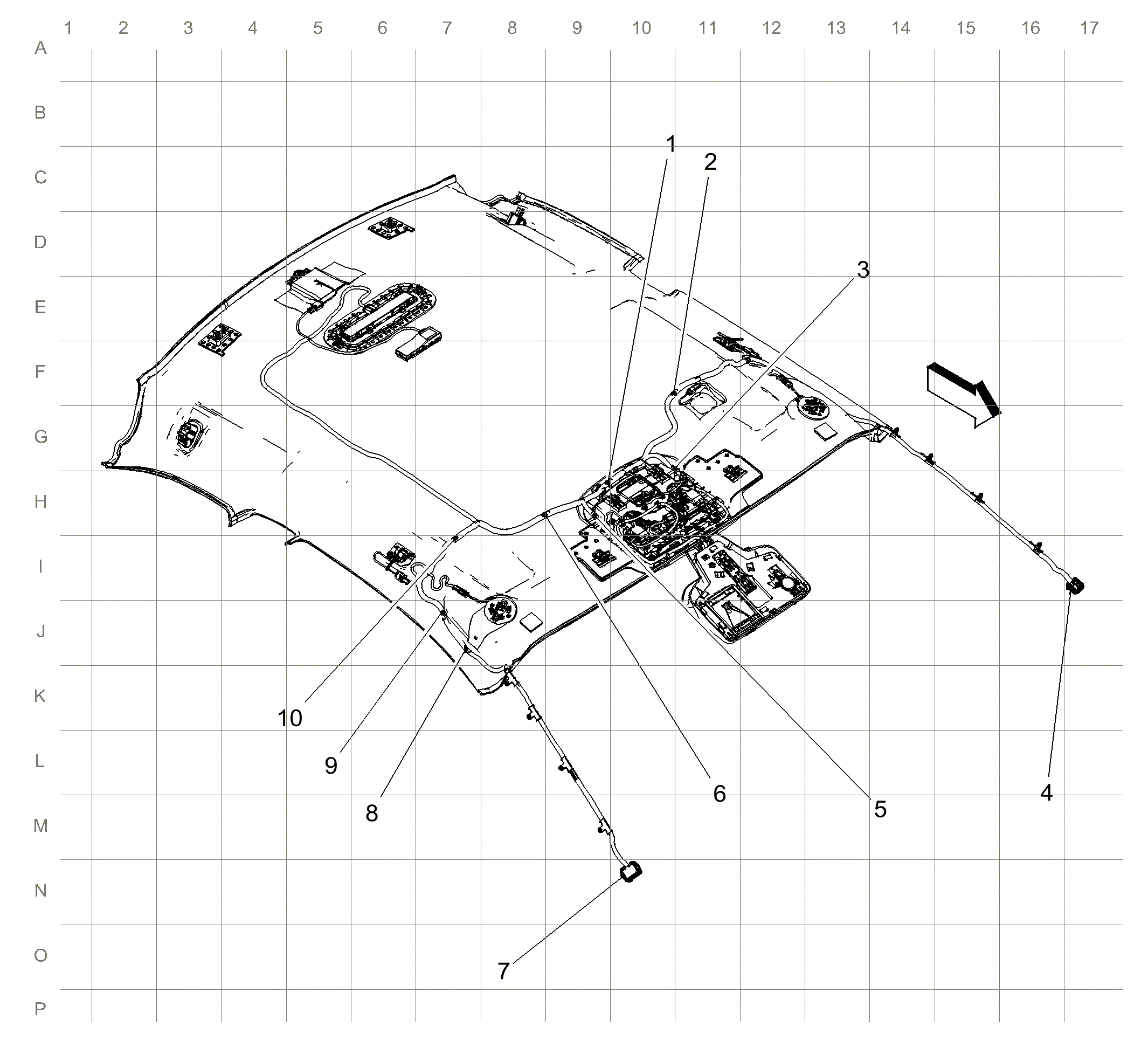

Fig 1: Headliner Harness Routing
GM3617107Courtesy of GENERAL MOTORS COMPANY
Items
1:  J350
2:  J315
3:  J356
4:  X326 X326 Headliner Harness to Instrument Panel Harness
5:  J351
6:  J314
7:  X325 X325 Headliner Harness to Instrument Panel Harness
8:  J354
9:  J353
10:  J352
