Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams
>>
Schematic and Wiring Harness Routing Diagrams
>>
Wiring Harness Routing Views
>>
Front Fascia Harness Routing
Front Fascia Harness Routing

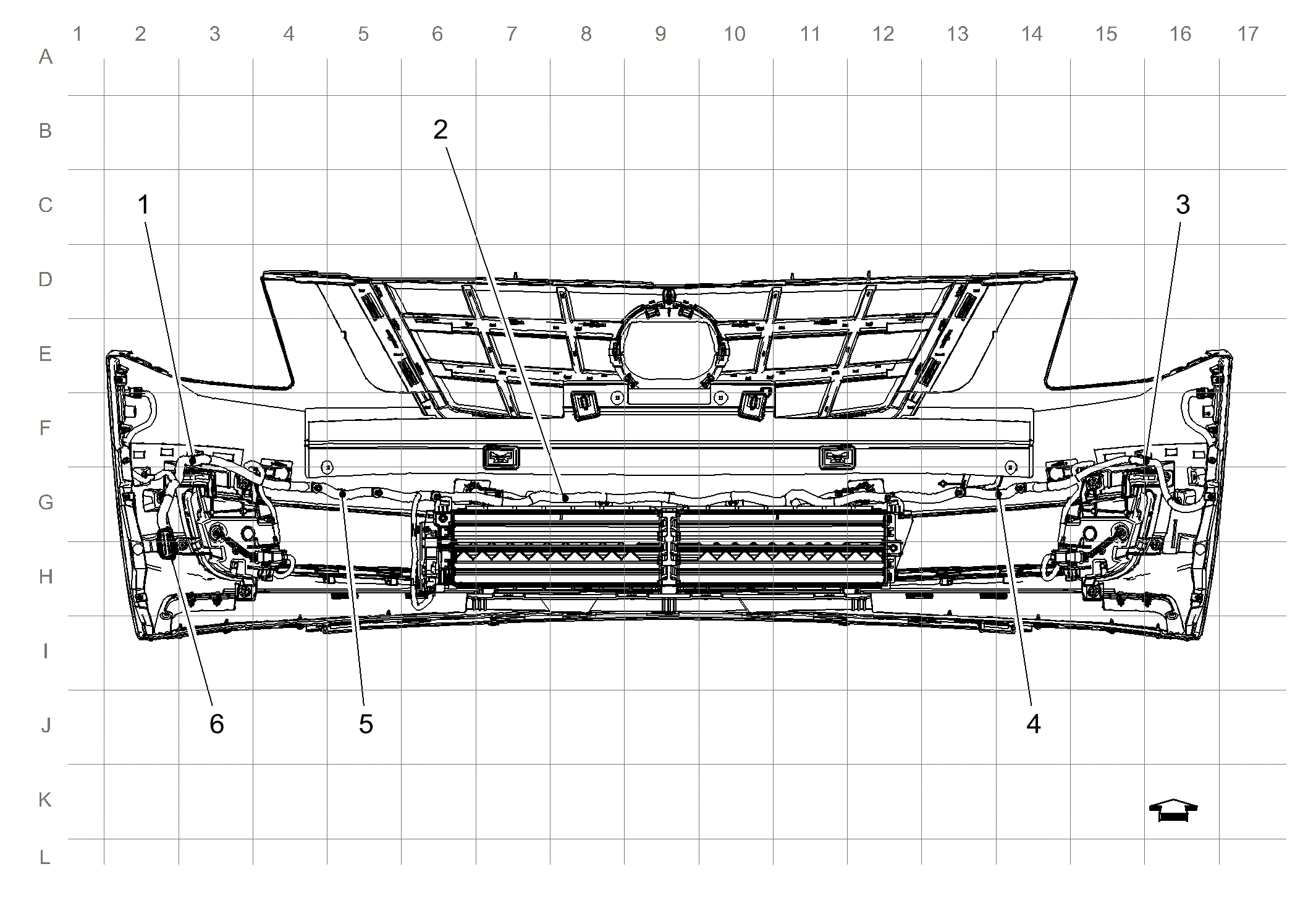

Fig 1: Front Fascia Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1:
J116
2:
J101
3:
J117
4:
J102
5:
J100
6:
X100
X100 Forward Lamp Harness to Front Fascia Harness
