Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams
>>
Schematic and Wiring Harness Routing Diagrams
>>
Wiring Harness Routing Views
>>
Engine Right Rear Harness Routing
Engine Right Rear Harness Routing

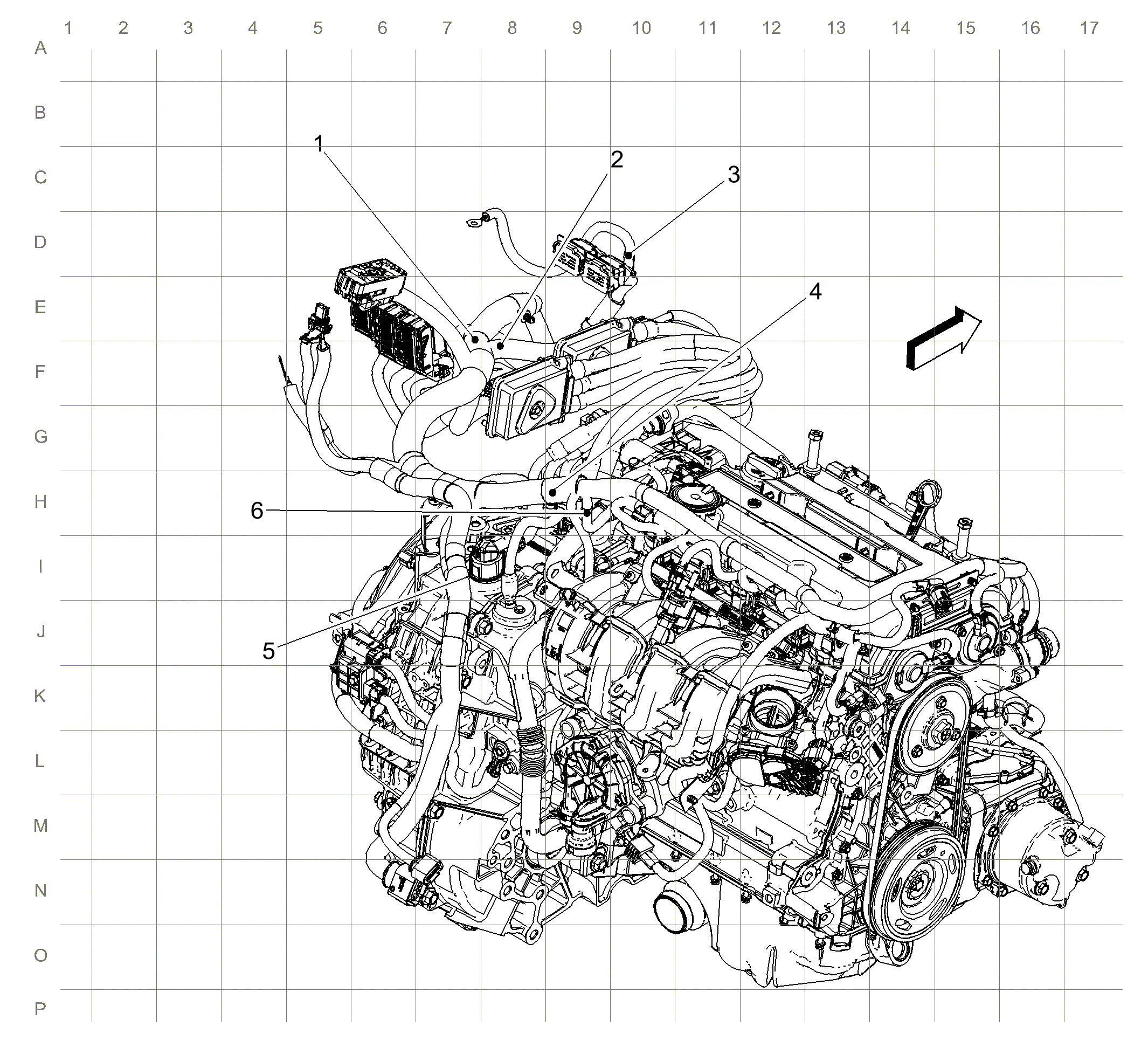

Fig 1: Engine Right Rear Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1:
J128
2:
J129
3:
J130
4:
J125
5:
X175
X175 Engine Harness to Transmission Harness
6:
J131
