Driver Door Harness Routing

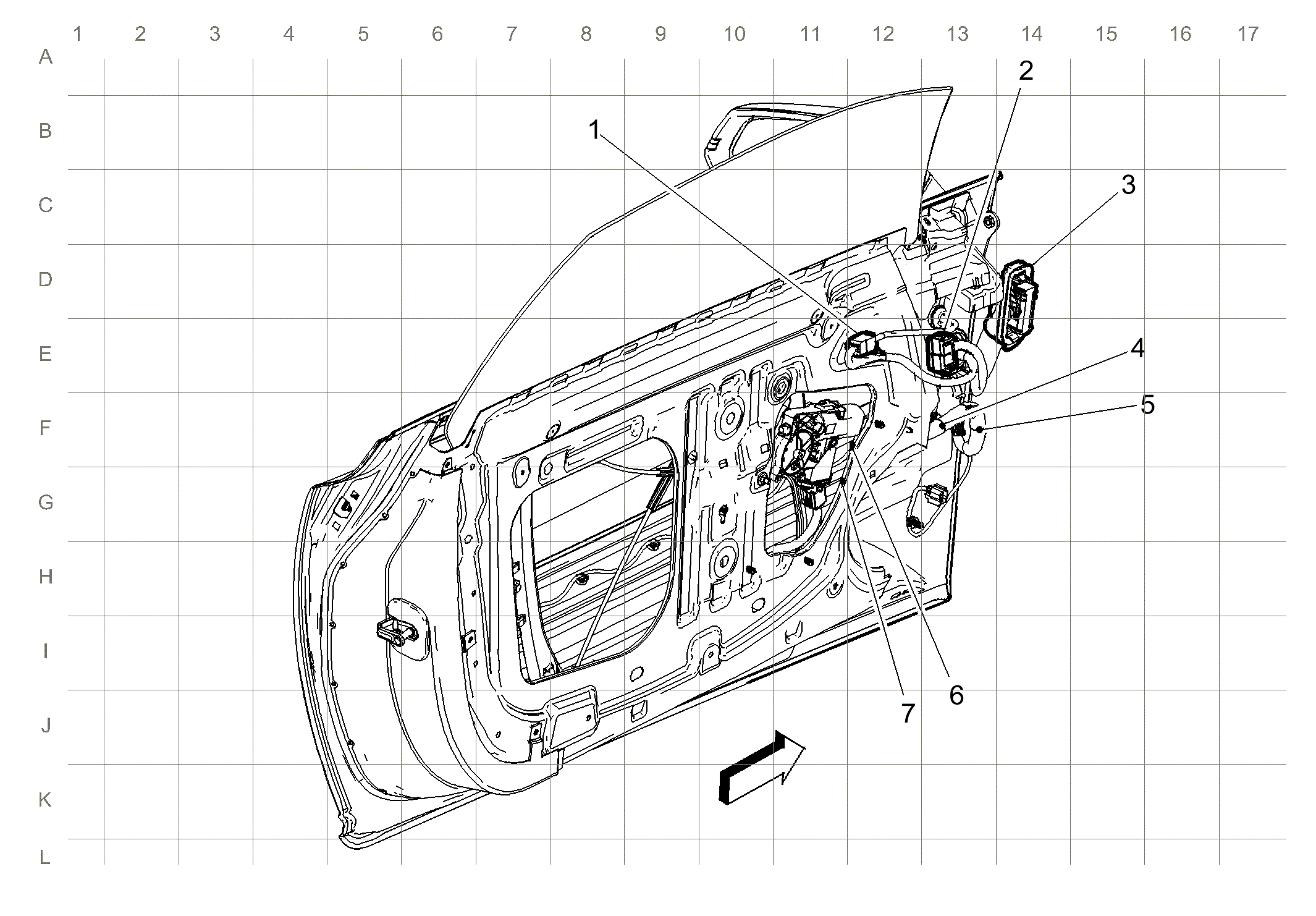

Fig 1: Driver Door Harness Routing
GM3617101Courtesy of GENERAL MOTORS COMPANY
Items
1:  X510 X510 Outside Rearview Mirror - Driver to Driver Door Harness
2:  X505 X505 Driver Door Harness to Driver Door Trim Harness
3:  X500 X500 Driver Door Harness to Body Harness
4:  J513
5:  J514
6:  J515
7:  J516
