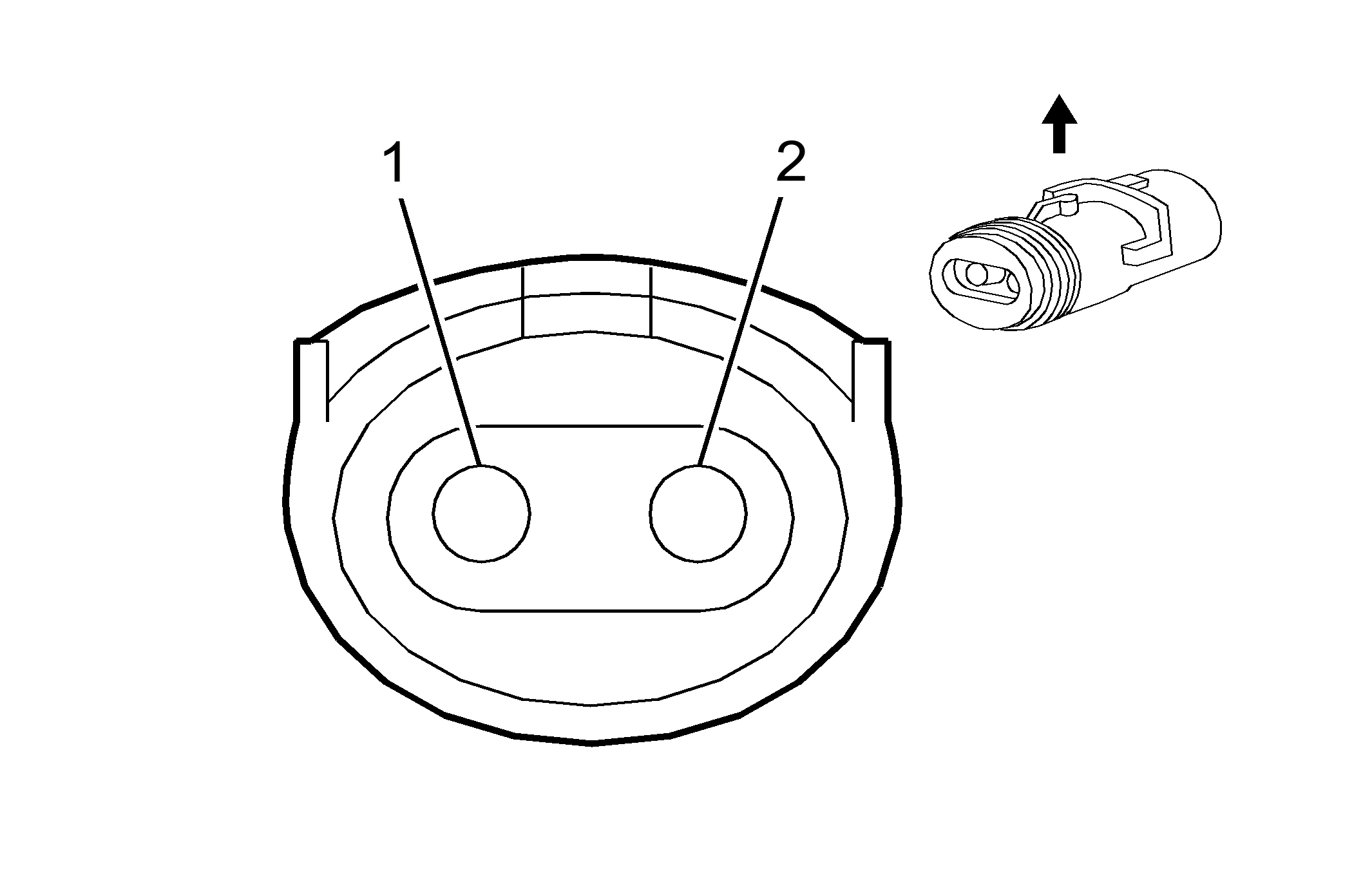

Q37LF Shock Absorber Actuator - Left Front
|
|
Connector Part Information
- Harness Type:
- OEM Connector: 24466109
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Pending |
Pending |
Pending |
Not Available |
Not Available |
Not Available |
Not Available |
Q37LF Shock Absorber Actuator - Left Front
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN |
1107 |
Left Front Damping Servo Supply Voltage |
I |
- |
| 2 |
0.75 |
BK |
1113 |
Left Front Damping Servo Control |
I |
- |
