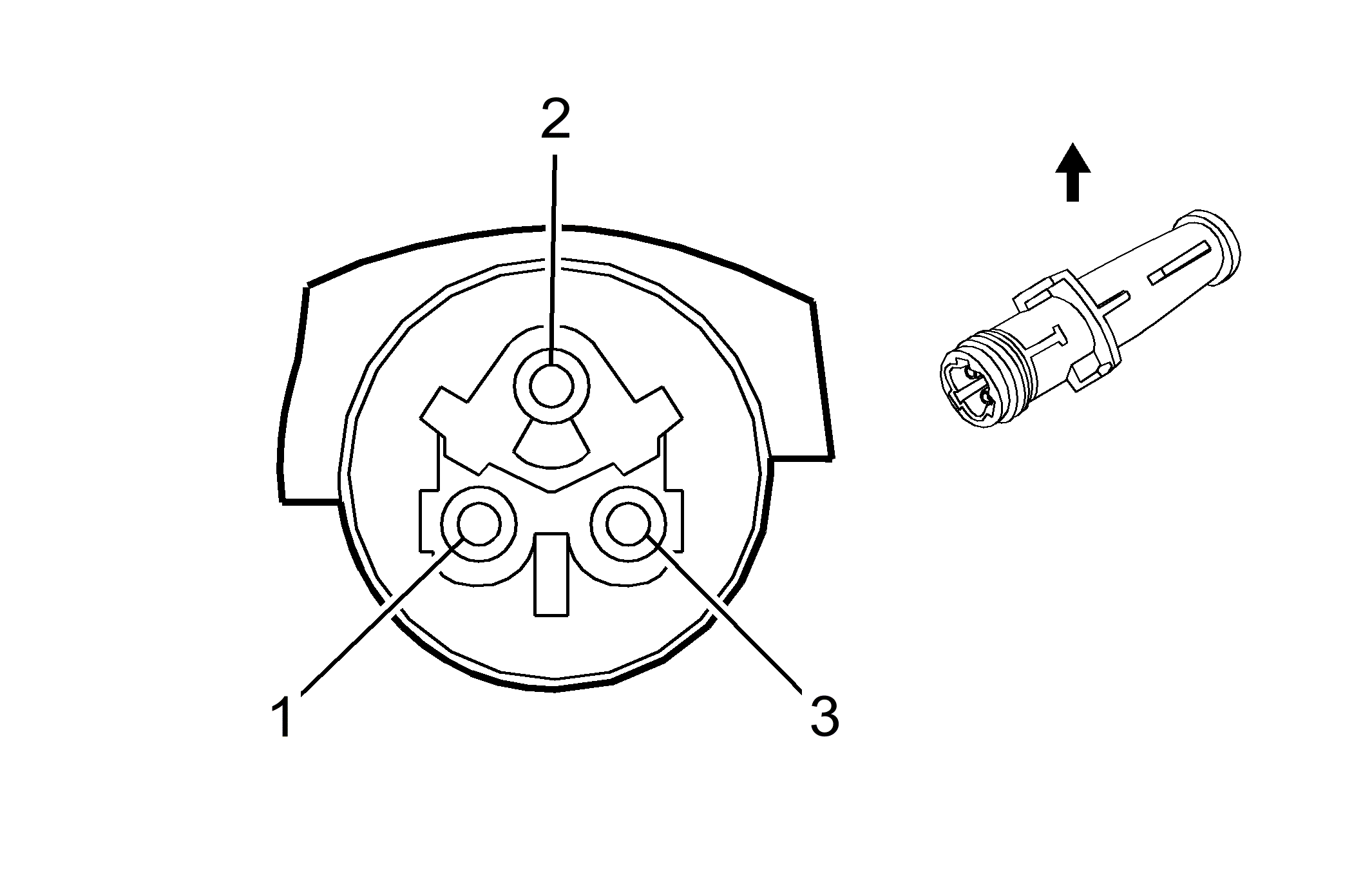

B161LF Vertical Suspension Acceleration Sensor - Left Front
|
|
Connector Part Information
- Harness Type:
- OEM Connector: 24466110
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F Sealed (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Pending |
Pending |
Pending |
Not Available |
Not Available |
Not Available |
Not Available |
B161LF Vertical Suspension Acceleration Sensor - Left Front
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD |
1817 |
Left Front Wheel Accelerometer Voltage Reference |
I |
- |
| 2 |
0.5 |
YE |
1100 |
Left Front Wheel Damping Accelerometer Signal |
I |
- |
| 3 |
0.5 |
BK |
1099 |
Left Front Wheel Damping Accelerometer Low Reference |
I |
- |
