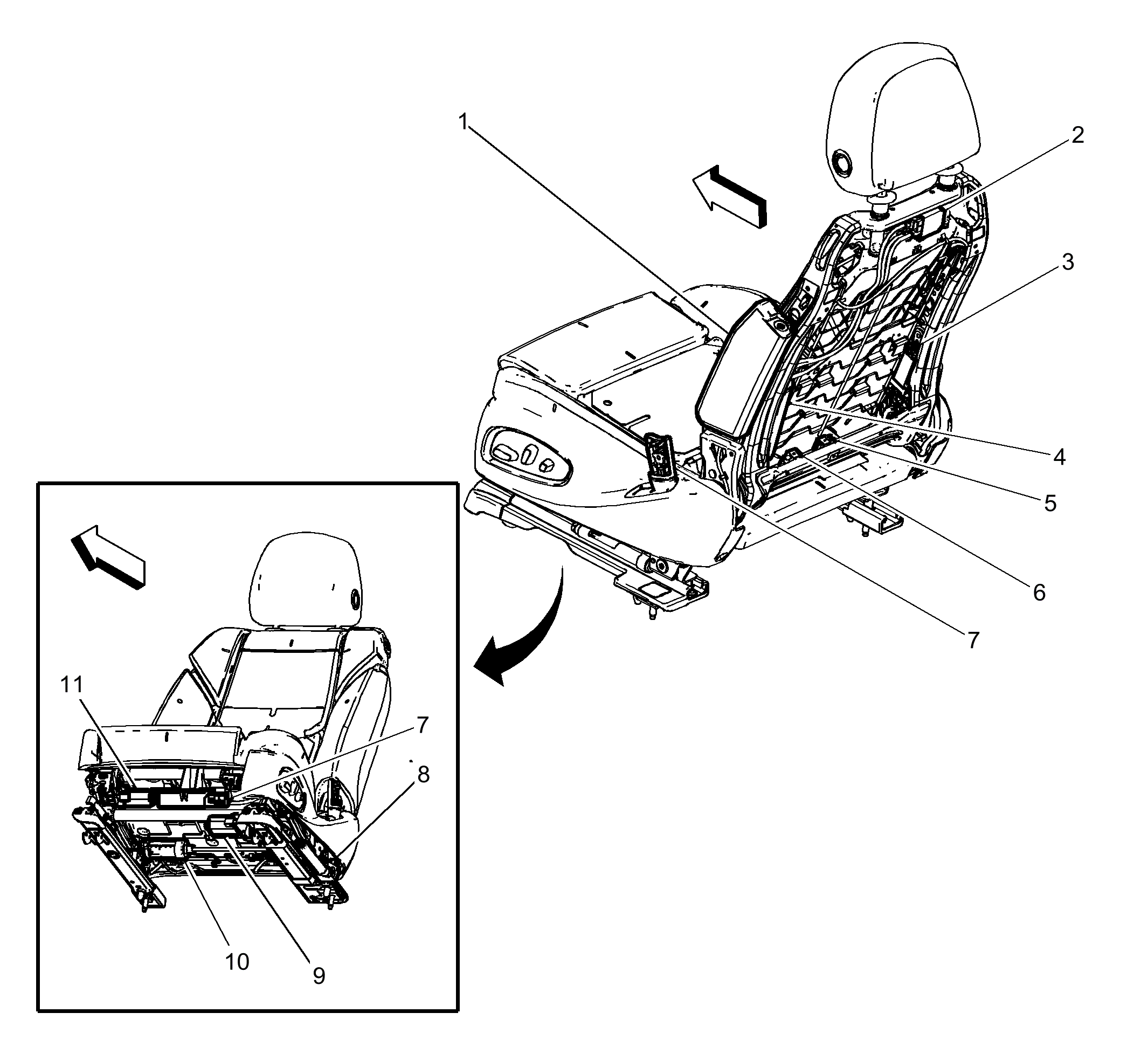

Driver Seat Components (1 of 2)

Items
1: F106LF Seat Side Air Bag - Left Front F106LF Seat Air Bag - Left Front
2: Q51D Seat Lumbar Support Valve Assembly - Driver Q51D Seat Lumbar Support Valve Assembly - Driver
3: M56D Seat Recline Motor - Driver M56D Seat Recline Motor - Driver
4: G31D Seat Lumbar/Bolster Pump - Driver G31D Seat Lumbar/Bolster Pump - Driver
7: K40D Seat Memory Control Module - Driver K40D Seat Memory Control Module - Driver X1 K40D Seat Memory Control Module - Driver X2 K40D Seat Memory Control Module - Driver X3 K40D Seat Memory Control Module - Driver X4 K40D Seat Memory Control Module - Driver X5 K40D Seat Memory Control Module - Driver X6
8: F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver
9: M55D Seat Rear Vertical Motor - Driver M55D Seat Rear Vertical Motor - Driver
10: M51D Seat Horizontal Motor - Driver M51D Seat Horizontal Motor - Driver
11: B62D Seat Position Sensor - Driver B62D Seat Position Sensor - Driver
12: M50D Seat Front Vertical Motor - Driver M50D Seat Front Vertical Motor - Driver

Fig 1: Driver Seat Components (1 of 2)

Courtesy of GENERAL MOTORS COMPANY
