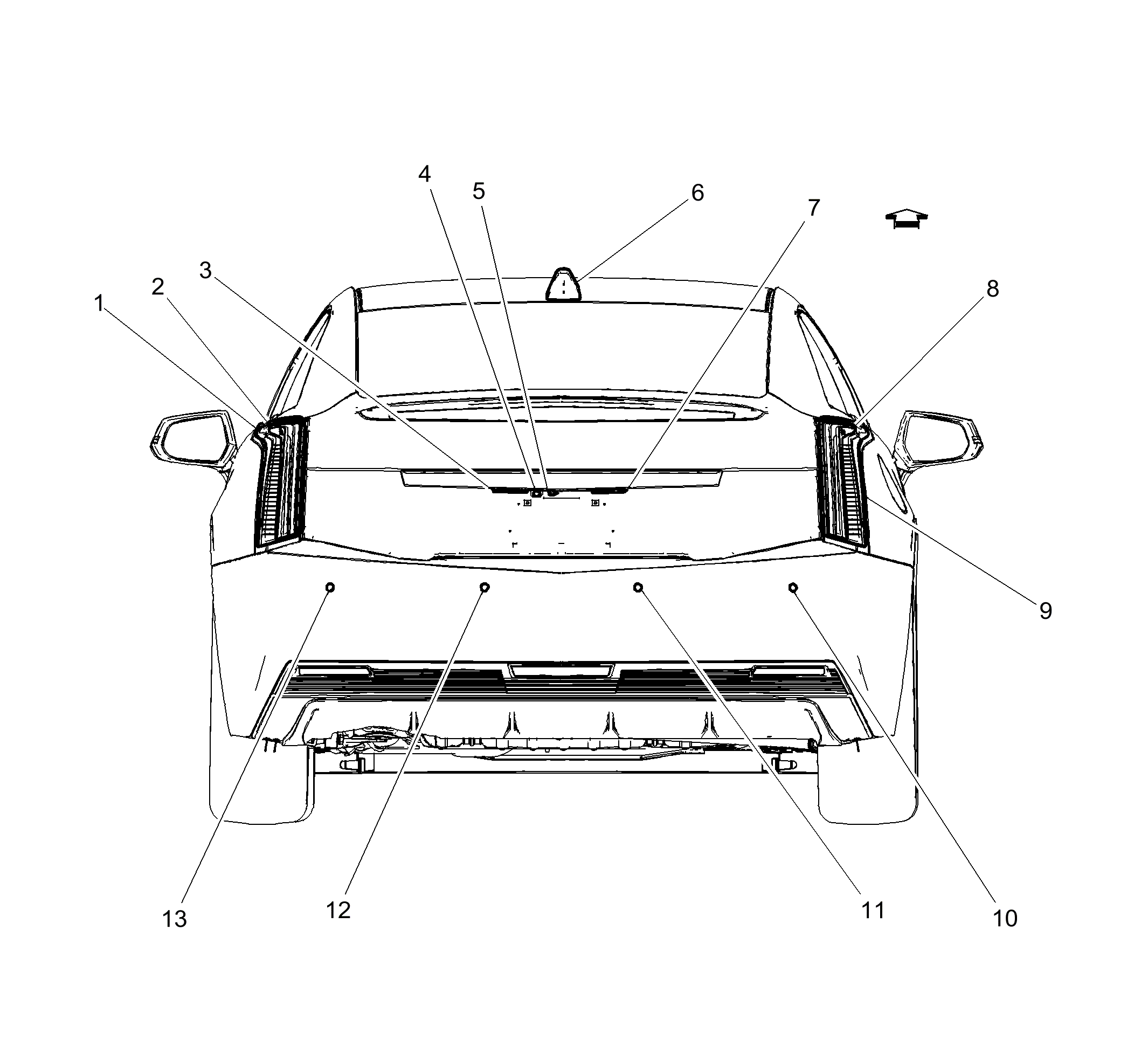

Rear of Vehicle Components
Rear of Vehicle Components
| Items |
|---|
| 1: E42L Tail Lamp Assembly - Left E42L Tail Lamp Assembly - Left |
| 2: E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front |
| 3: E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 4: B87 Rearview Camera B87 Rearview Camera |
| 5: S58A Rear Compartment Lid Unlatch Switch - Exterior S58A Rear Compartment Lid Unlatch Switch - Exterior |
| 6: T4G Cellular Phone, Navigation, and Digital Radio Antenna T4G Cellular Phone, Navigation, and Digital Radio Anttena |
| 7: E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 8: E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front |
| 9: E42R Tail Lamp Assembly - Right E42R Tail Lamp Assembly - Right |
| 10: B78H Rear Object Sensor - Right Outer B78H Rear Object Sensor - Right Outer |
| 11: B78F Rear Object Sensor - Right Middle B78F Rear Object Sensor - Right Middle |
| 13: B78E Rear Object Sensor - Left Middle B78E Rear Object Sensor - Left Middle |
| 14: B78G Rear Object Sensor - Left Outer B78G Rear Object Sensor - Left Outer |
