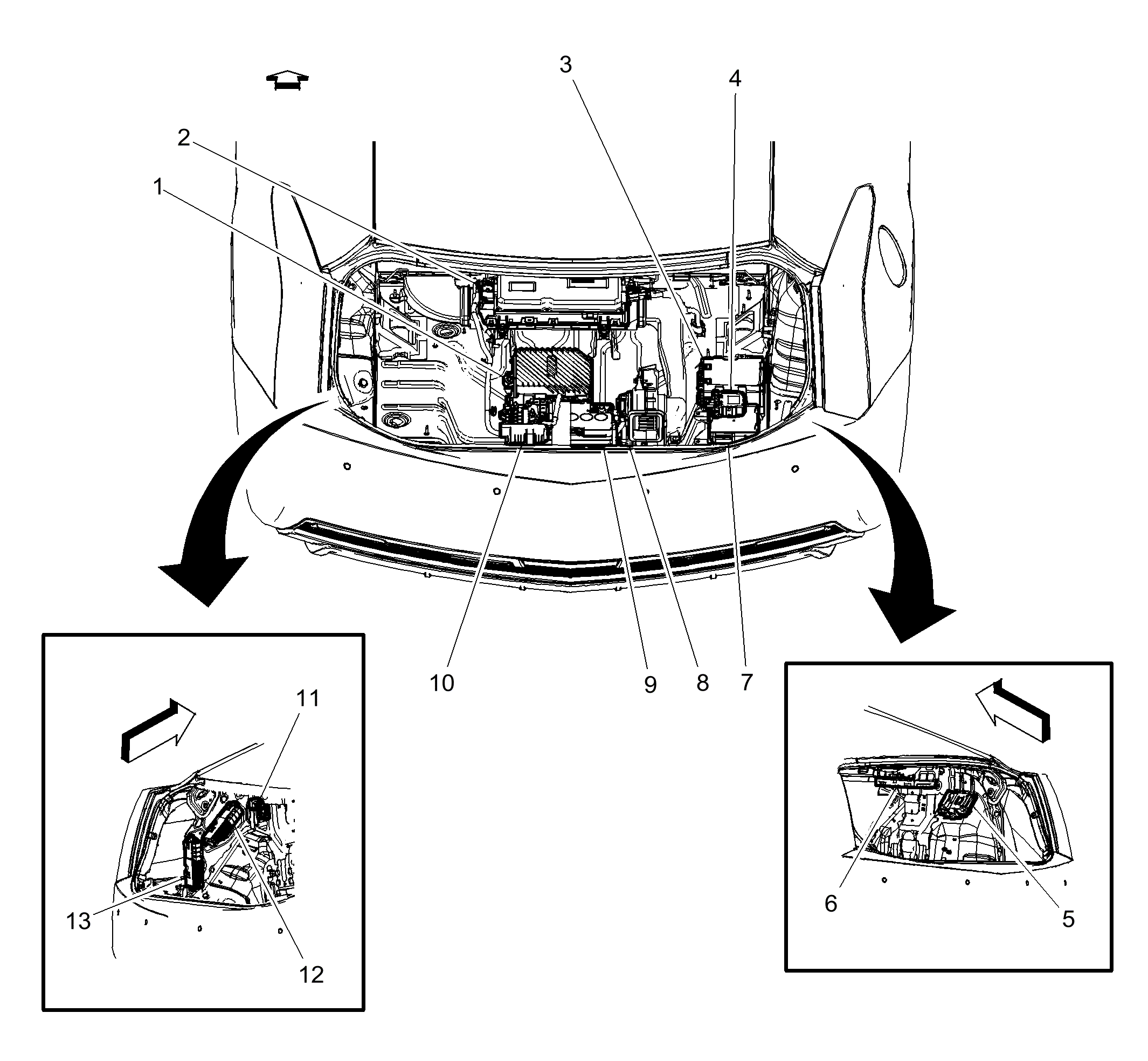

Luggage Compartment Components (2 of 2)
Luggage Compartment Components (2 of 2)
| Items |
|---|
| 1: T3 Audio Amplifier T3 Audio Amplifier X1T3 Audio Amplifier X2T3 Audio Amplifier X3T3 Audio Amplifier X4 |
| 2: K1 14V Power Module K1 14V Power Module X1K1 14V Power Module X2K1 14V Power Module X3K1 14V Power Module X4 |
| 3: A11 Radio A11 Radio x1A11 Radio x2A11 Radio x4A11 Radio x6 |
| 5: K27 Fuel Pump Control Module |
| 6: K114B Hybrid/EV Powertrain Control Module 2 K114B Hybrid/EV Powertrain Control Module 2 X2 |
| 7: K19 Suspension Control Module K19 Suspension Control Module |
| 8: G38 14V Power Module Cooling Fan G38 14V Power Module Cooling Fan |
| 9: C1 Battery |
| 10: X50D Fuse Block - Battery X50D Fuse Block - Battery X1X50D Fuse Block - Battery X2X50D Fuse Block - Battery X3X50D Fuse Block - Battery X5X50D Fuse Block - Battery X6 |
| 12: X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body Wire Entry (Fuses)X53A Fuse Block - Rear Body Wire Entry (Relays) |
| 13: X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body Wire Entry (Fuses)X53A Fuse Block - Rear Body Wire Entry (Relays) |
