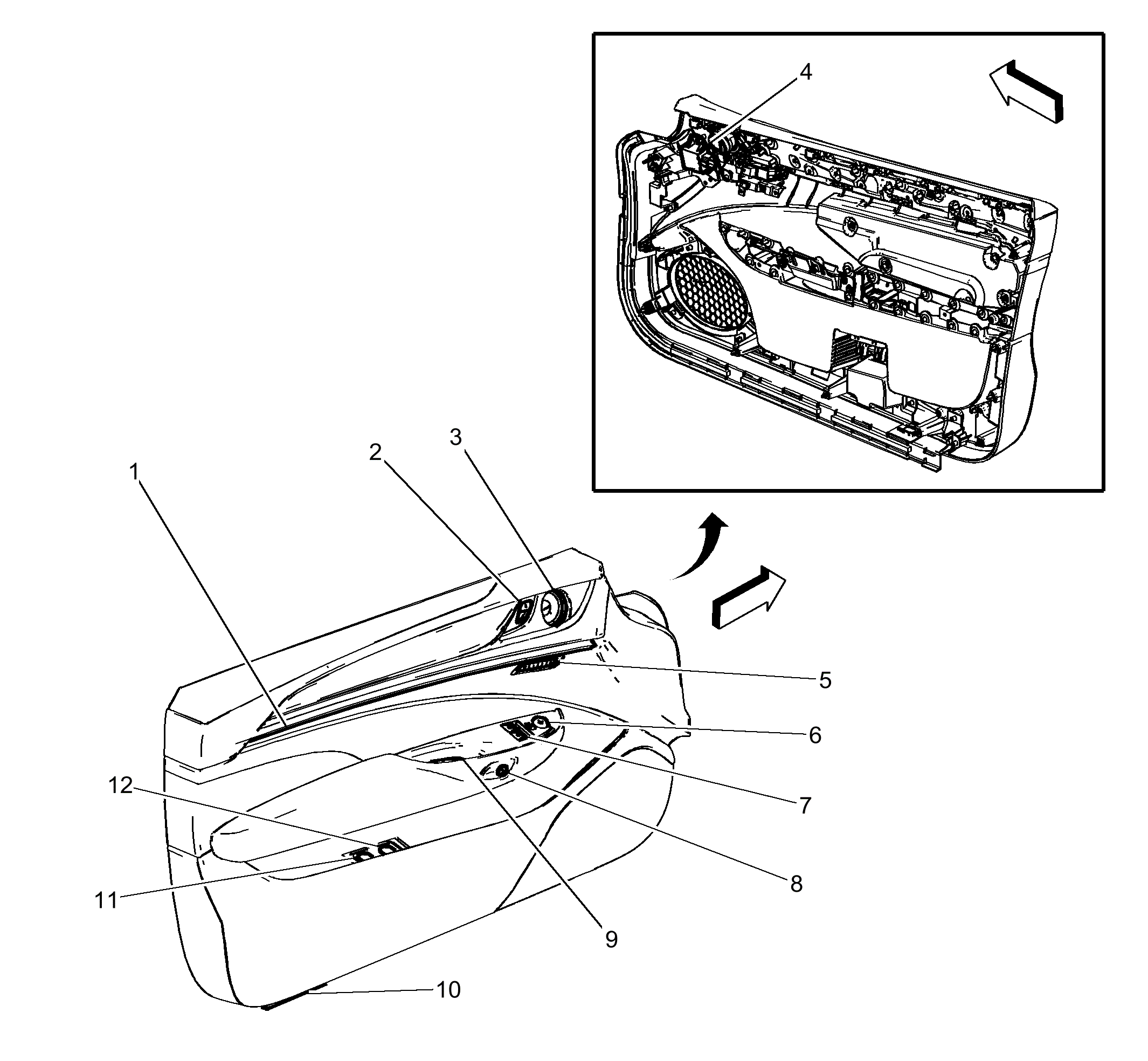

Driver Door Trim Panel Components
Driver Door Trim Panel Components
| Items |
|---|
| 1: E1D Accent Lamp - Driver Door E1D Accent Lamp - Driver Door |
| 2: S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver |
| 3: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter |
| 4: K96D Mirror Control Module - Driver K96D Mirror Control Module - Driver |
| 5: S47D Seat Memory Switch - Driver S47D Seat Memory Switch - Driver |
| 6: S52 Outside Rearview Mirror Switch S52 Outside Rearview Mirror Switch |
| 7: S79D Window Switch - Driver S79D Window Switch - Driver |
| 8: B27E Door Handle Switch - Driver Interior B27E Door Handle Switch - Driver Interior |
| 9: E55D Flood Lamp - Driver Door Pocket E55D Flood Lamp - Driver Door Pocket |
| 10: E8D Door Courtesy Lamp - Driver E8D Door Courtesy Lamp - Driver |
| 11: S58B Rear Compartment Lid Unlatch Switch - Interior S58B Rear Compartment Lid Unlatch Switch - Interior |
| 12: S117 Refuel Request Switch S117 Refuel Request Switch |
