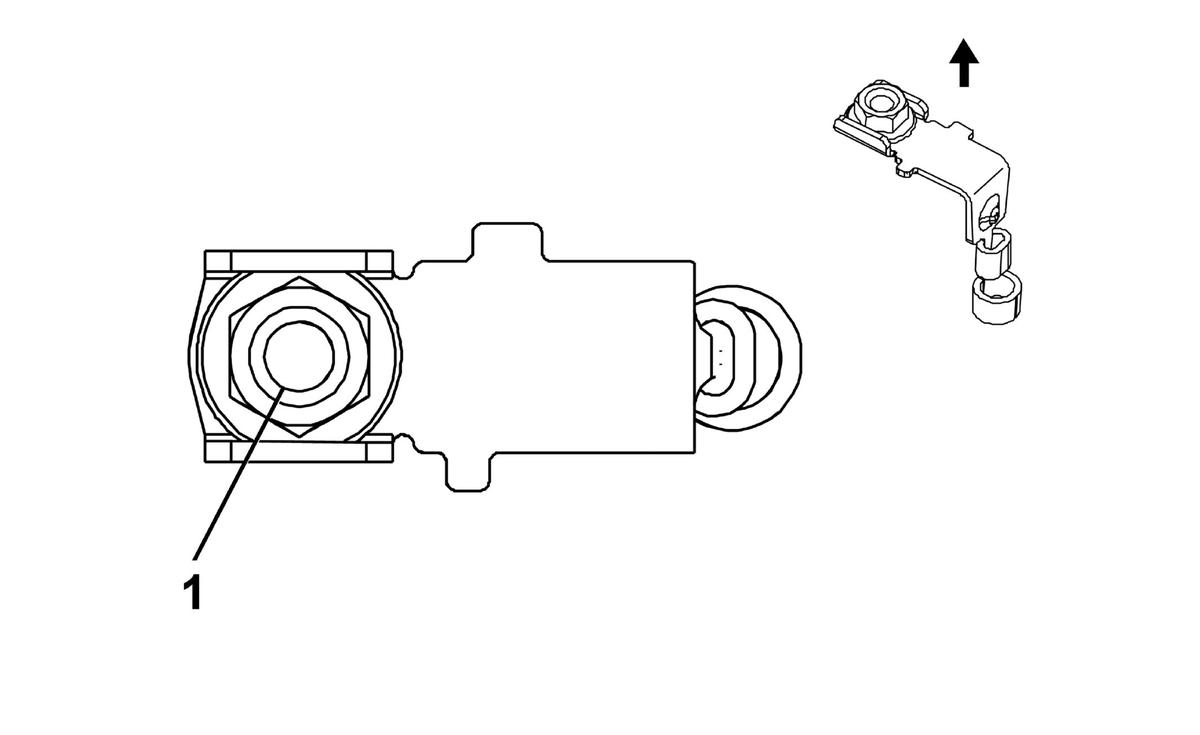

X50B Fuse Block - Underhood Auxiliary X3
Courtesy of GENERAL MOTORS COMPANY X50B Fuse Block - Underhood Auxiliary X3
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| A |
10 |
RD/L-GN |
242 |
Battery Positive Voltage |
- |
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13605714
- Service Connector: Pending
- Description: 1-Way Ring
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - Pending
- Release Tool: No Tool Reqd
- Diagnostic Test Probe: No Tool Reqd
- Terminal/Tray: Pending
- Core/Insulation Crimp: Pending
|
