Rear Wheelhouse Liner Replacement (Right)

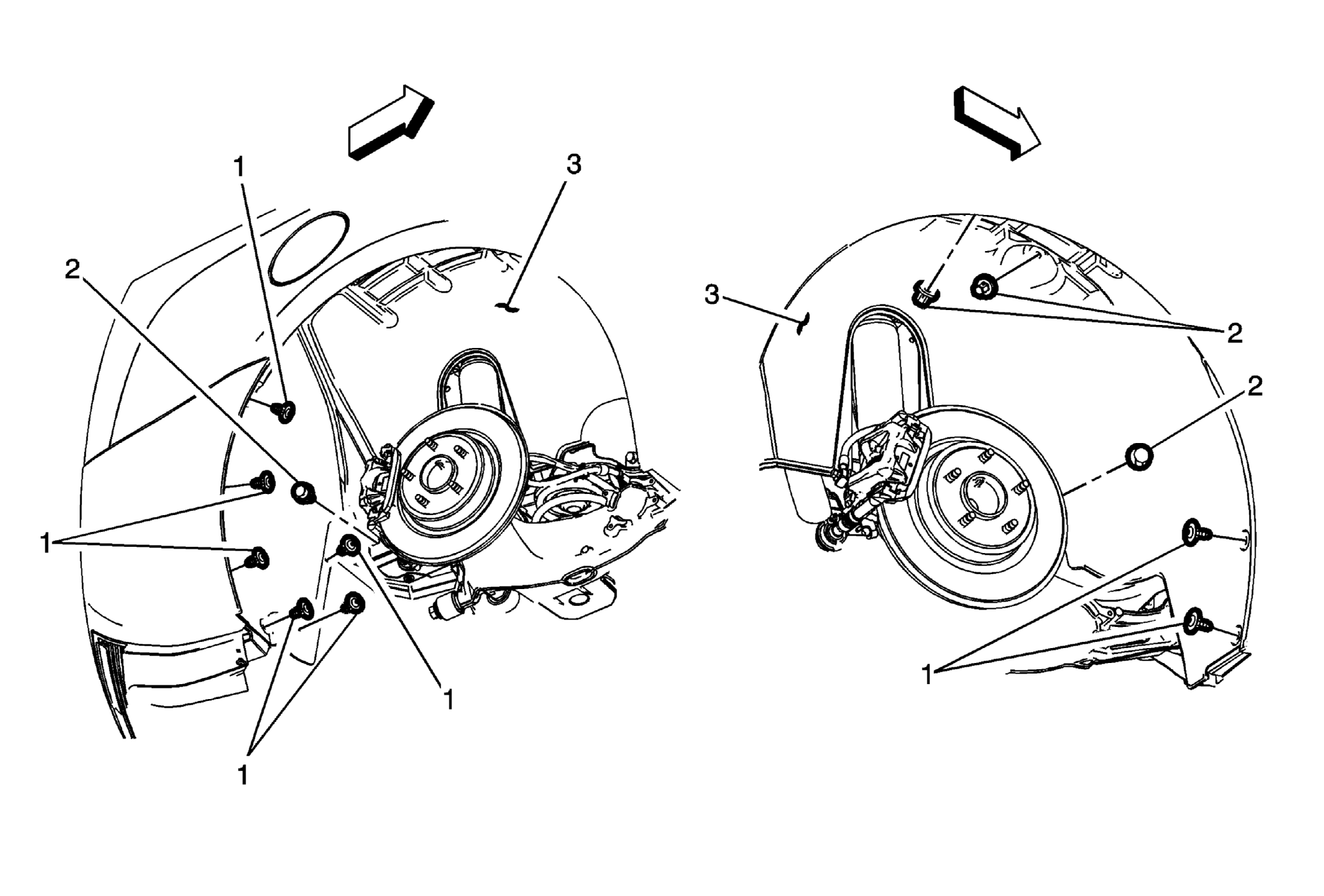

Fig 1: Rear Wheelhouse Liner (Right)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear wheel. Refer to Tire and Wheel Removal and Installation .
1	Rear Wheelhouse Liner Fasteners (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 2.5 (22 lb in)
2	Rear Wheelhouse Liner Plastic Retainers (Qty: 4)
3	Rear Wheelhouse Liner
