Rear Wheelhouse Liner Replacement (Left)

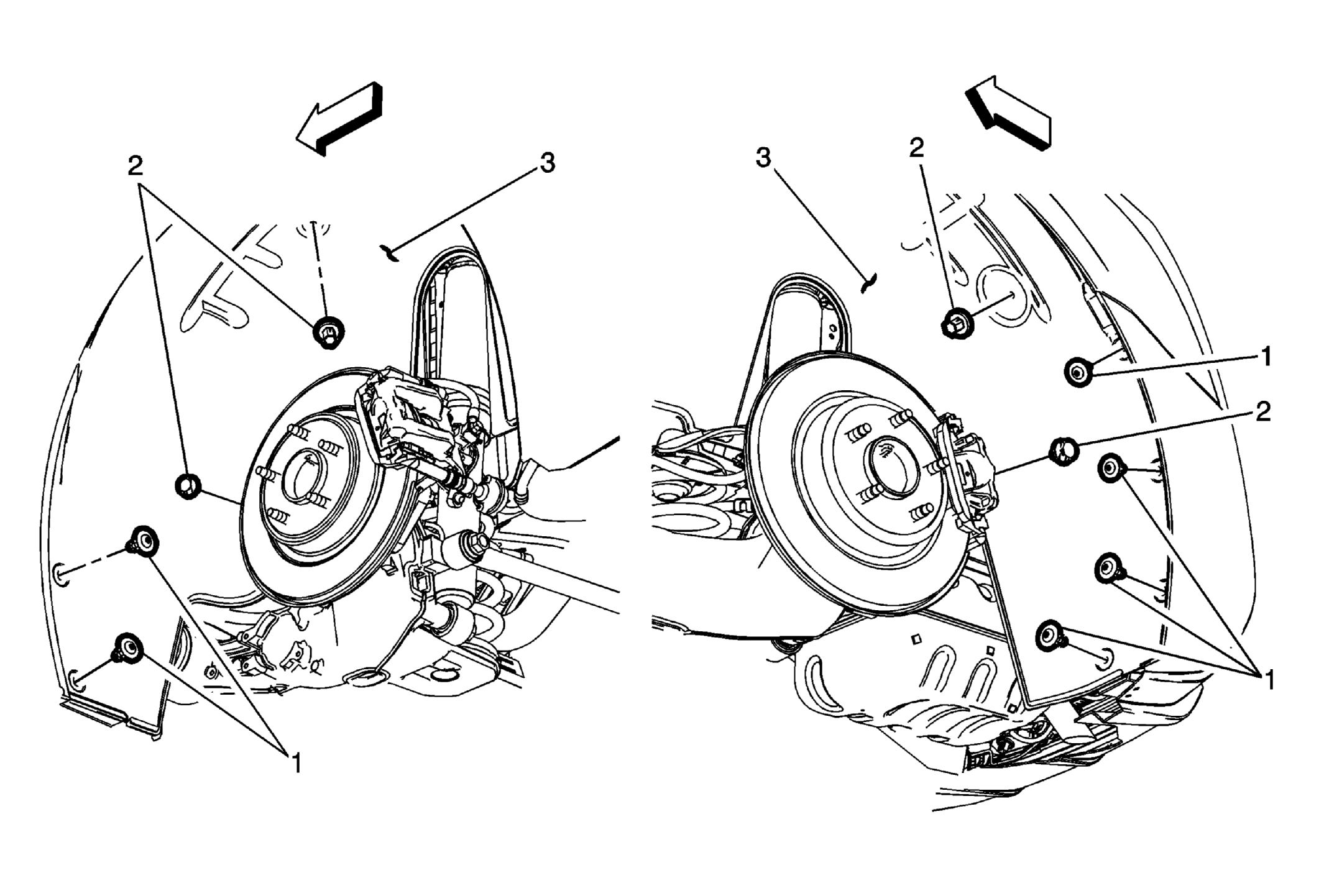

Fig 1: Rear Wheelhouse Liner (Left)
GM3610794Courtesy of GENERAL MOTORS COMPANY
Rear Wheelhouse Liner Replacement (Left)

Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear wheel. Refer to Tire and Wheel Removal and Installation .
1 Rear Wheelhouse Liner Fasteners (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 (22 lb in)
2 Rear Wheelhouse Liner Plastic Retainers (Qty: 4)
3 Rear Wheelhouse Liner
