Body Side Front Window Garnish Molding Replacement

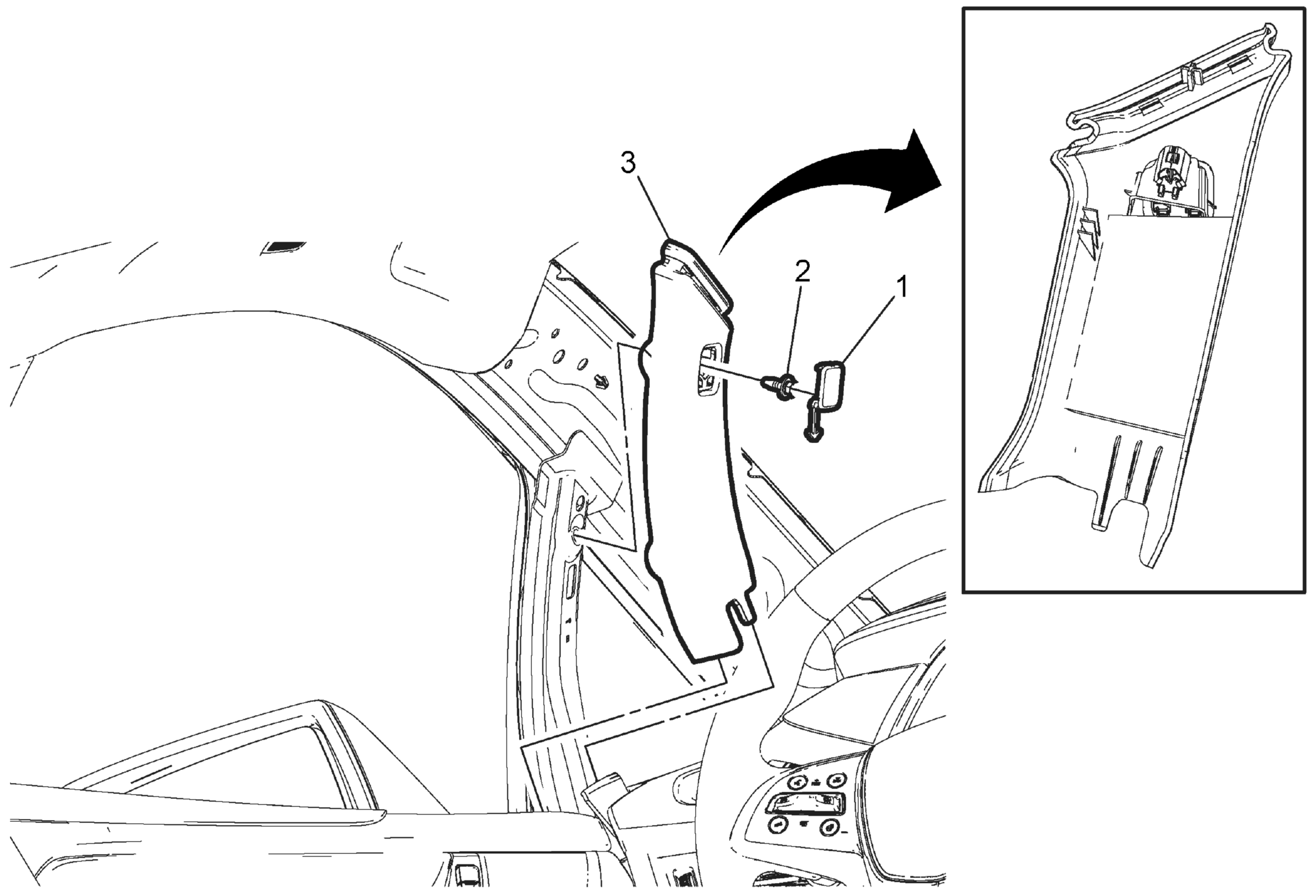

Fig 1: Body Side Front Window Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .
1	Center Pillar Upper Trim Panel Bolt Cap
2	Windshield Side Garnish Molding Retainer Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 (22 lb in)
3	Body Side Front Window Garnish Molding Assembly Procedure Tabs must be installed prior to retainer.
