Instrument Cluster Replacement

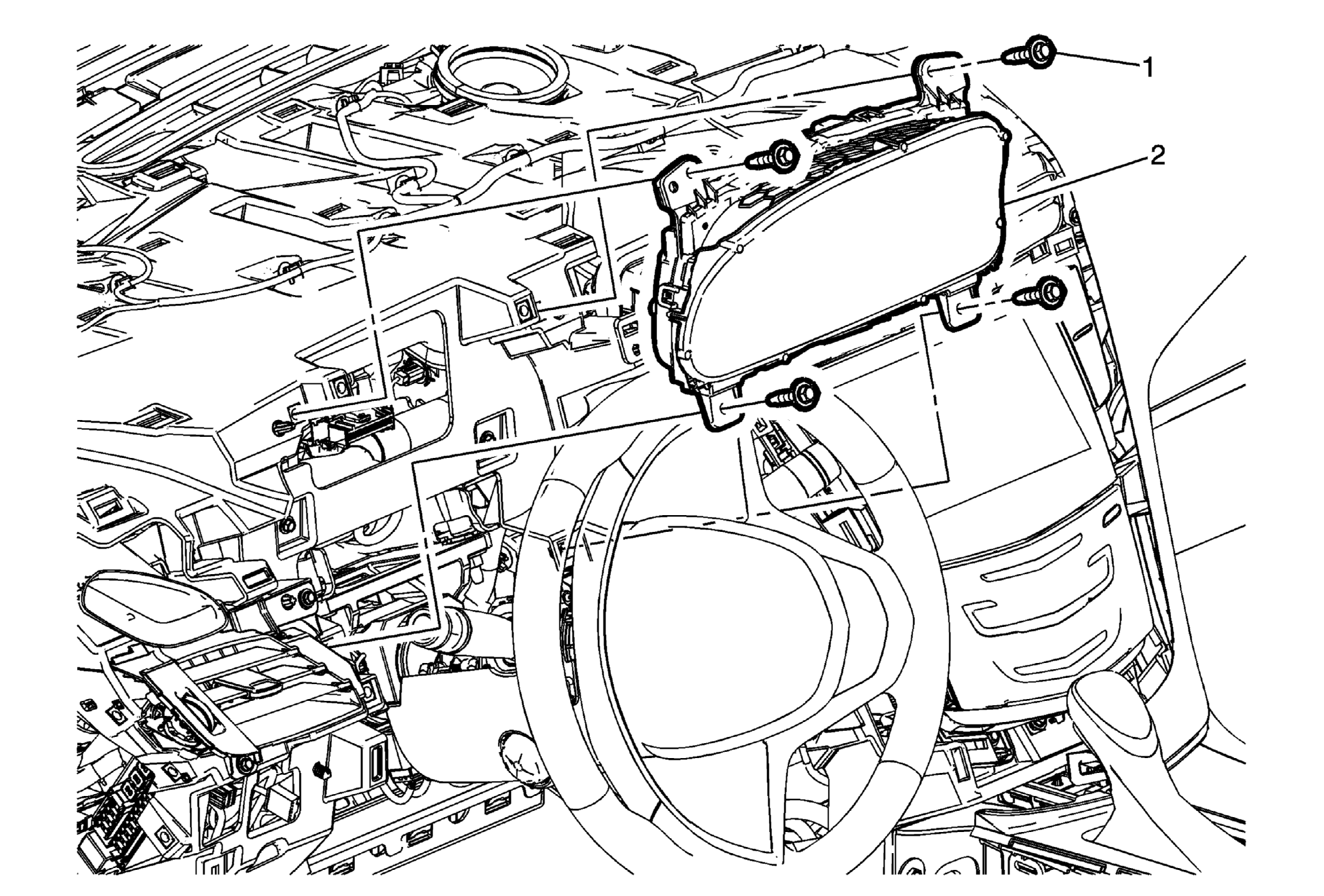

Fig 1: Instrument Cluster
GM3609799Courtesy of GENERAL MOTORS COMPANY
Instrument Cluster Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement .
1 Instrument Cluster Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 (22 lb in)
2 Instrument Cluster

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for programming and set up information.
