M8 Blower Motor
|
|

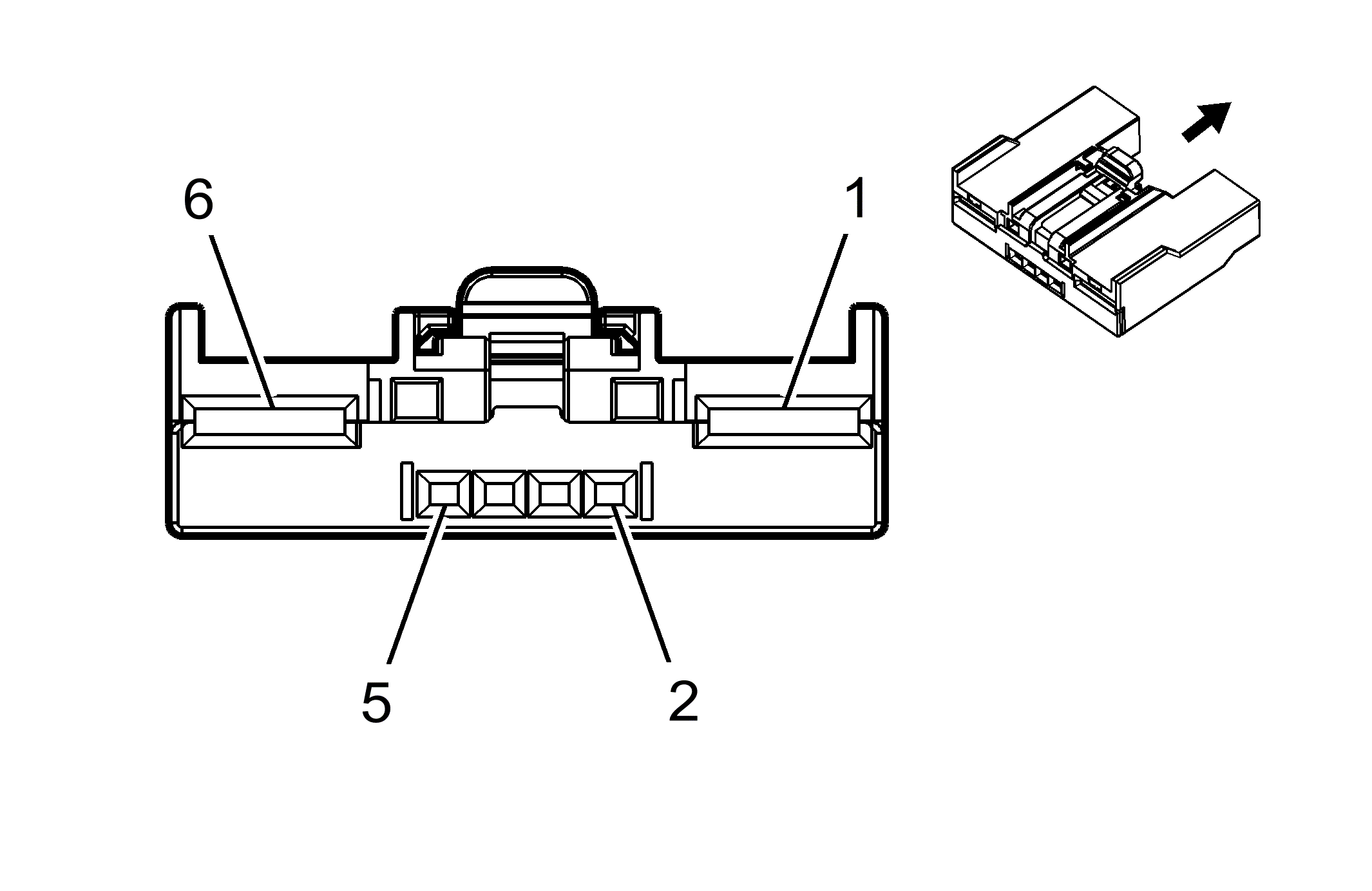

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13579146
- Service Connector: 19299711
- Description: 6-Way F Hybrid Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Connector Assemby - 19299711 |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
M8 Blower Motor
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
RD/VT |
542 |
Battery Positive Voltage |
I |
- |
| 2 |
0.5 |
L-BU/GY |
754 |
Blower Motor Speed Control |
I |
- |
| 3-5 |
- |
- |
- |
Not Occupied |
I |
- |
| 6 |
4 |
BK |
1850 |
Ground |
I |
- |
