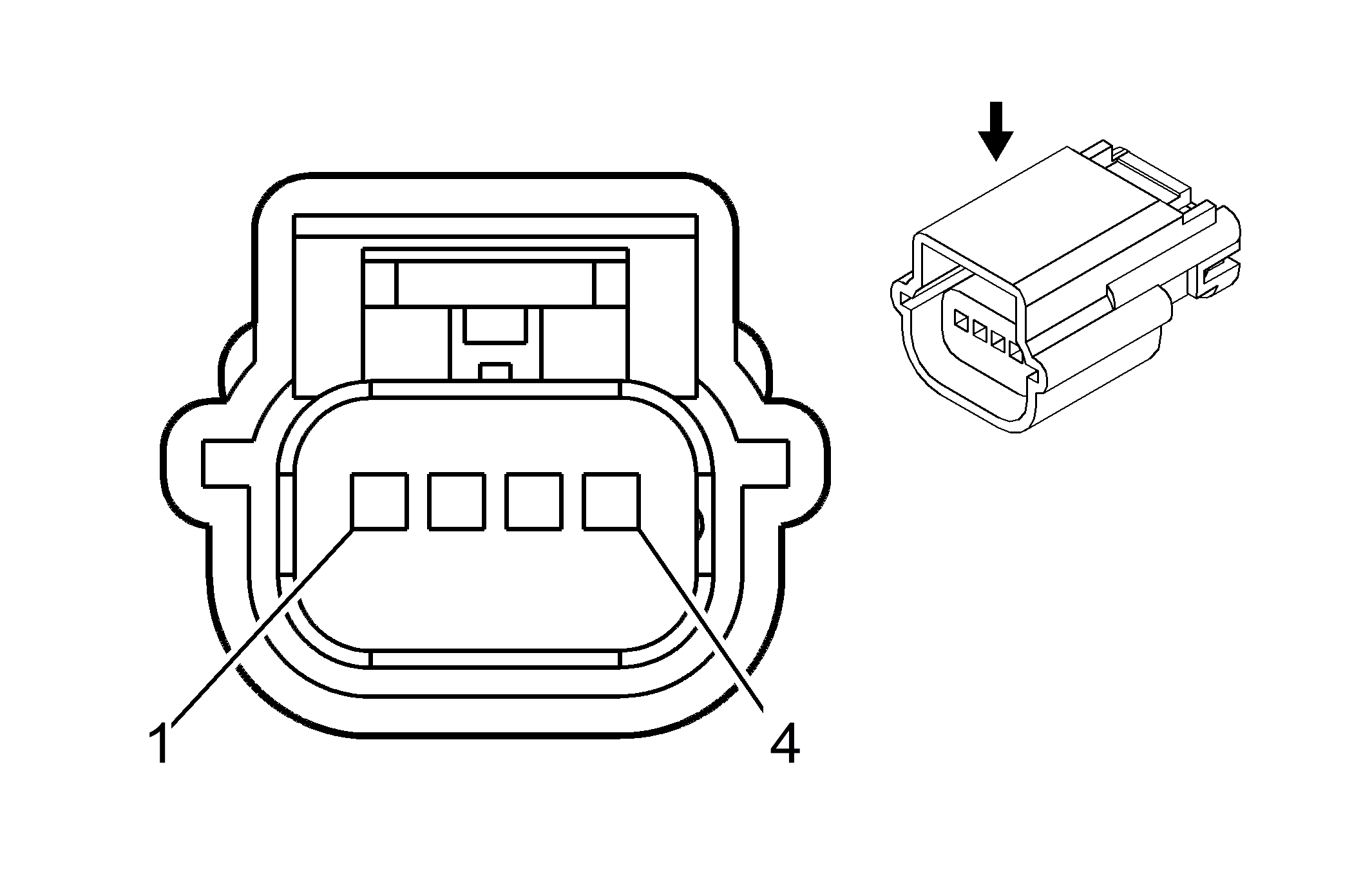

E42R Tail Lamp Assembly - Right
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 3148-01-002
- Service Connector: 19299696
- Description: 4-Way F 0.64 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
E42R Tail Lamp Assembly - Right
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
WH/YE |
7541 |
Right Rear Stop Lamp Supply Voltage |
I |
- |
| 3 |
0.5 |
BK |
550 |
Ground |
I |
- |
| 4 |
0.5 |
GY/BN |
309 |
Right Park Lamp Supply Voltage |
I |
- |
