Power, Ground, Serial Data and Fuel Level

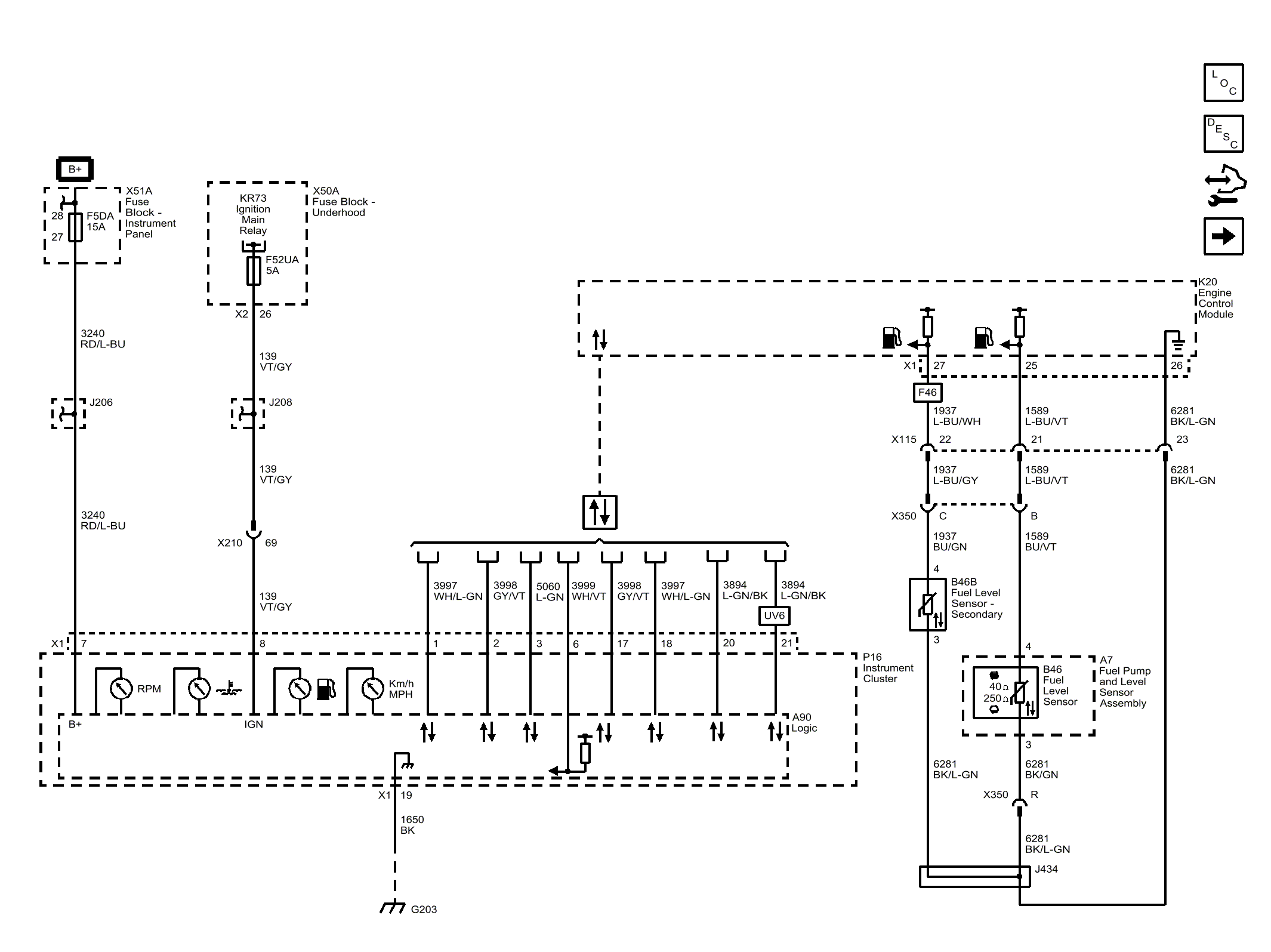

Fig 1: Power, Ground, Serial Data and Fuel Level Wiring Schematic

GM2770808

Courtesy of GENERAL MOTORS COMPANY
