Auxiliary Blower Motor Replacement

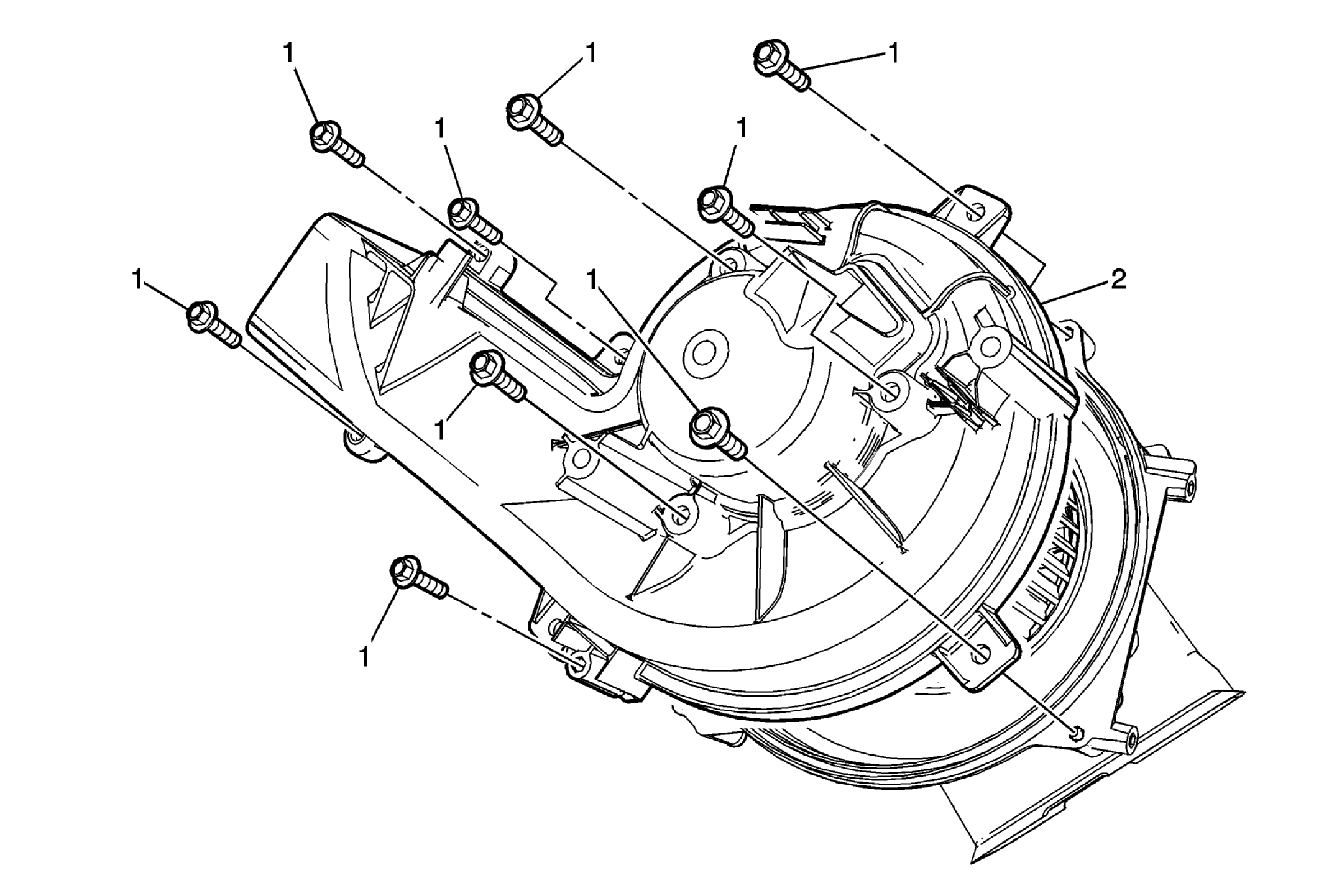

Fig 1: View Of Auxiliary Blower Motor & Mounting Bolts
GM2227133Courtesy of GENERAL MOTORS COMPANY
Auxiliary Blower Motor Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the Floor console . Refer to Front Floor Console Replacement .
  2. Disconnect all electrical connector.
  3. Remove front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement
  4. Remove the blower motor bracket fastener at bottom of blower assembly.
1 Auxiliary Blower Motor Fastener (Qty: 9)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (23 lb in)
2 Auxiliary Blower Motor
