Heater and Blower and Air Conditioning Control Module Replacement

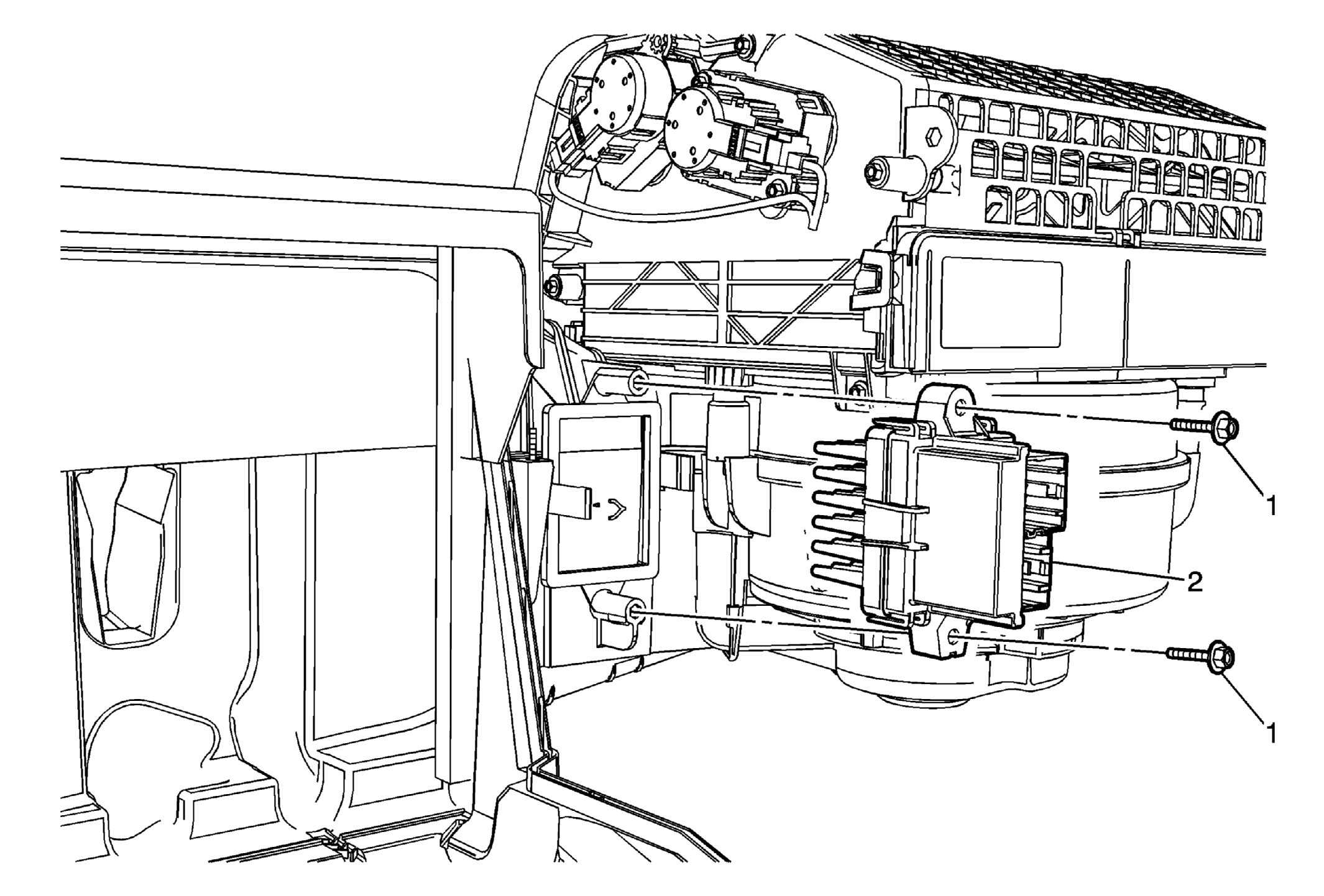

Fig 1: Identifying Heater, Blower & Air Conditioning Control Module & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment . Refer to Instrument Panel Compartment Replacement . Disconnect the heater and blower and air conditioning control module electrical connectors.
1	Heater and Blower and Air Conditioning Control Module Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Heater and Blower and Air Conditioning Control Module

Callout

Component Name

Preliminary Procedure

Remove the instrument panel compartment . Refer to Instrument Panel Compartment Replacement .
Disconnect the heater and blower and air conditioning control module electrical connectors.

Heater and Blower and Air Conditioning Control Module Screws (Qty: 2)

CAUTION:

Tighten
1.5 N.m (13 lb in)

Heater and Blower and Air Conditioning Control Module
