Sunroof Window Replacement - Rear

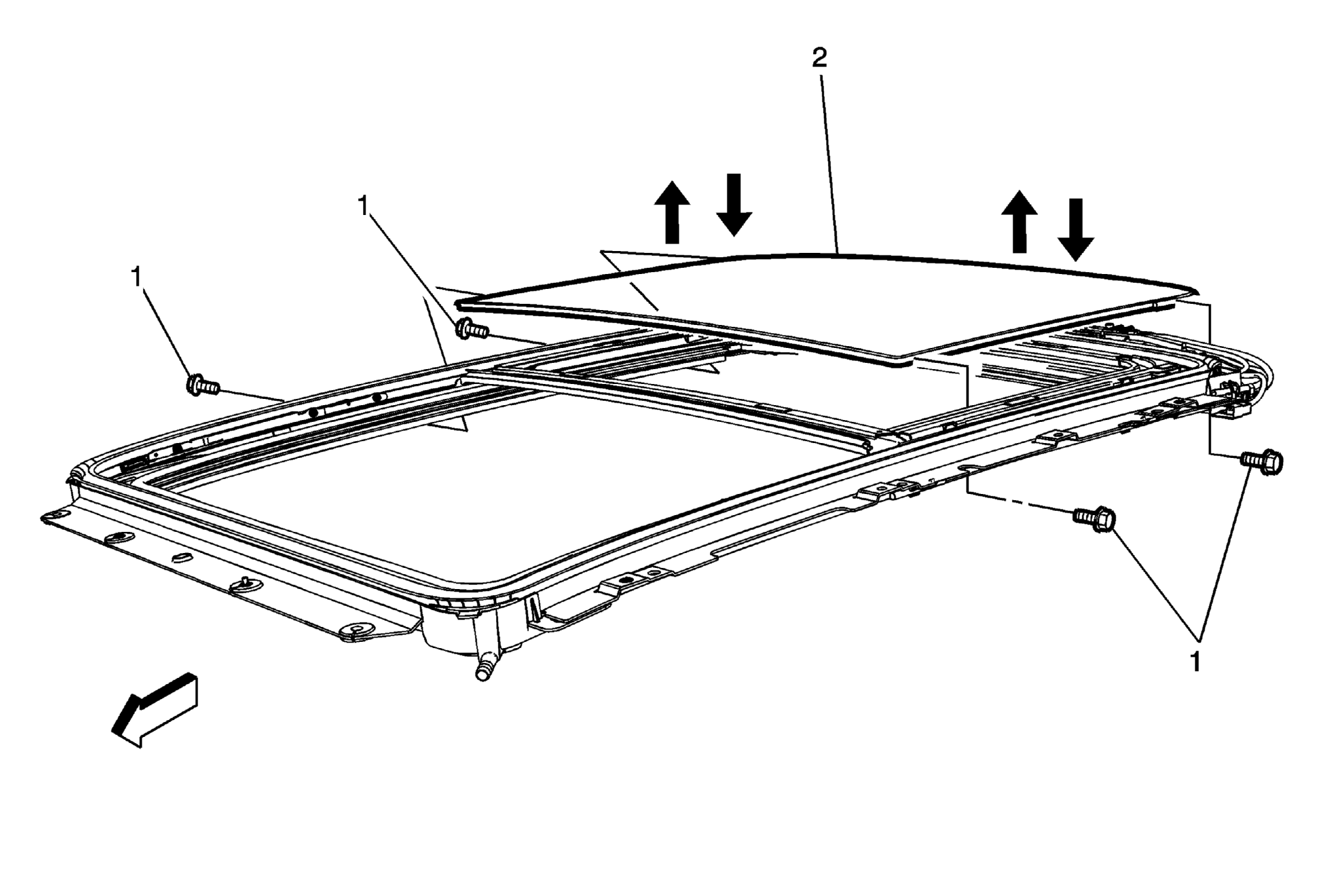

Fig 1: View Of Sunroof Window - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Window Screws (Qty: 4) CAUTION: Refer to Fastener Caution . Procedures Open the sunshade. Pull down on the inner seal to expose the screws on both sides of the window. Remove the sunroof window bolts, two on each side. Tighten 4 N.m (35 lb in)
2	Sunroof Window Procedure Place the sunroof window on a soft surface. Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .

Callout

Component Name

Sunroof Window Screws (Qty: 4)

CAUTION:

Procedures

Tighten
4 N.m (35 lb in)

Sunroof Window

Procedure

Place the sunroof window on a soft surface.
Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .
