Sunroof Window Replacement - Front

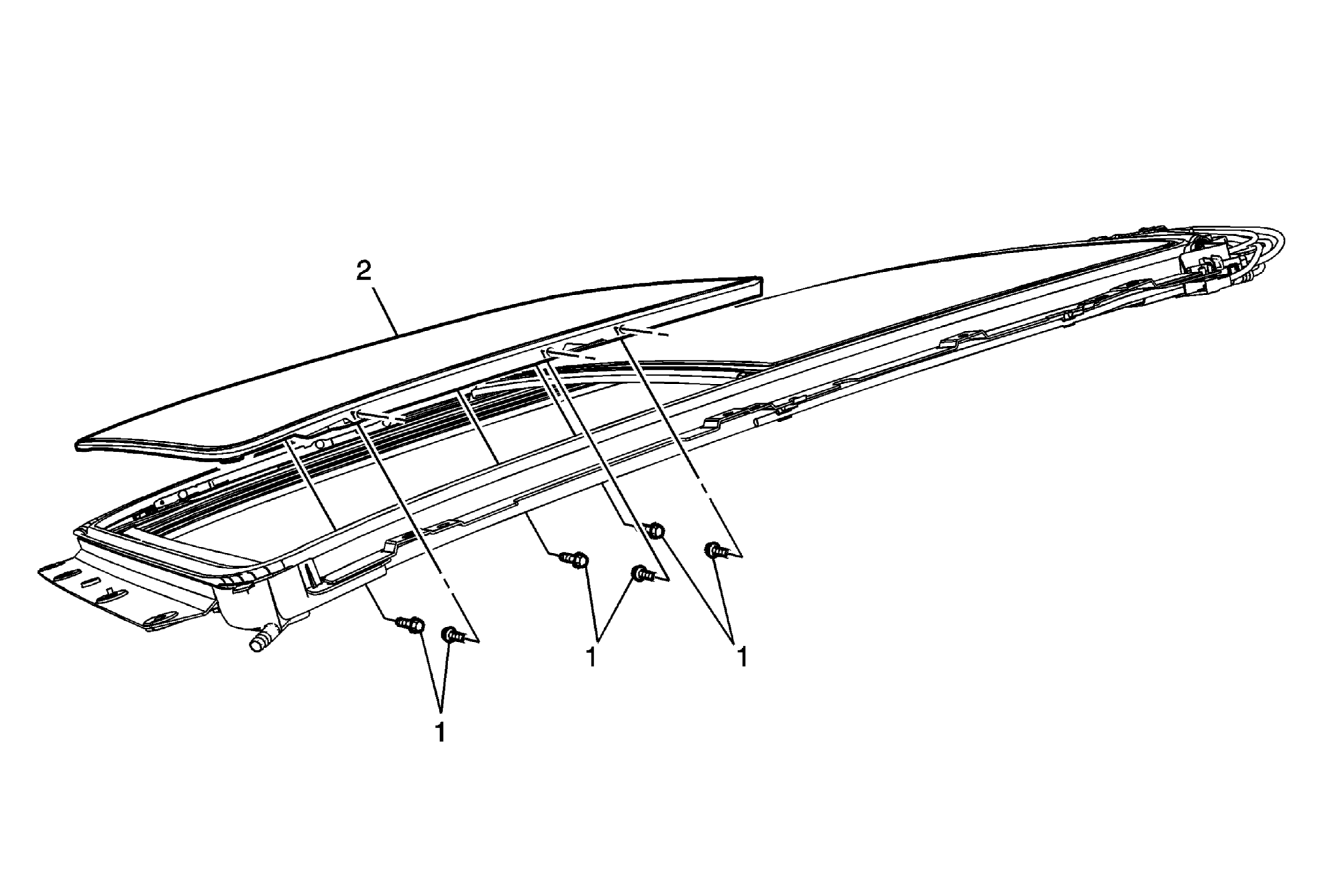

Courtesy of GENERAL MOTORS COMPANY Sunroof Window Replacement - Front
| Callout |
Component Name |
| 1 |
Sunroof Window Screws (Qty: 6)
Procedures
- Open the sunshade.
- Open the sunroof window to the vent position.
- Pull down on the inner seal to expose the screws on both sides of the window.
- Remove the sunroof window bolts, three on each side.
Tighten
4 N.m (35 lb in) |
| 2 |
Sunroof Window Procedures
- Place the sunroof window on a soft surface.
- Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .
- Water test the vehicle before installing the headlinder.
|
