Driver Knee Bolster Reinforcement Replacement

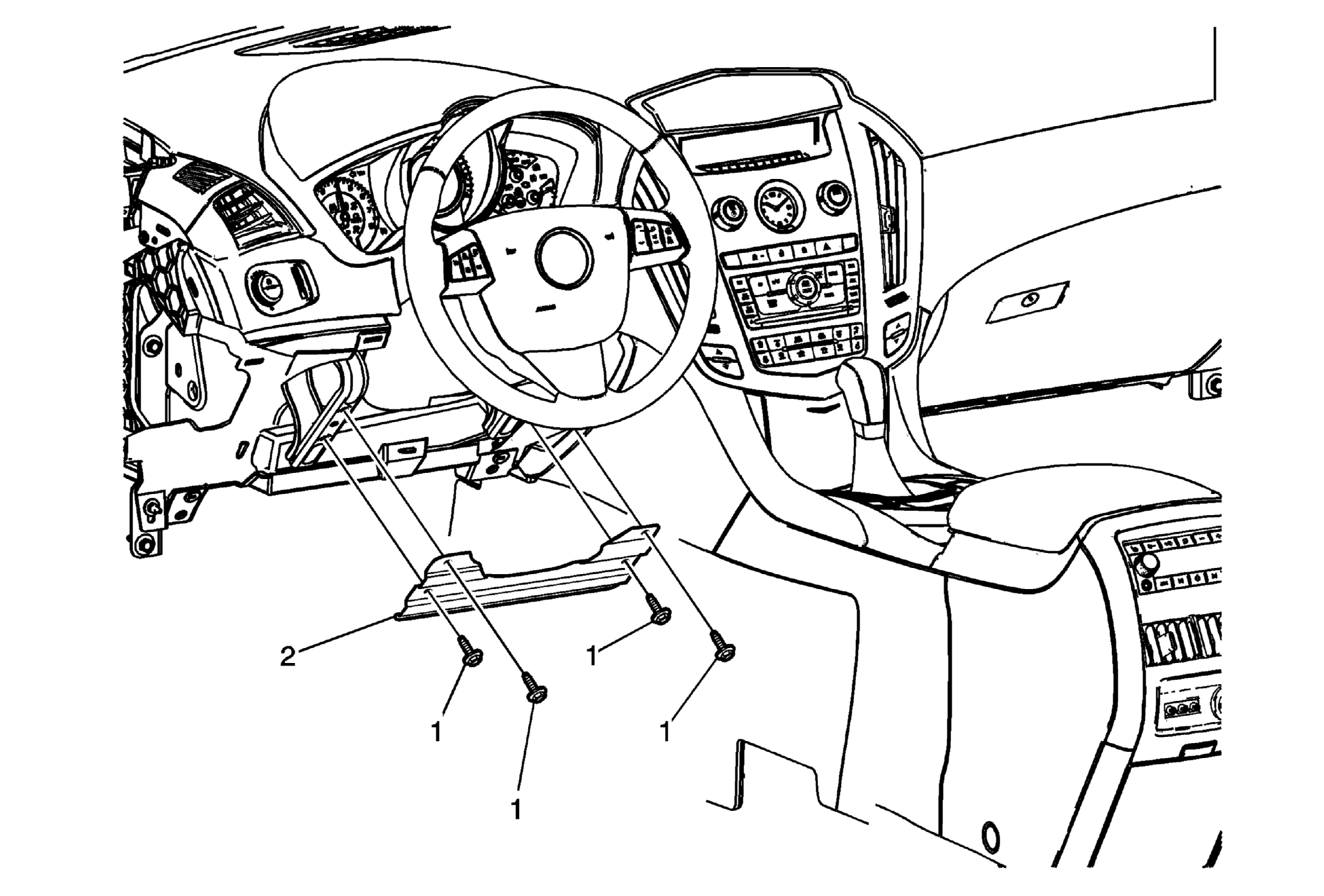

Fig 1: Identifying Driver Knee Bolster Reinforcement

Courtesy of GENERAL MOTORS COMPANY

Driver Knee Bolster Reinforcement Replacement

Callout	Component Name
Preliminary Procedure  Remove the instrument panel drivers knee bolster assembly. Refer to Driver Knee Bolster Panel Replacement .
1	Instrument Panel Drivers Knee Bolster Reinforcement Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Instrument Panel Drivers Knee Bolster Reinforcement
