Front Bumper Fascia Energy Upper Absorber Replacement

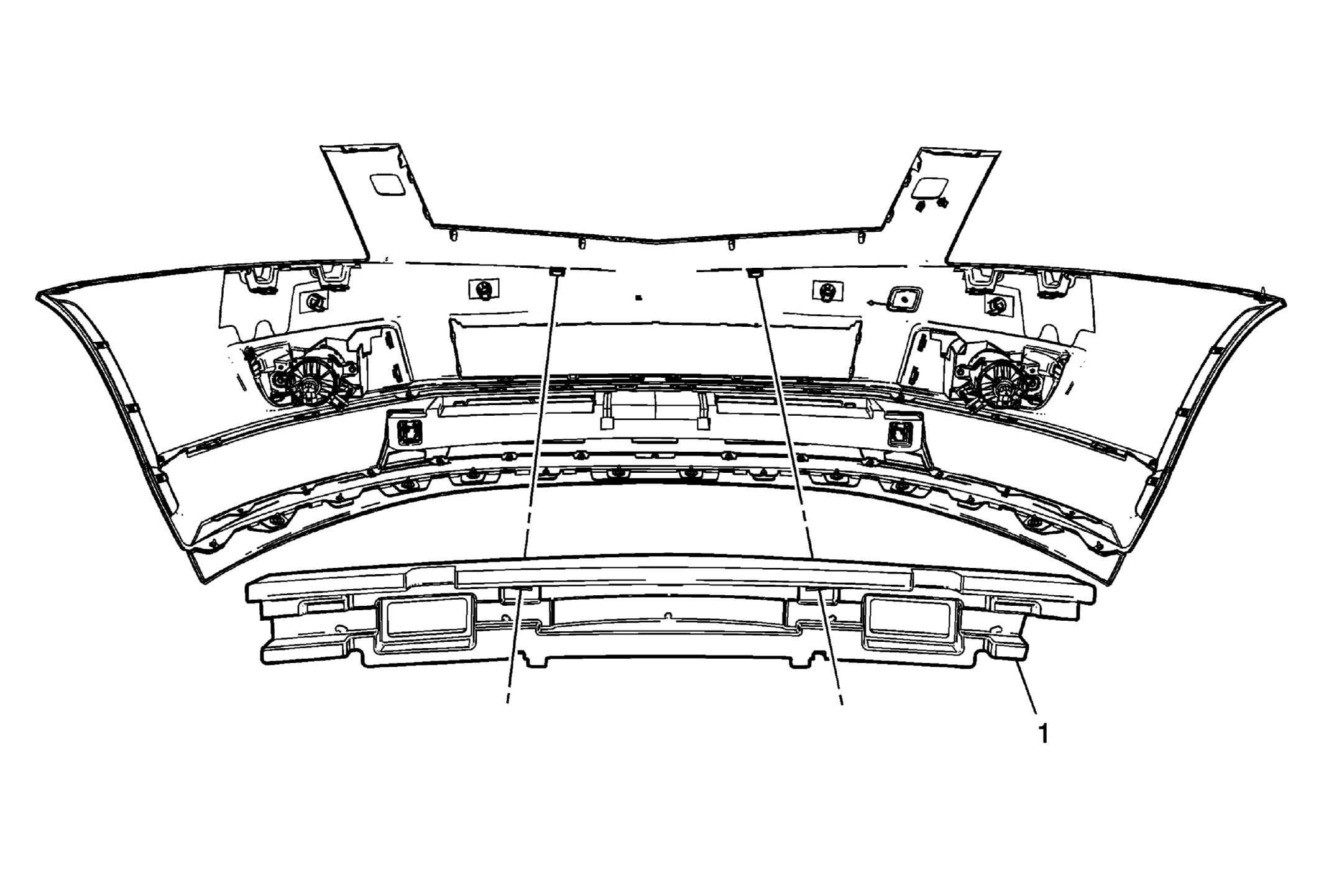

Fig 1: Identifying Front Bumper Fascia Energy Upper Absorber

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Bumper Fascia Energy Absorber Procedure Disconnect the front park assist harness. Release the 2 retainer clips.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

Front Bumper Fascia Energy Absorber

Procedure
