Tail Lamp Replacement

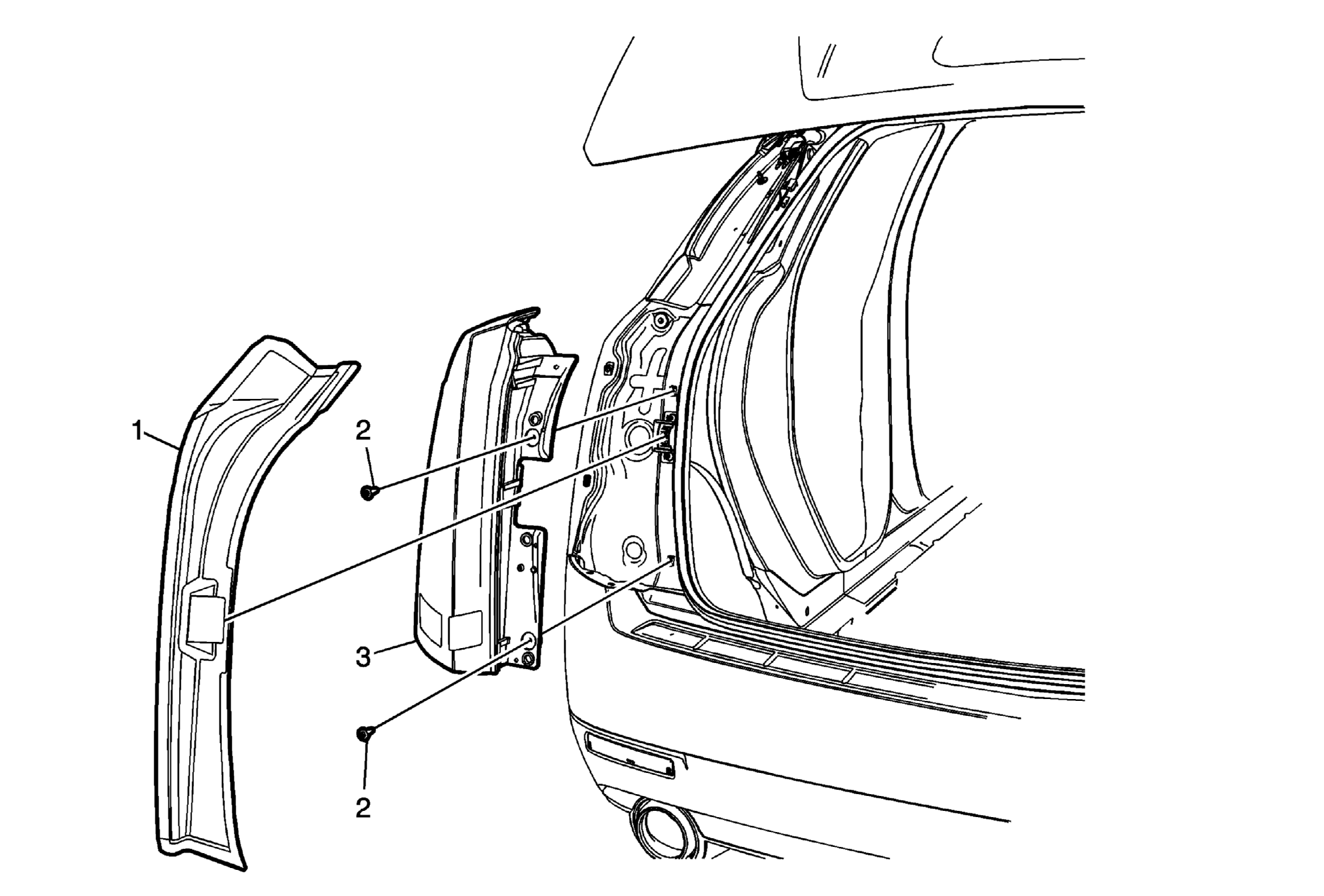

Fig 1: Identifying Tail Lamp, Screws & Filler Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the rear liftgate in order to access and remove the tail lamp screws.
1	Tail Lamp Filler Panel Procedure Using a suitable flat bladed tool, remove the push-pin and tail lamp filler panel.
2	Tail Lamp Screw (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Tail Lamp Assembly Procedure Pull on the outer edge of the tail lamp assembly in order to release the tail lamp locator pins from the rear bodyside panel. Disconnect the electrical connectors.
