MP 3010-NP0 - Transfer Case

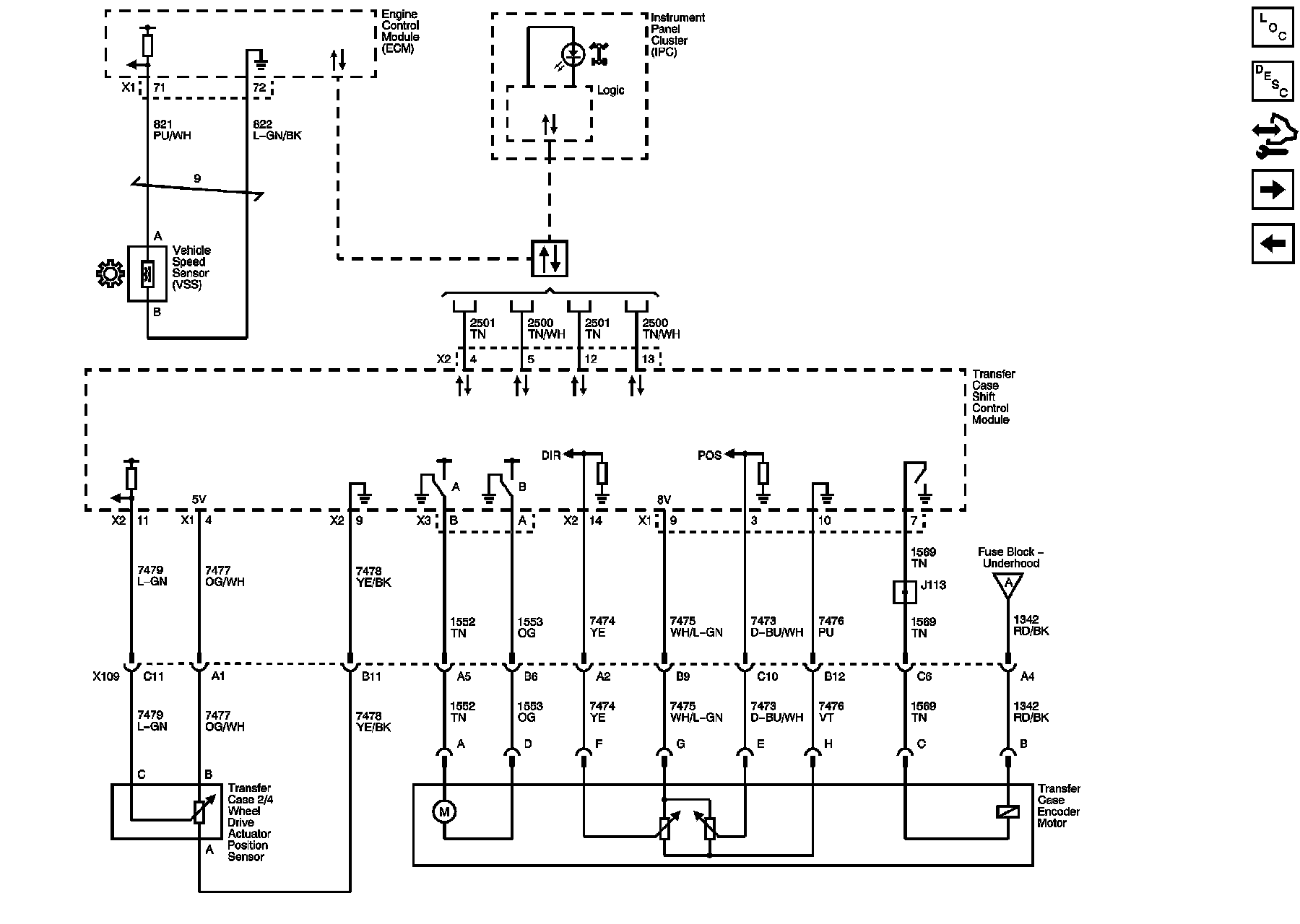

Transfer Case Control Schematics

Power and Ground





Shift Controls and Indicators






Encoder Motor and Serial Data






Front Axle Actuator and Speed Sensors
