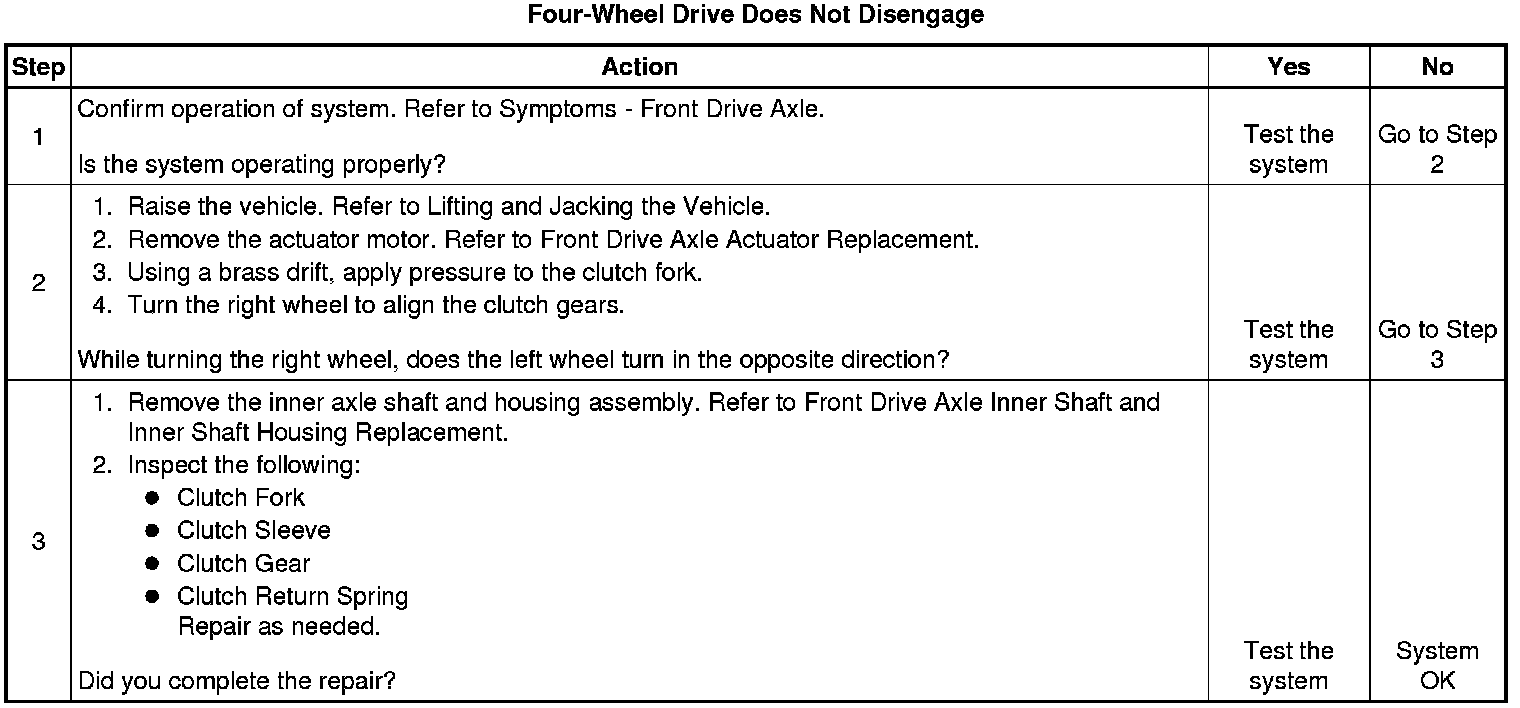

Four-Wheel Drive Does Not Disengage
Four-Wheel Drive Does Not Disengage
Important:
Before performing the following diagnostic procedure, ensure that all electrical diagnostic procedures have been performed and there are no DTCs.
