Electrical Diagrams




Automatic Transmission Controls Schematics

Module Power, Ground, Serial Data, and Speed Signal

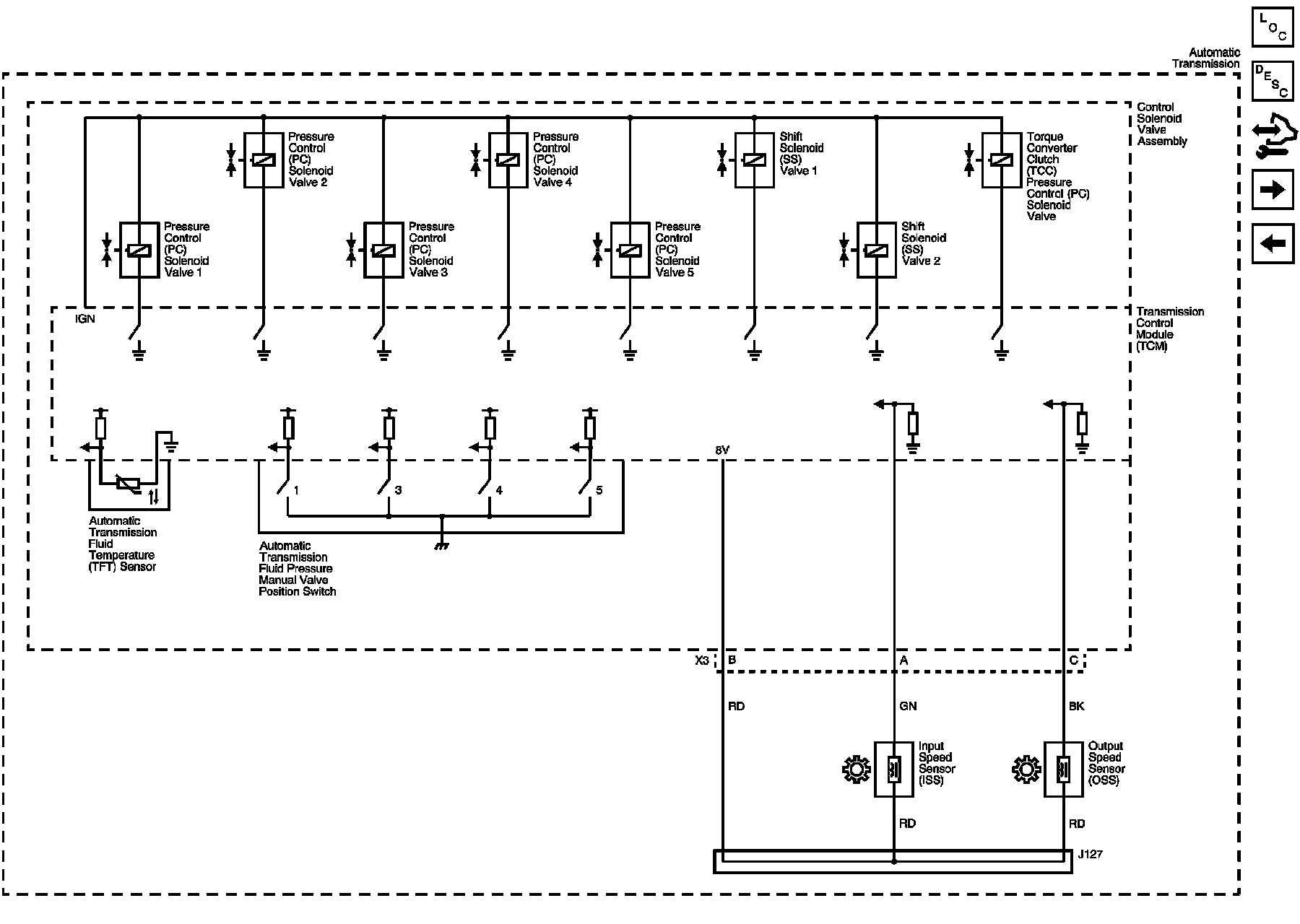

ISS, OSS, TFP, TFT, Pressure Controls and Shift Controls






Transmission Range Signals and Driver Shift Request
