Trailer Connector/Provision Schematics

Trailer Connector/Provision Schematics

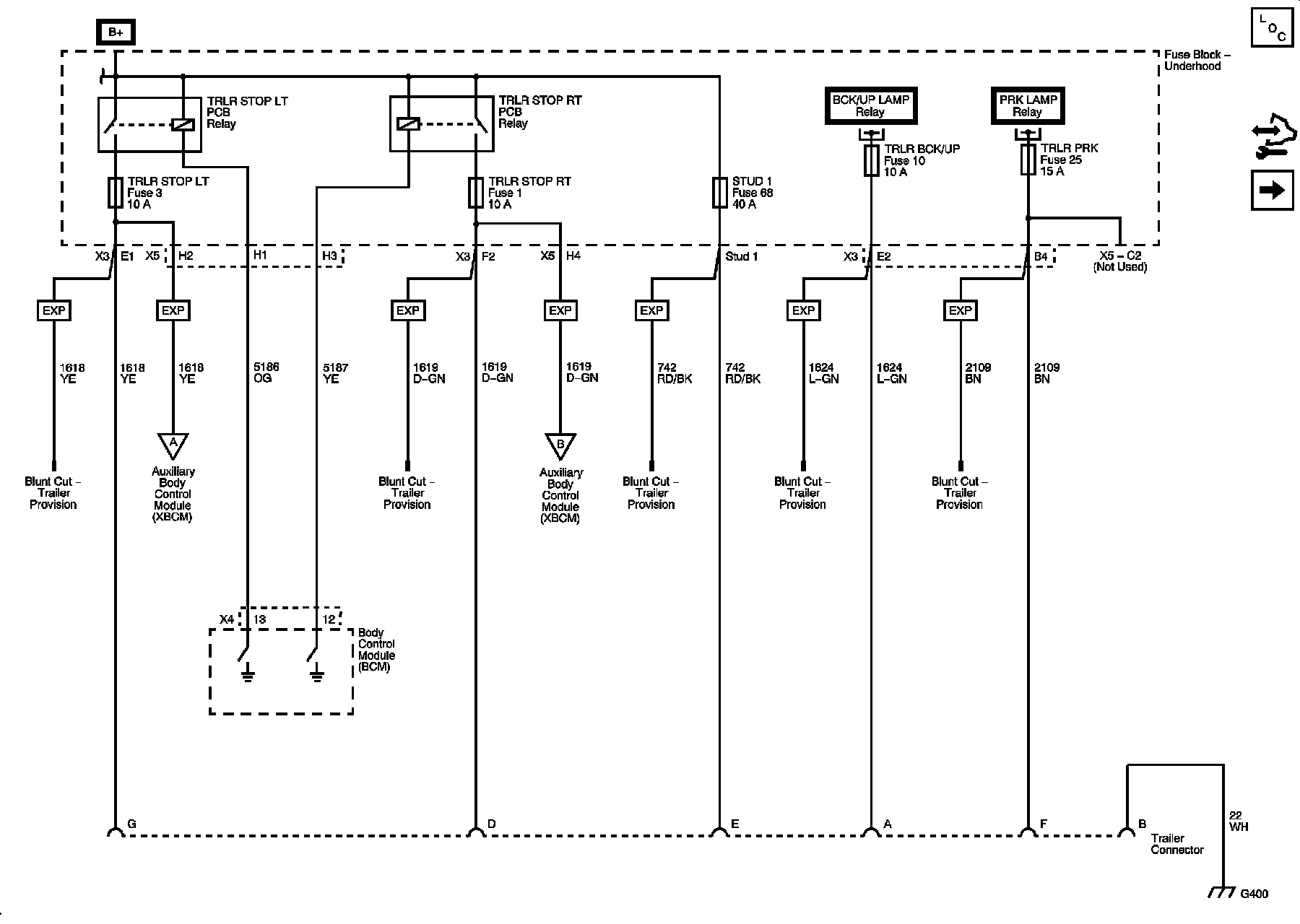

Trailer Wiring - EXP (1 of 2) or without EXP

Trailer Wiring - EXP (2 of 2)

Trailer Wiring (without EXP)
