Electrical Diagrams




Starting and Charging Schematics

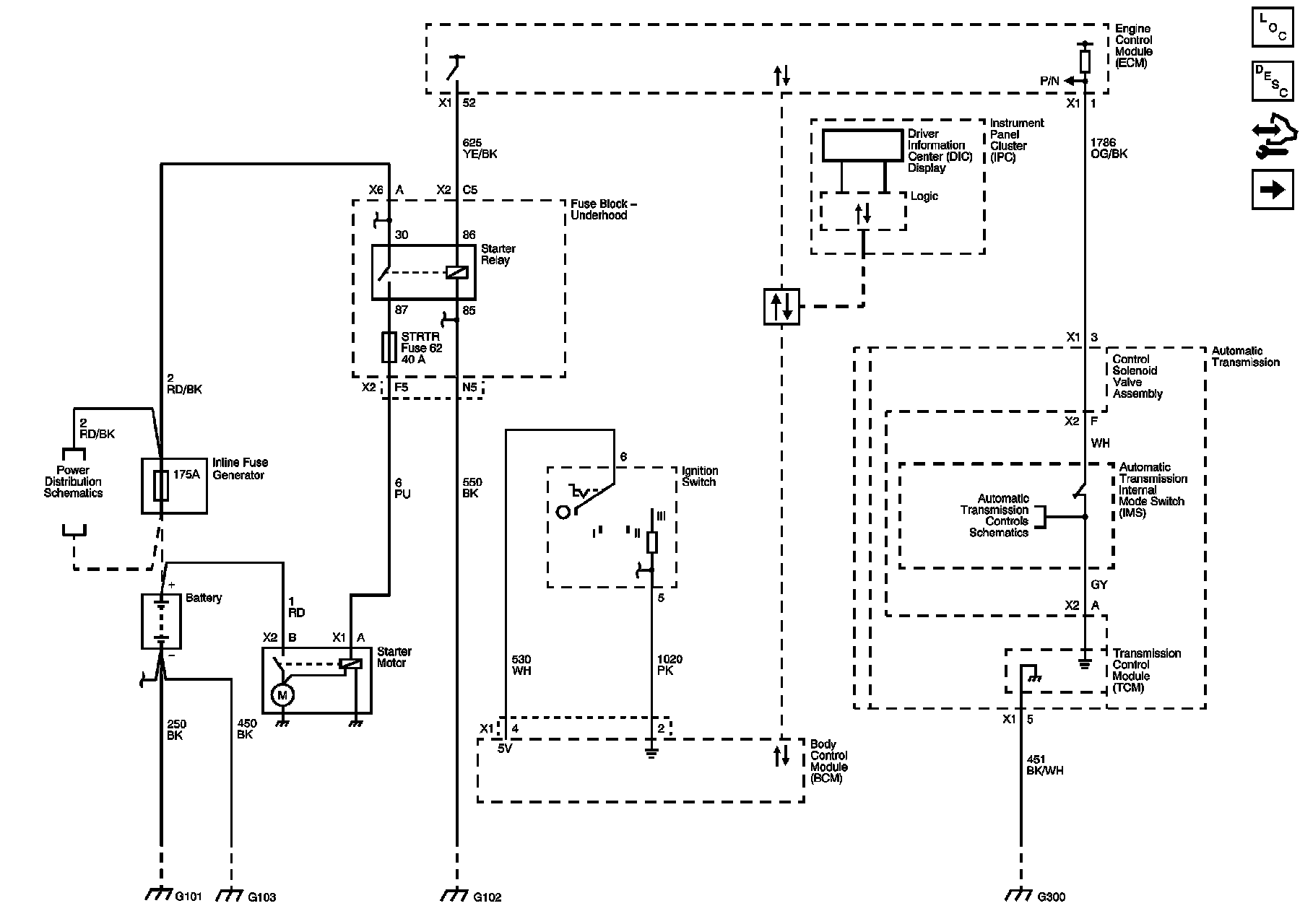

Starting (except HP2)






Charging (except HP2)
