Fuse Block - Mobile Radio (5W4, 9L4 or PPV)
Fuse Block - Mobile Radio (5W4, 9L4 or PPV)
Electrical Center Identification Views

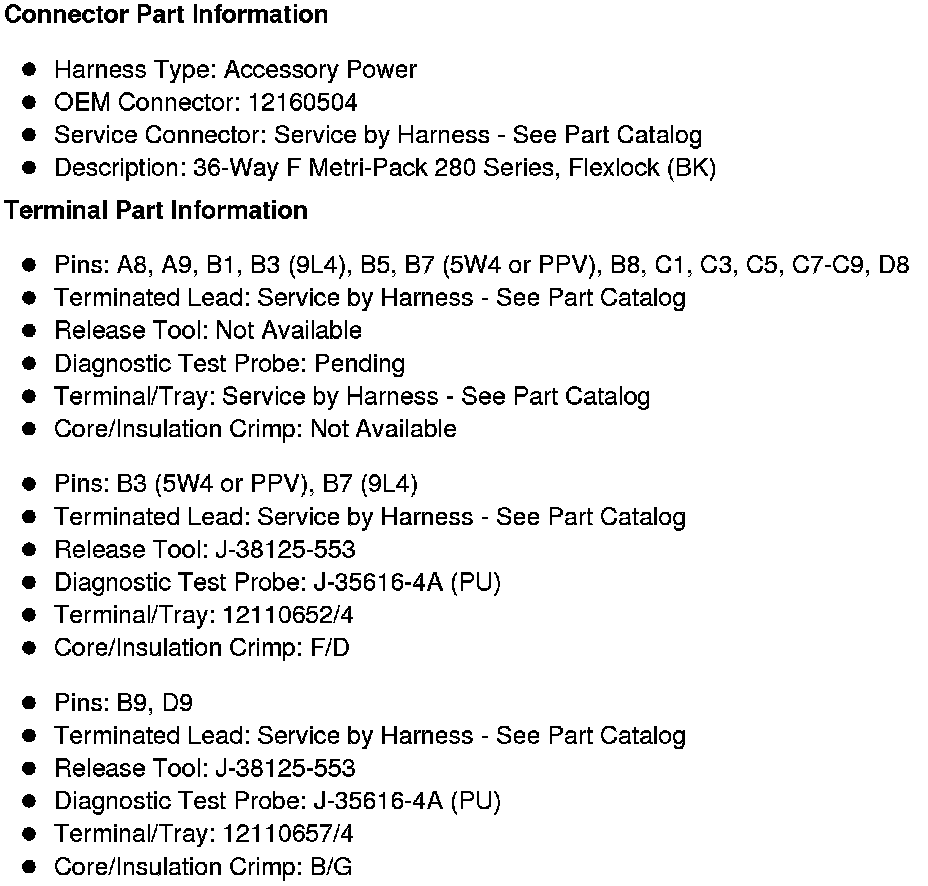

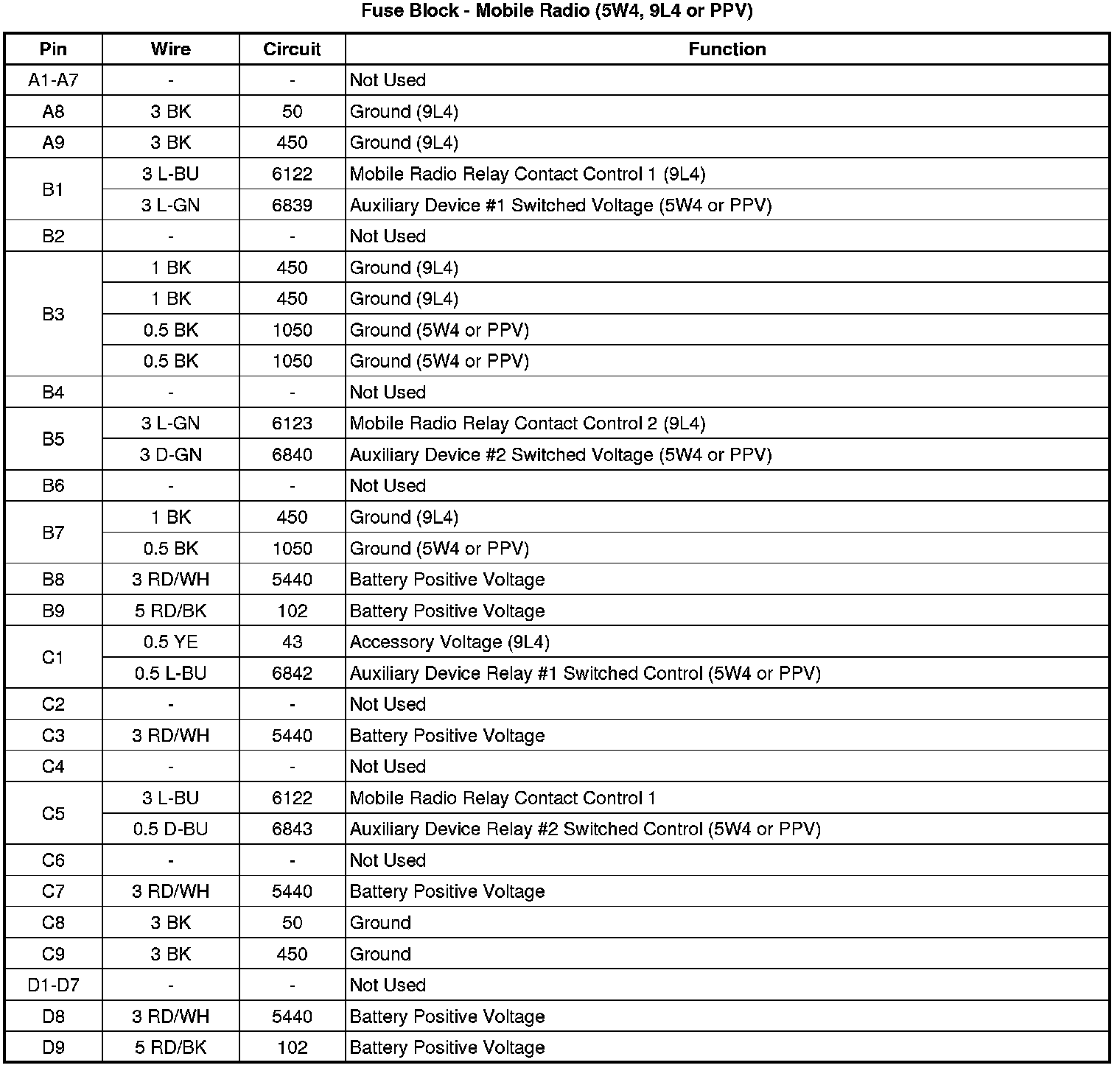

Fuse Block - Mobile Radio (5W4, 9L4 or PPV)
