Home >> Cadillac >> 2013 >> Escalade/ESV AWD V8-6.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Moding Schematics

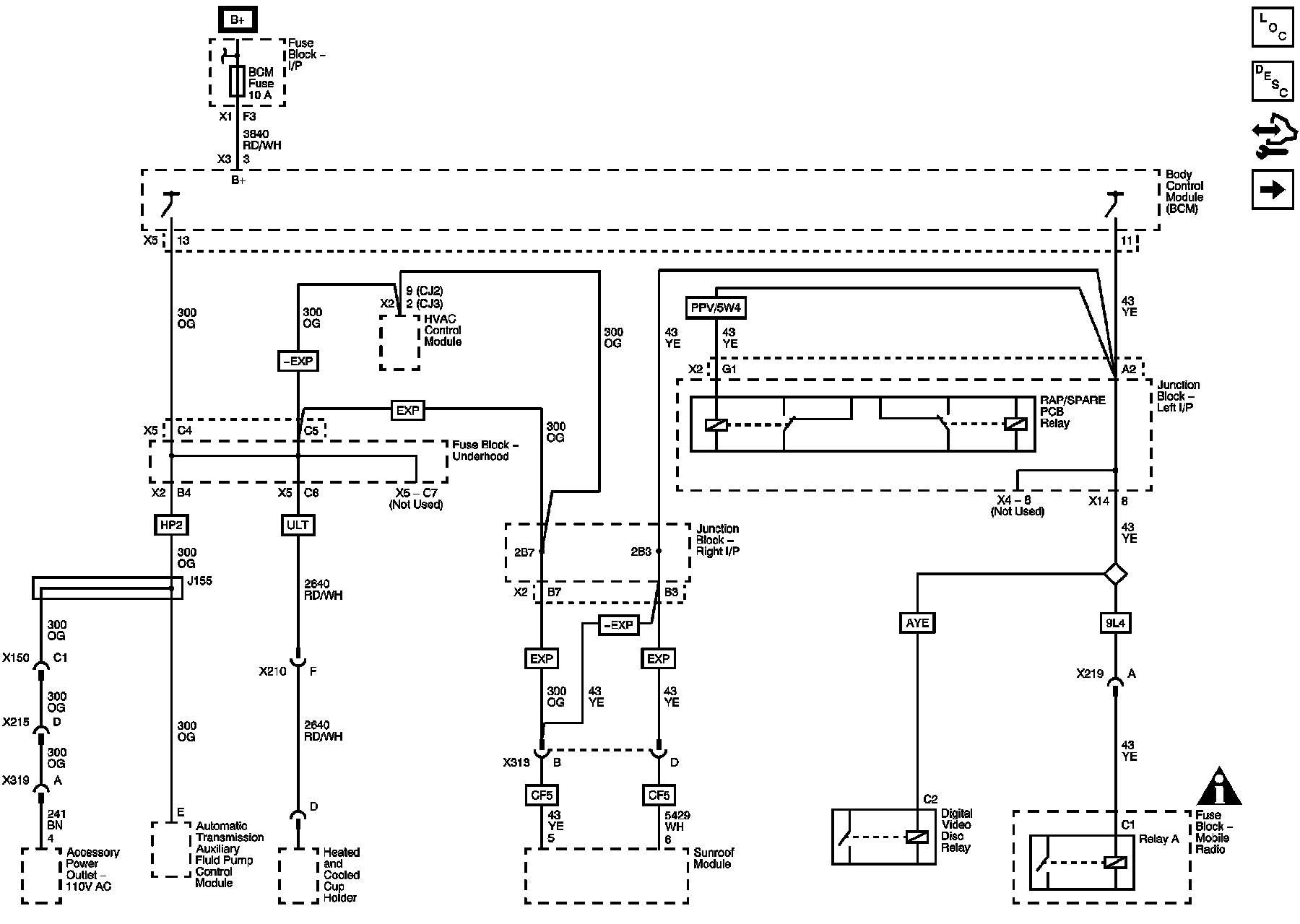

Power Moding Schematics




Power Moding Schematics

Ignition 3 and Accessory Voltage





Ignition 2/3 Voltage






Ignition 1 Voltage
