I/P Harness Routing- Passenger Compartment (Z75 with HP2)

Harness Routing Views

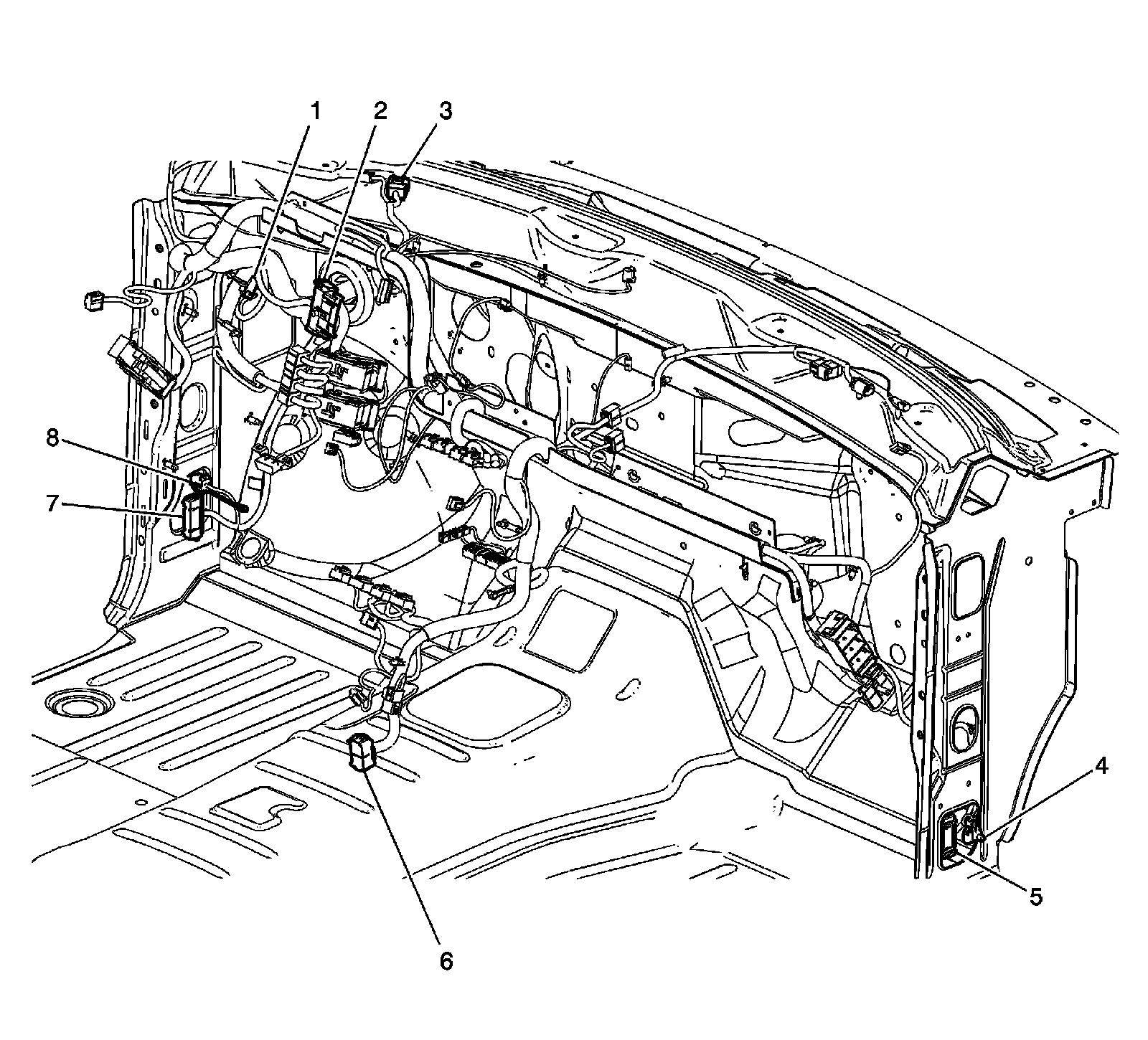

I/P Harness Routing- Passenger Compartment (Z75 with HP2)





1 - JX200

2 - X201

3 - X205

4 - X209 (UVC)

5 - X207

6 - X211 (D07)

7 - X202

8 - X200
