Interior Lights Dimming Schematics




Interior Lights Dimming Schematics

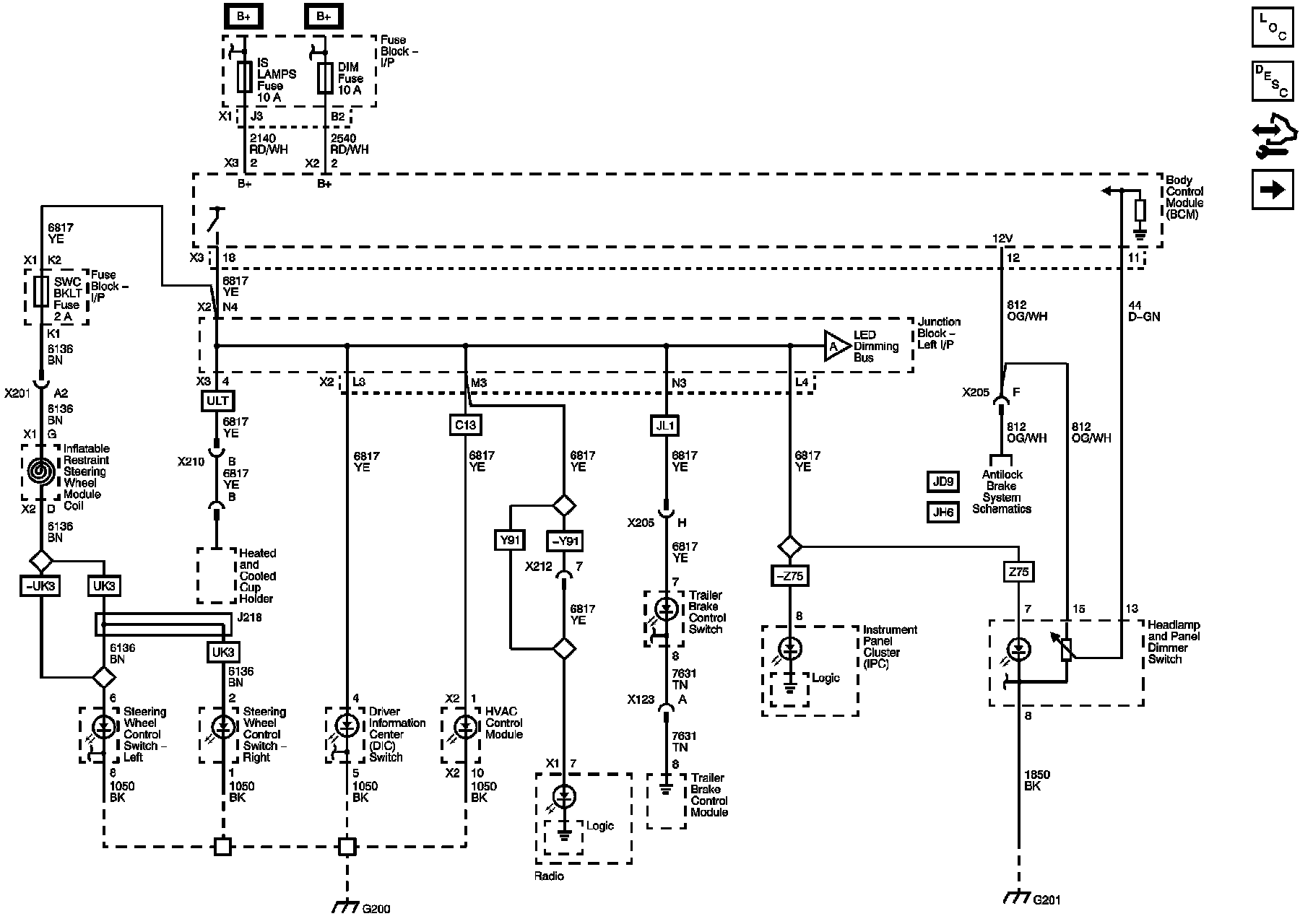

Dimming Control, and LED Dimming (1 of 3)

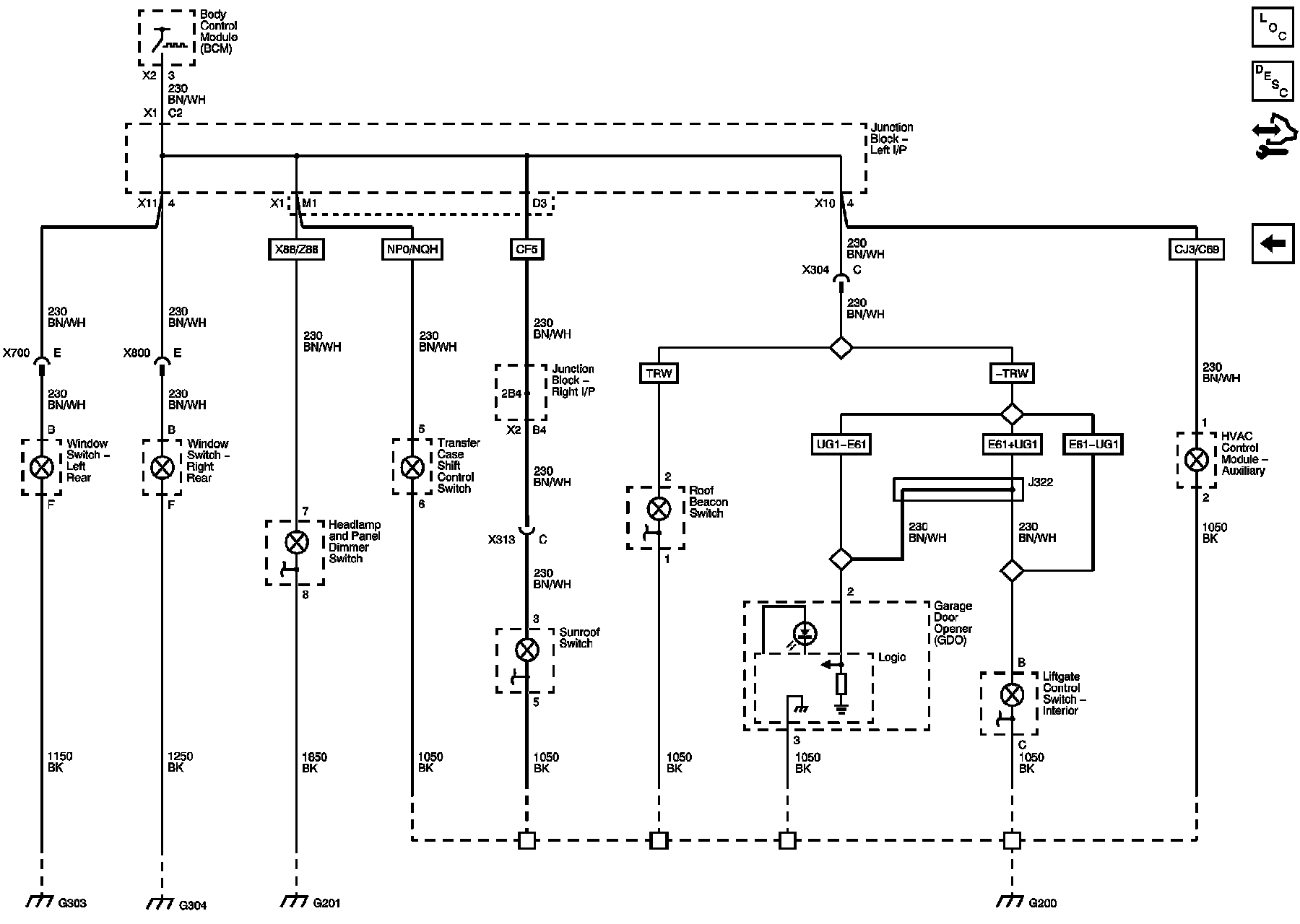

LED Dimming (2 of 3)






LED Dimming (3 of 3)






I/P Bulb Dimming
