Headlights/Daytime Running Lights (DRL) Schematics




Headlights/Daytime Running Lights (DRL) Schematics

Headlamp and Daytime Running Lamp Controls

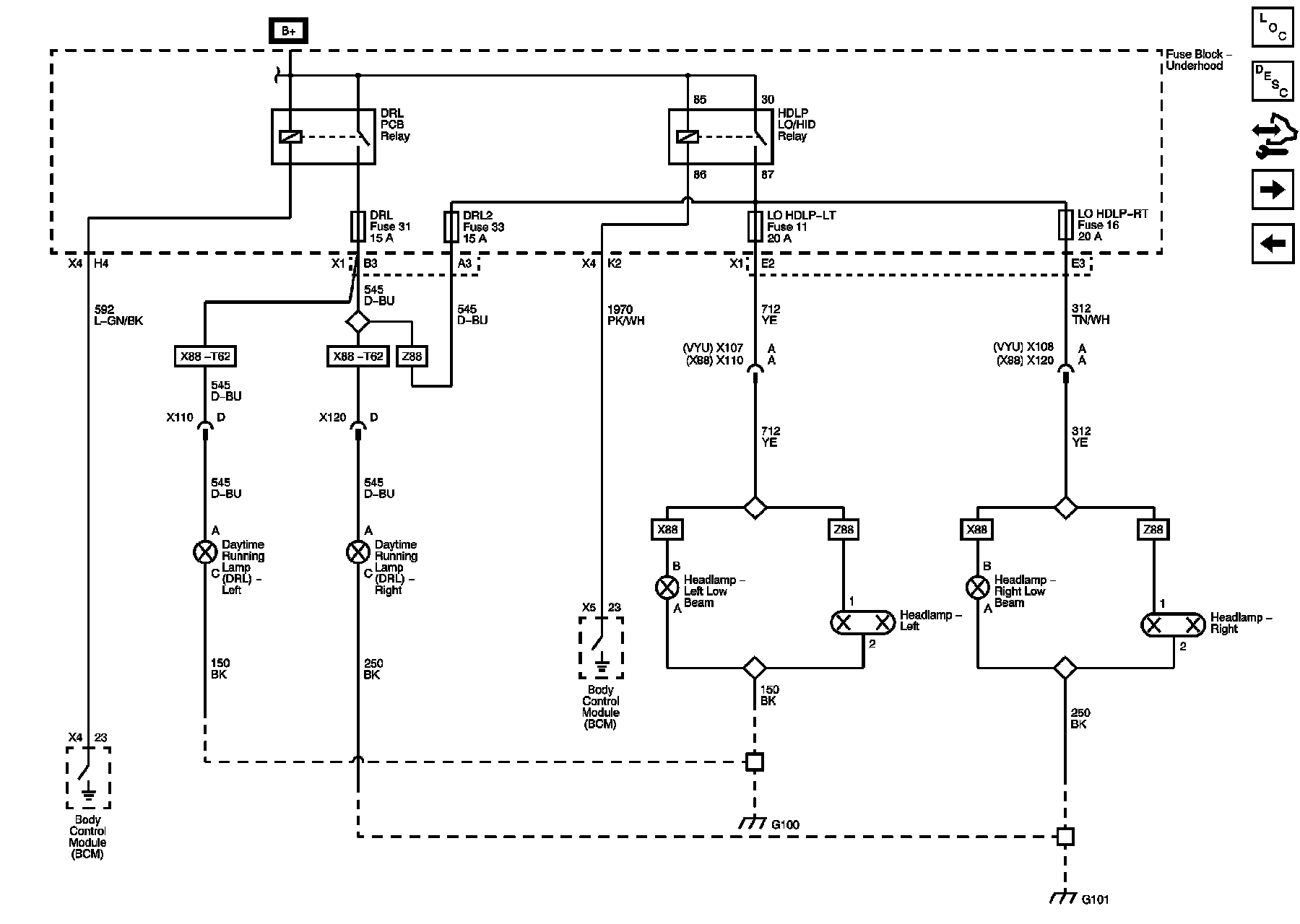

Low Beam and Daytime Running Lamps (X88 or Z88)

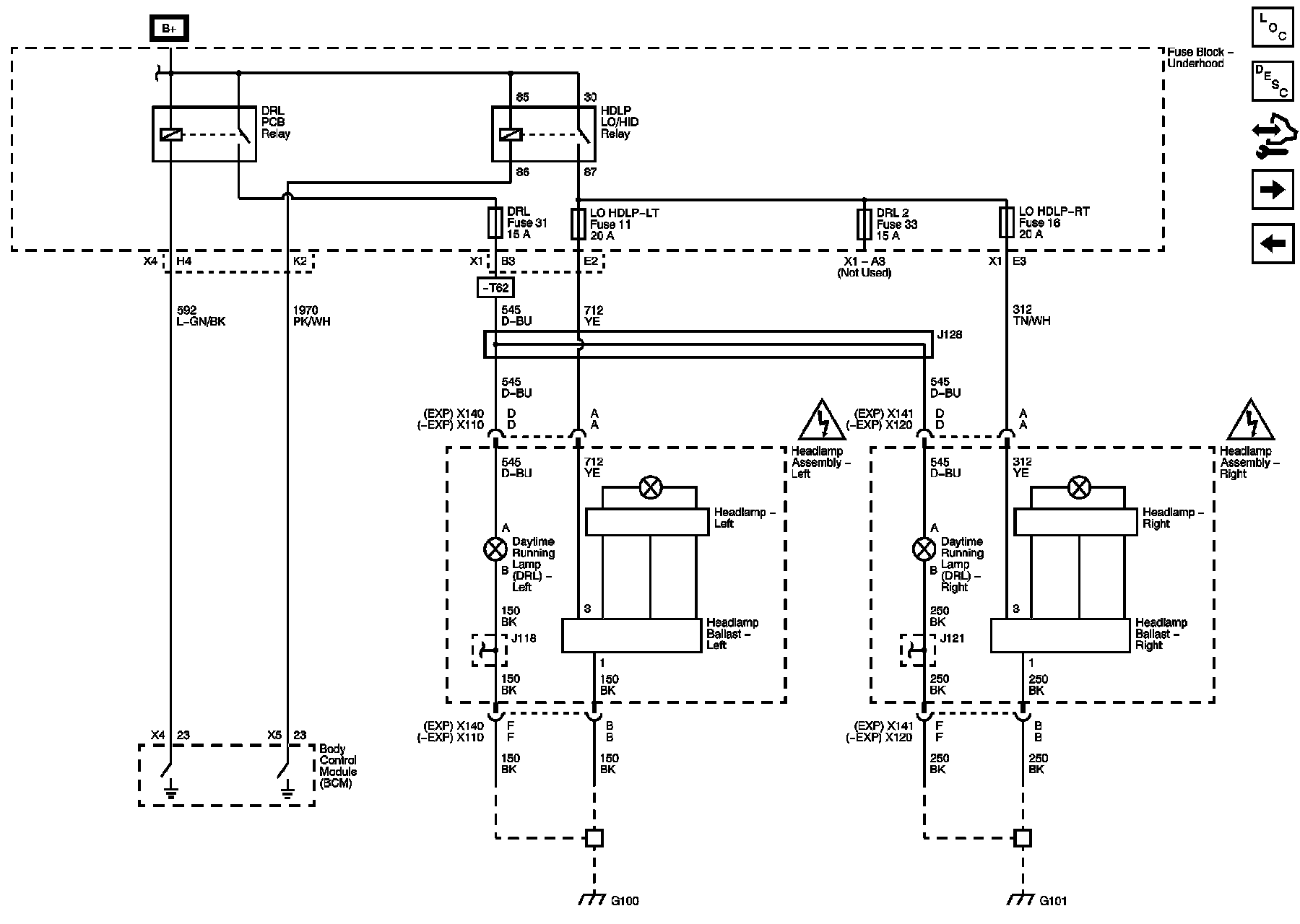

Low Beam and Daytime Running Lamps (Z75 without T4Q)

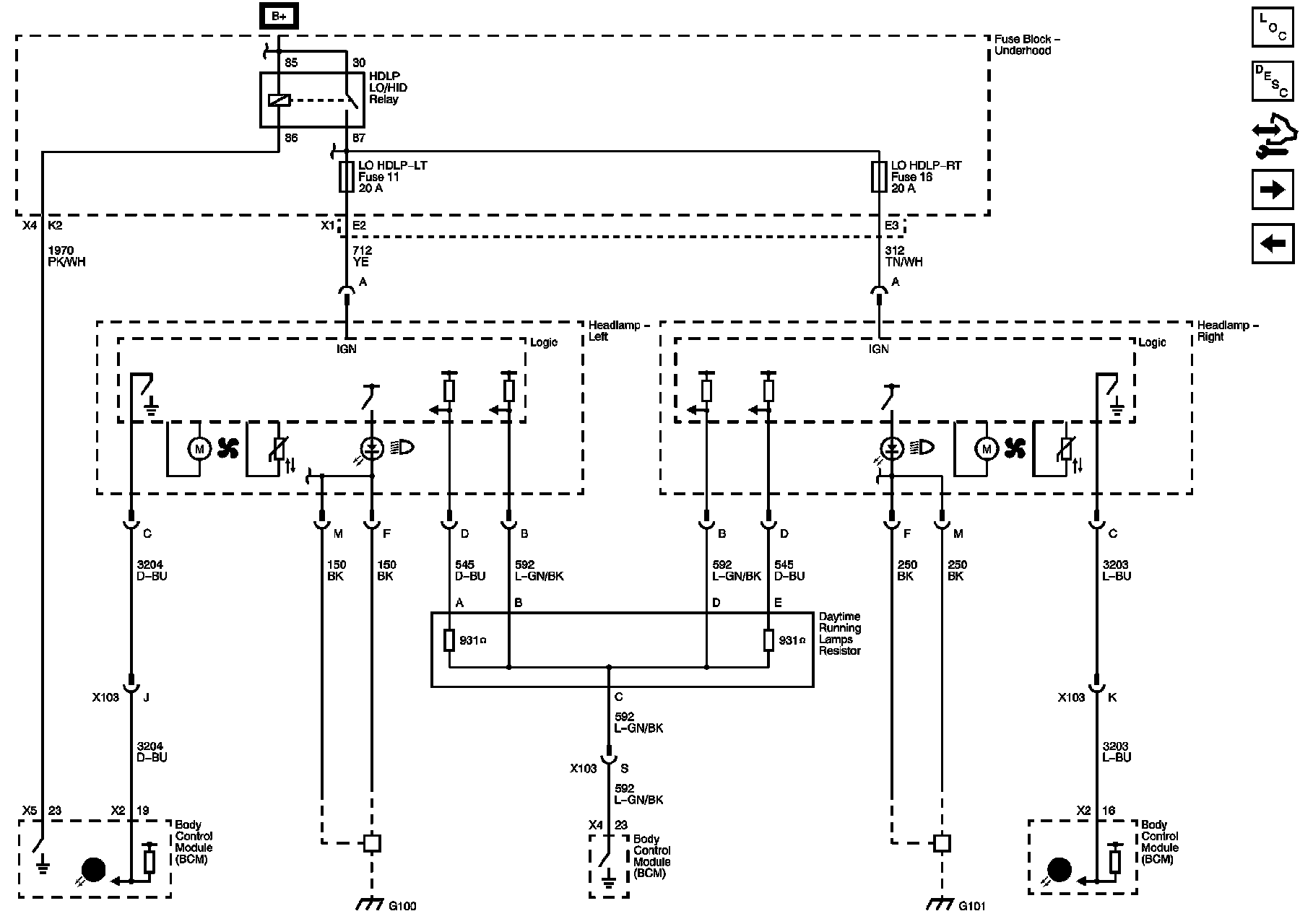

Low Beam and Daytime Running Lamps (Z75 with T4Q)

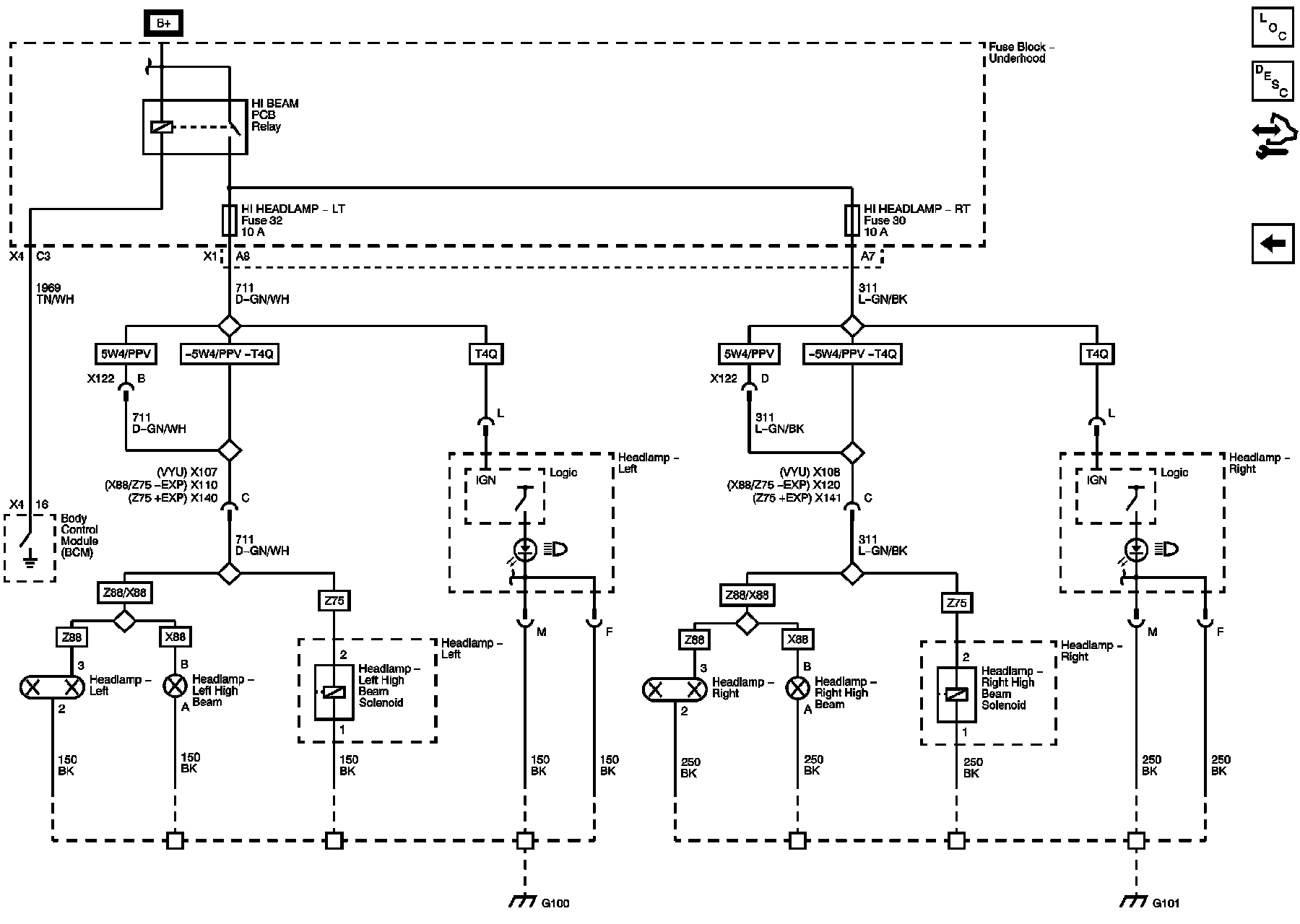

High Beams
