Exterior Lights Schematics




Exterior Lights Schematics

Park Lamp Controls and Left Front Park Lamps

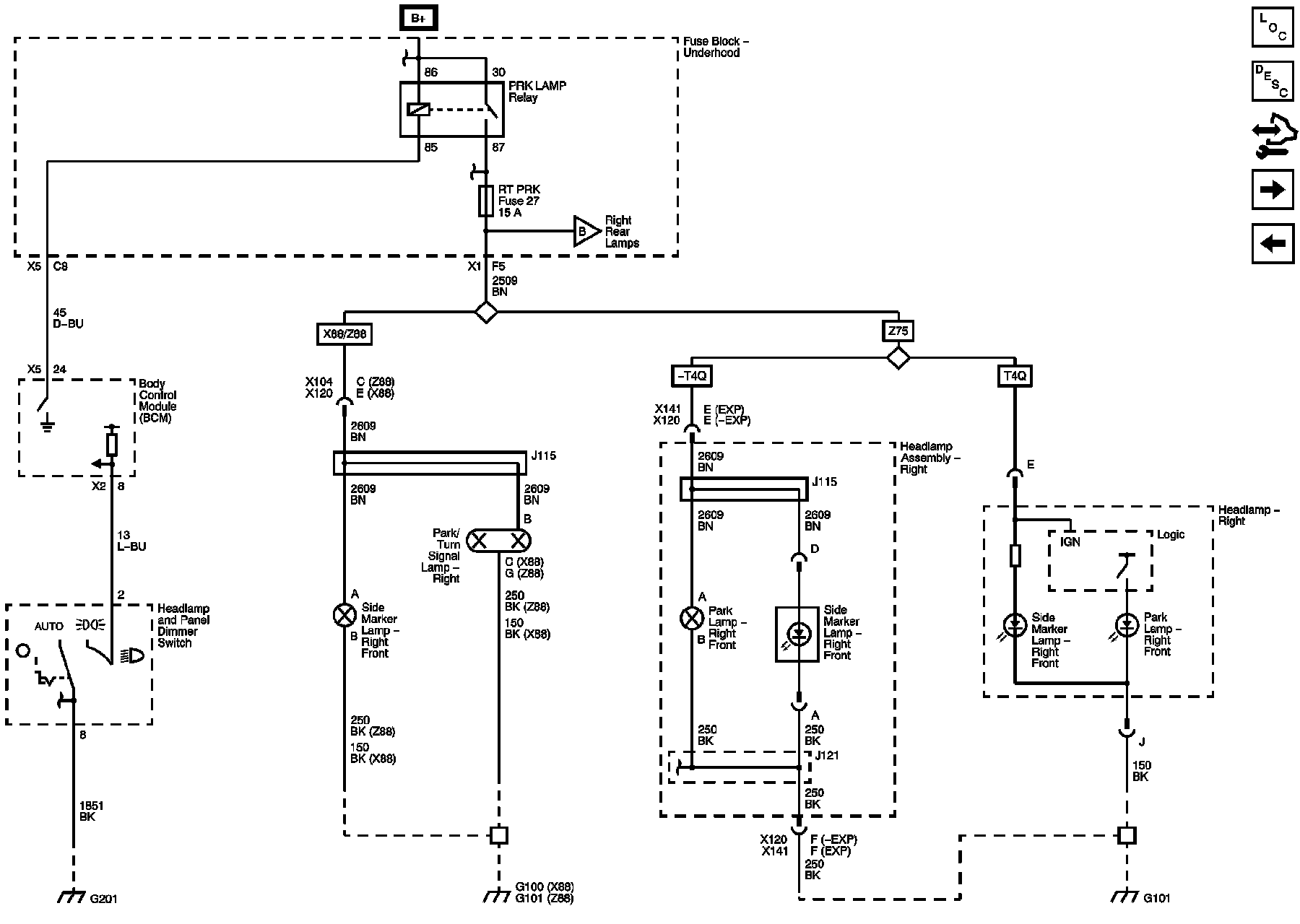

Park Lamp Controls and Right Front Park Lamps

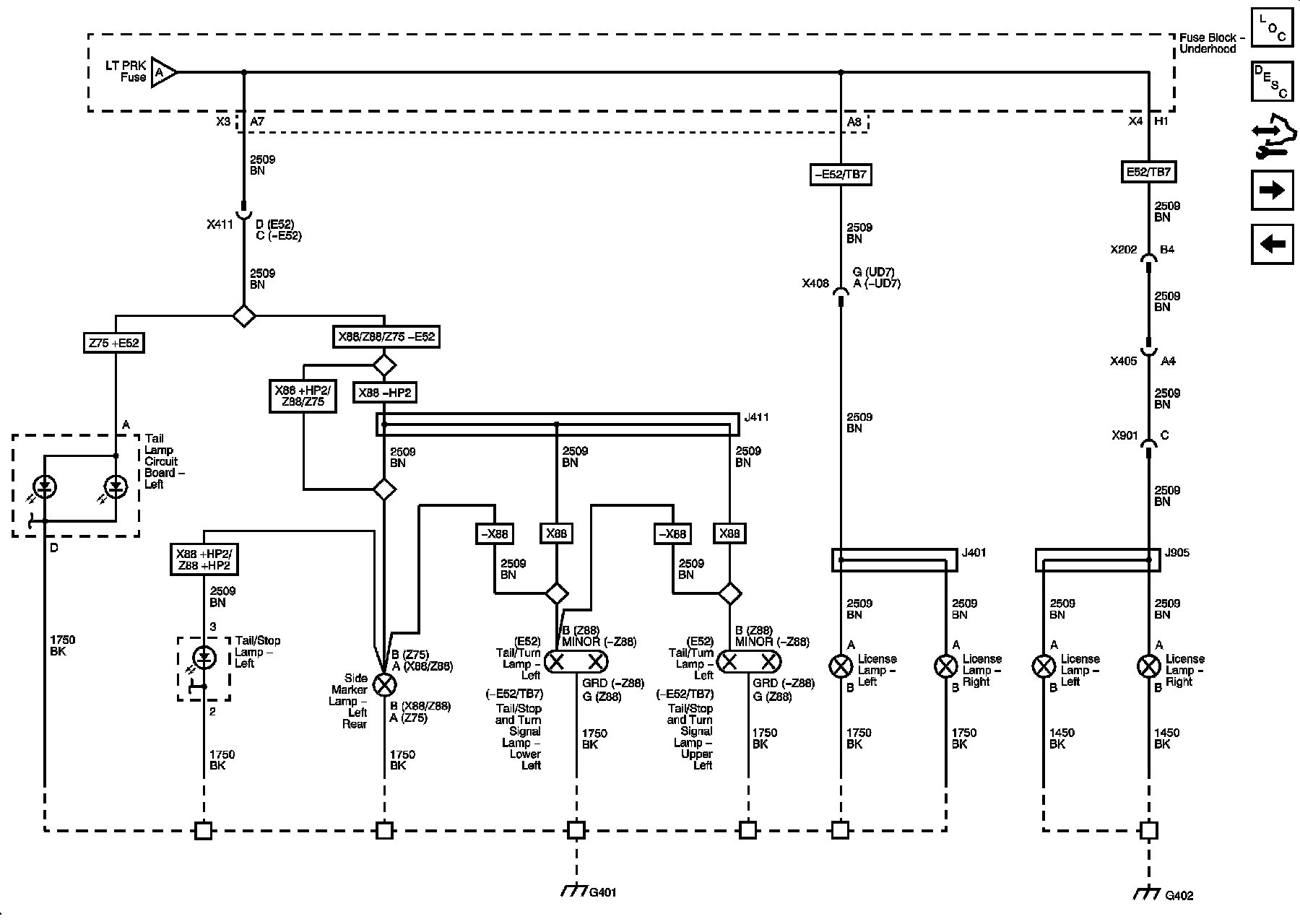

Left Rear Park Lamps and License Lamps

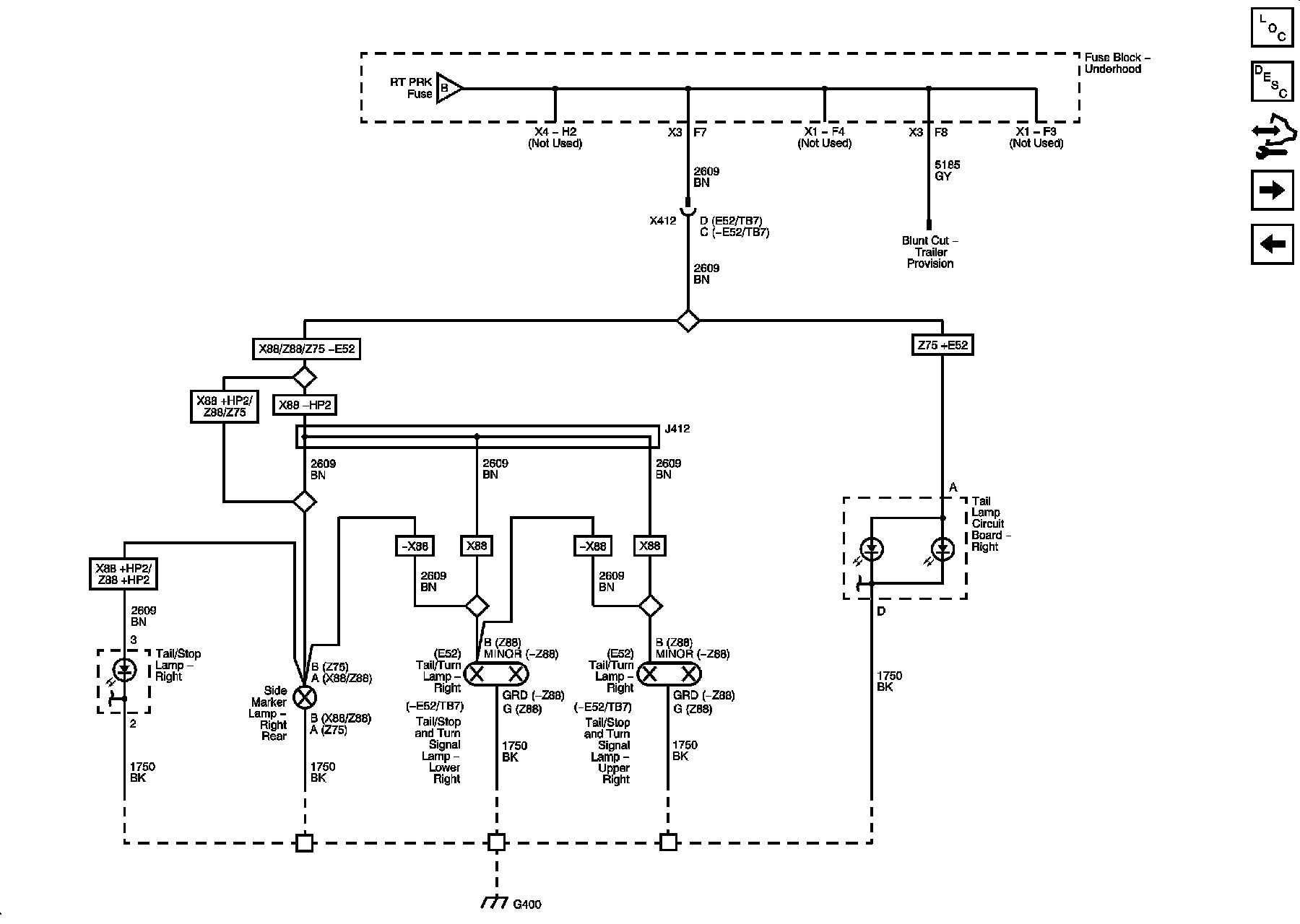

Right Rear Park Lamps






Exterior Illumination Lamps

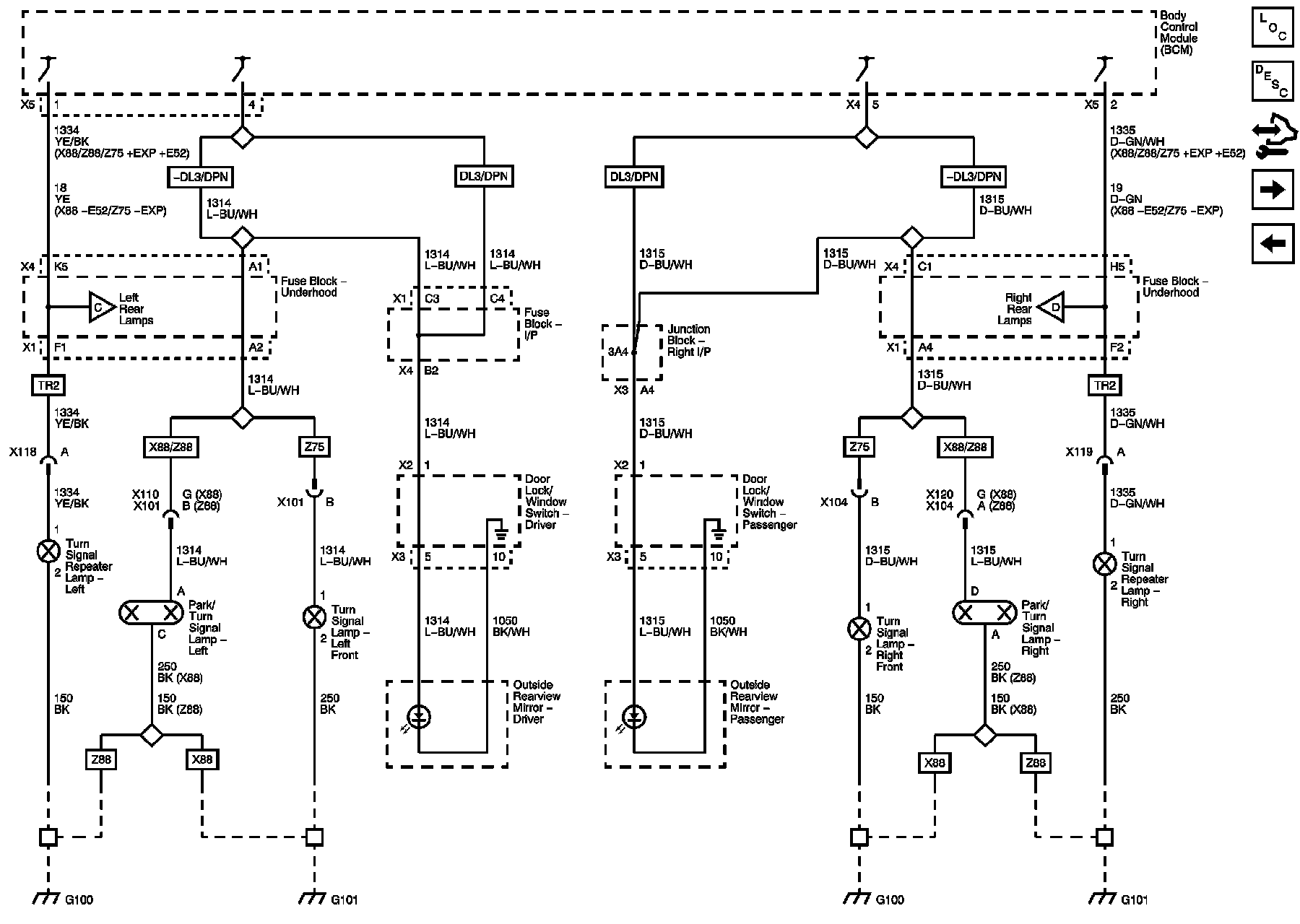

Turn Signal Controls






Front Turn Signal Lamps

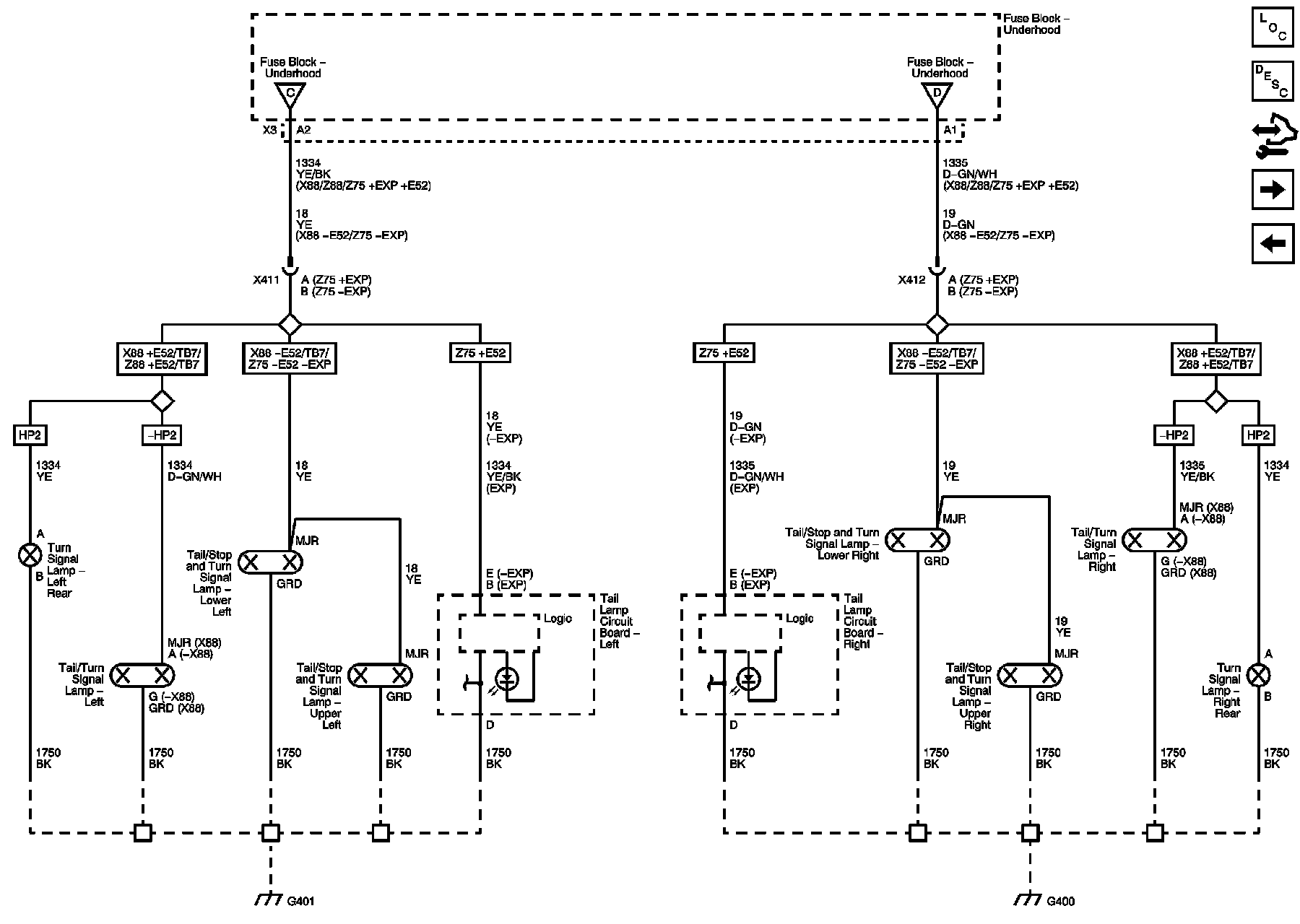

Rear Turn Signal Lamps

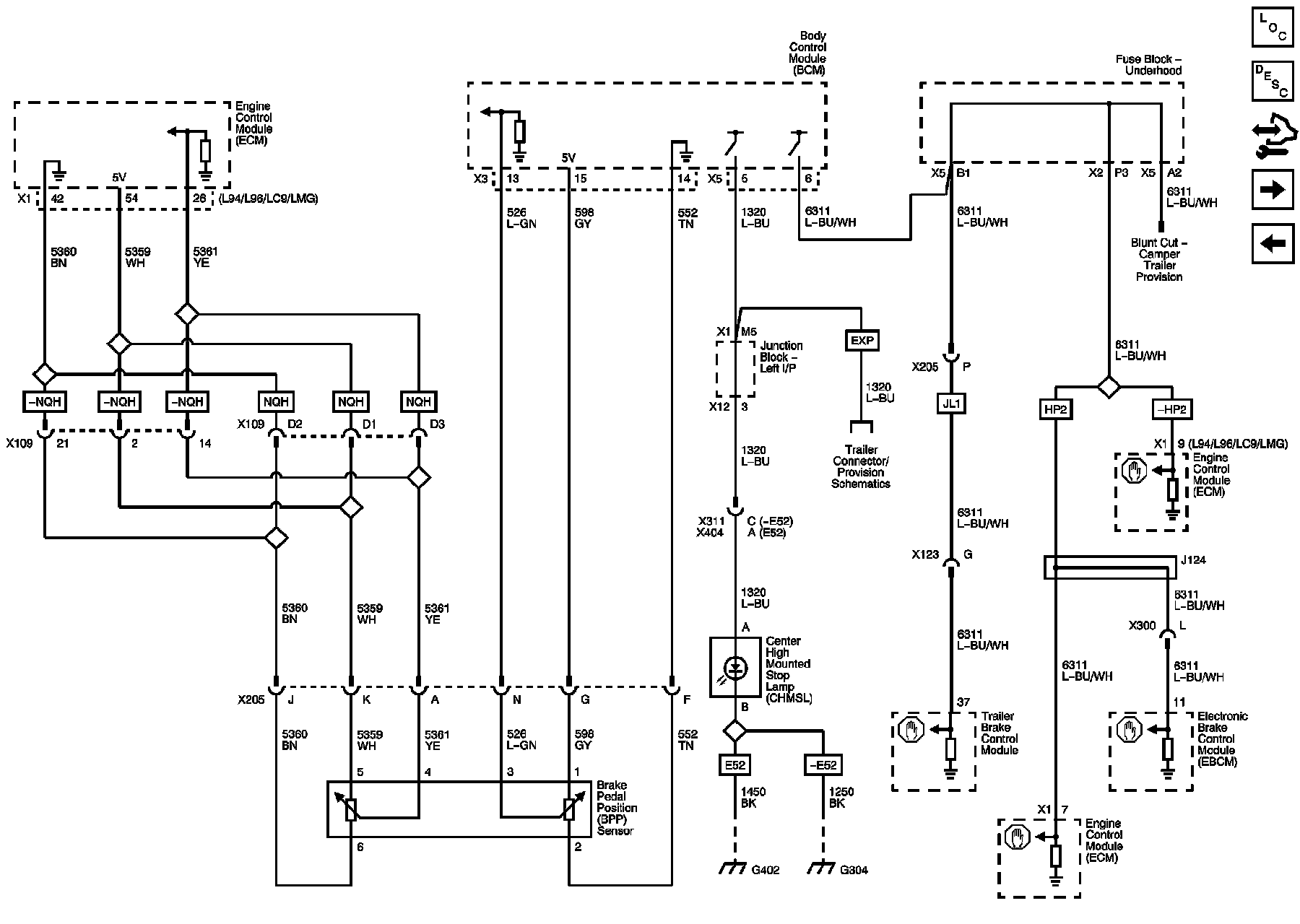

Stop Lamp Controls and CHMSL

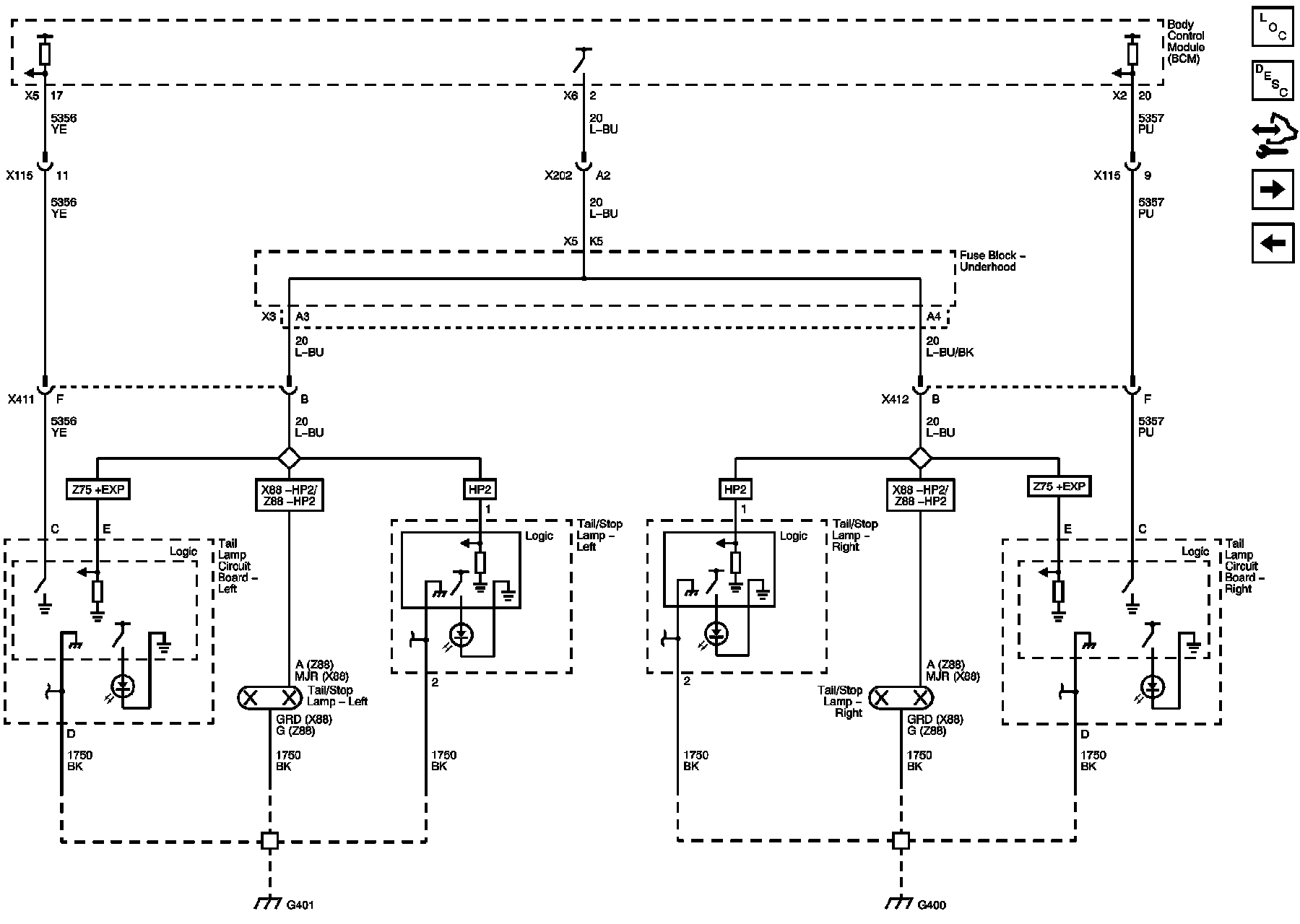

Stop Lamps (X88, Z88 and Z75 with EXP)

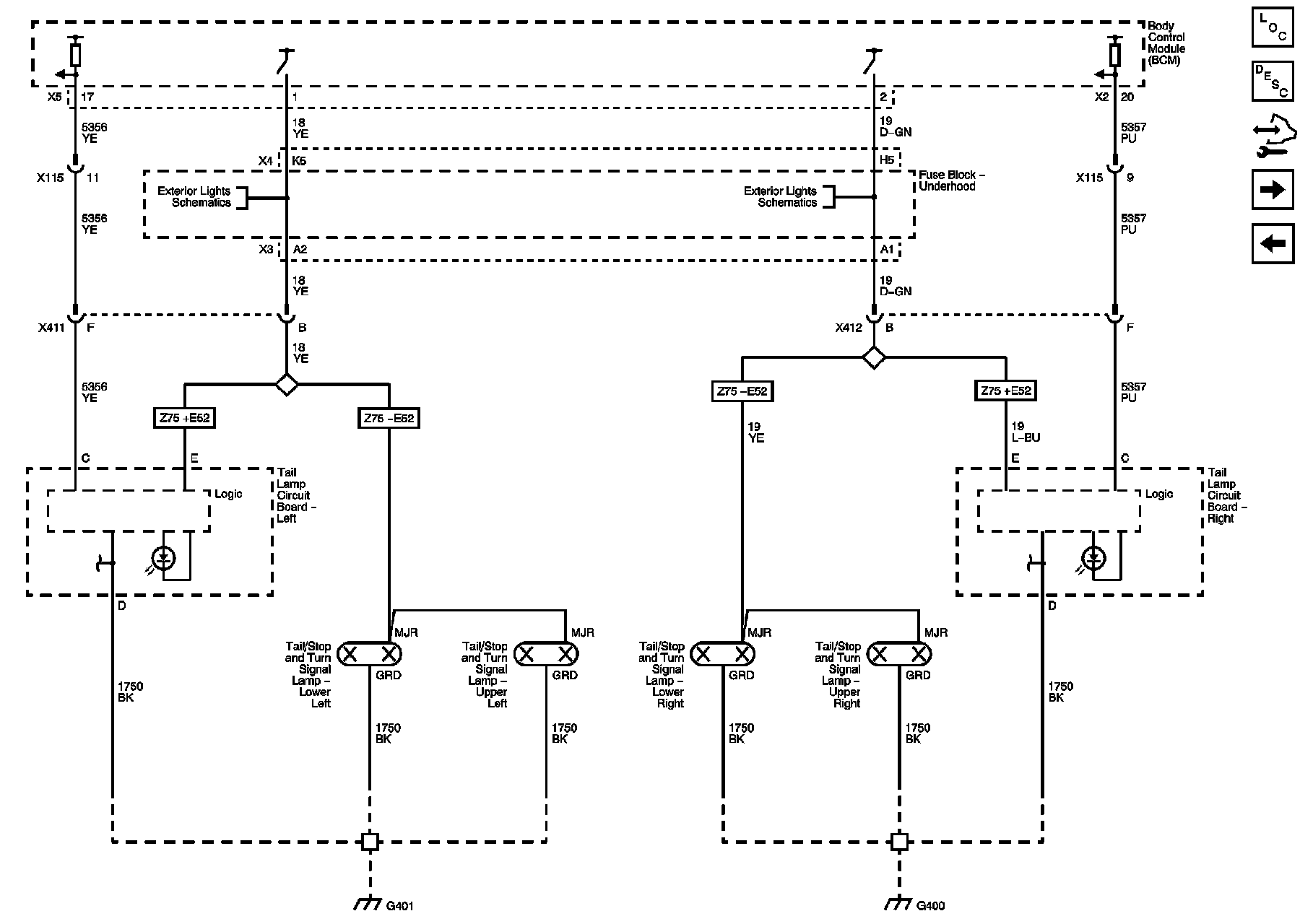

Stop Lamps (Z75 without EXP)

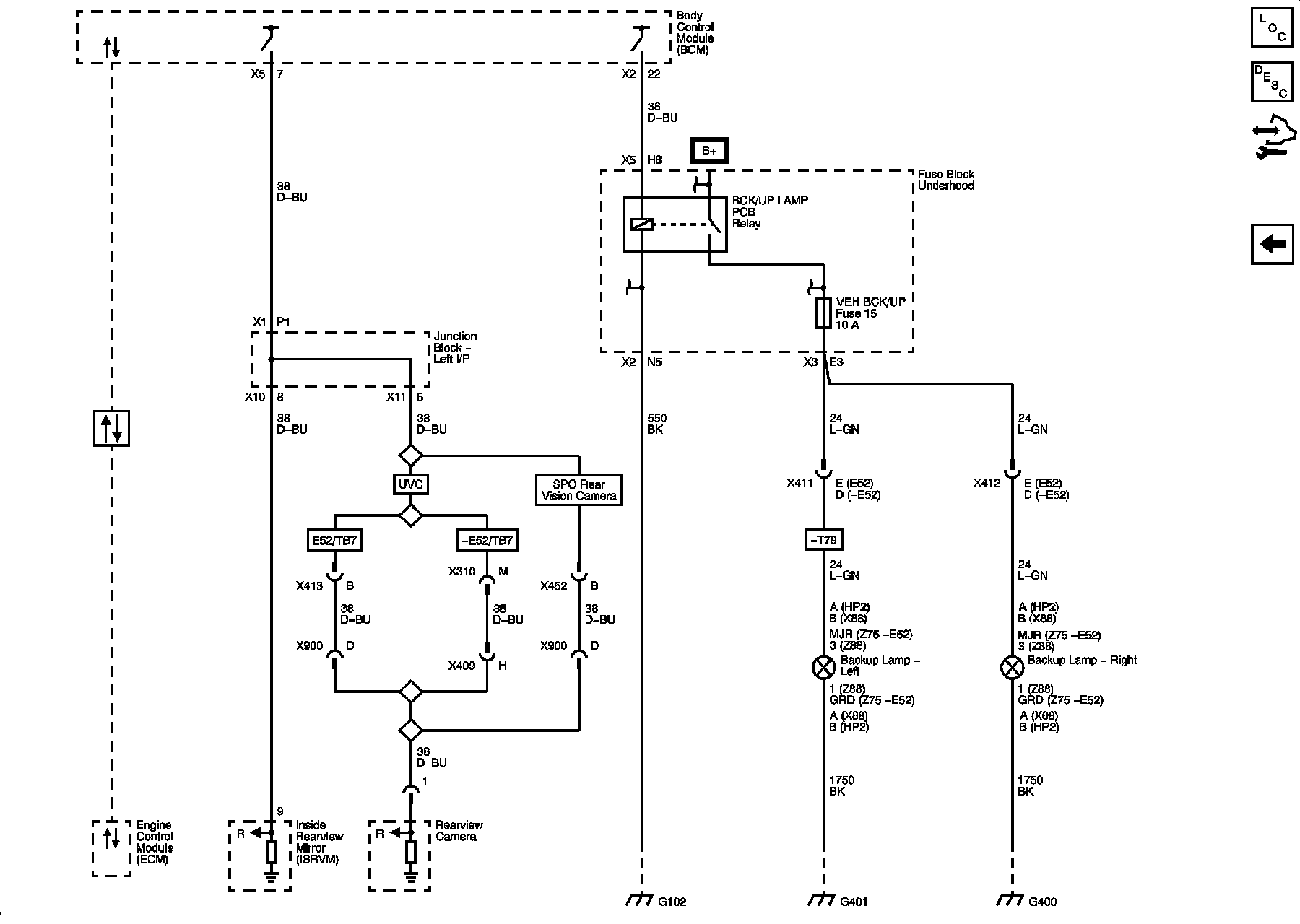

Backup Lamps
