Instrument Panel Cluster (IPC) (X88 or Z88)
Instrument Panel Cluster (IPC) (X88 or Z88)
Component Connector End Views

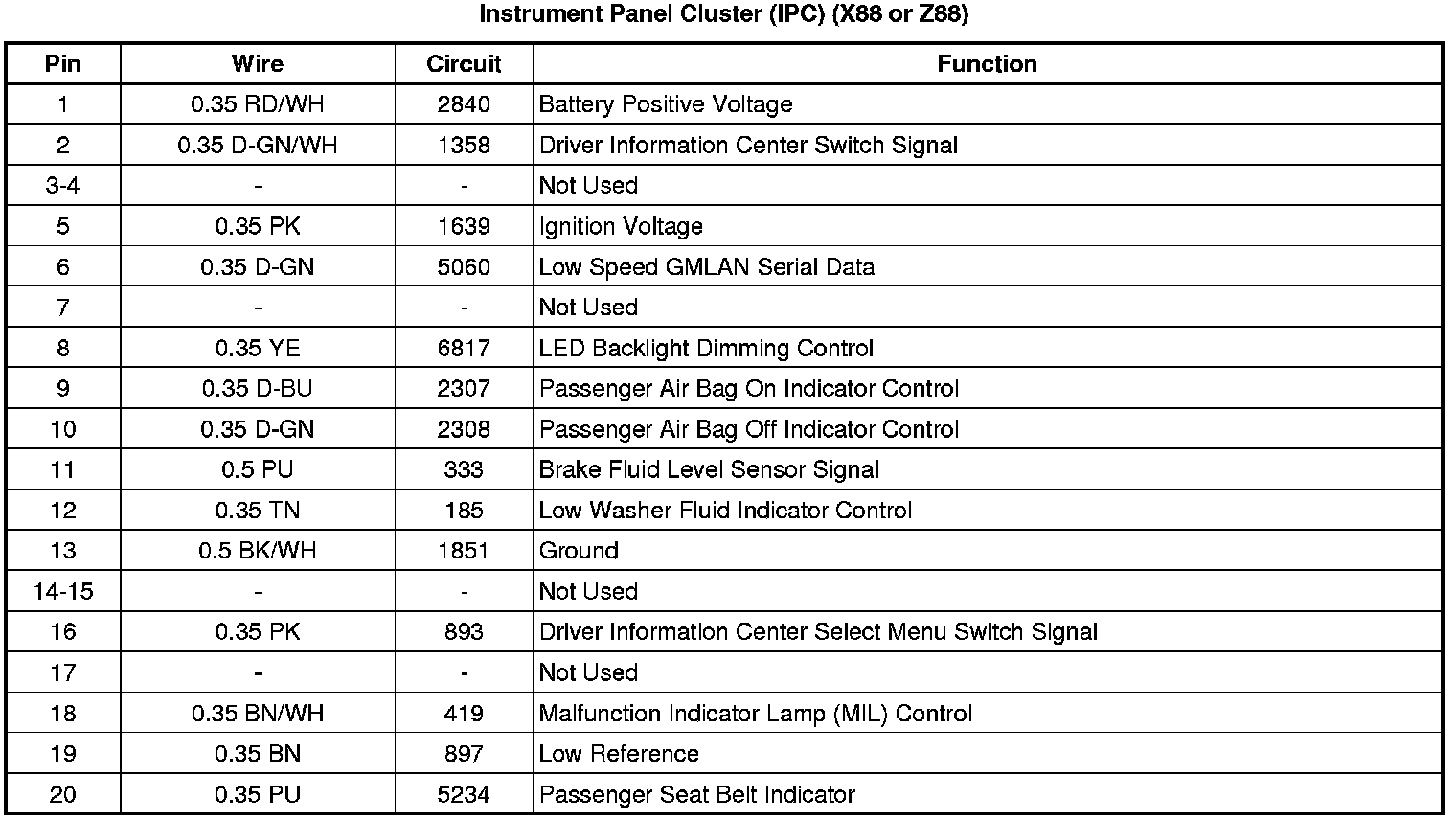

Instrument Panel Cluster (IPC) (X88 or Z88)
