Seat Temperature Element




Heated/Cooled Seat Schematics

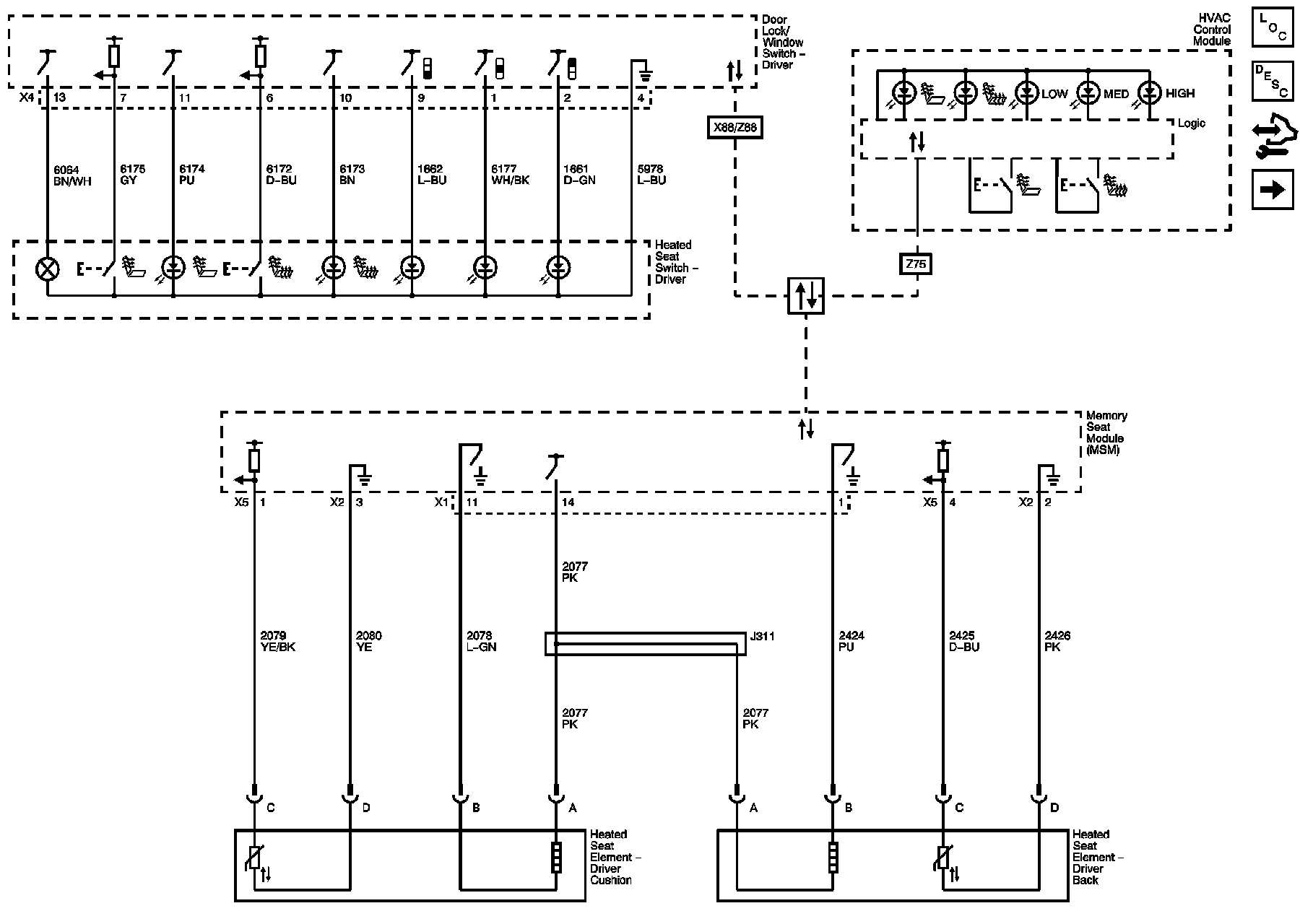

Heated Seat - Driver (AN3 without KB6)

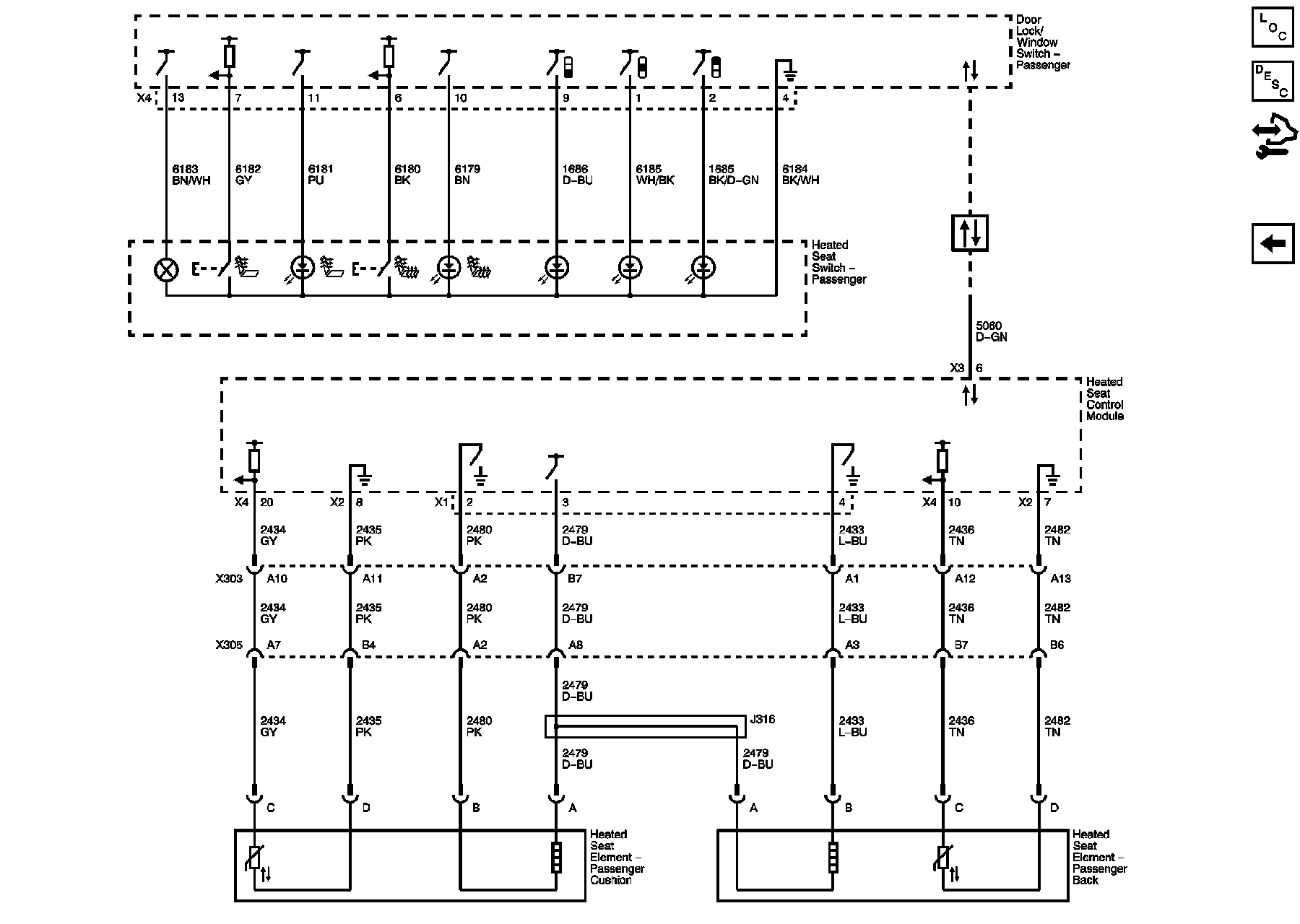

Heated Seat - Passenger (AN3 without KB6)






Heated/Cooled Seat Module Power and Ground (AN3 with KB6)






Heated/Cooled Seat - Driver (Z75 with AN3 and KB6)

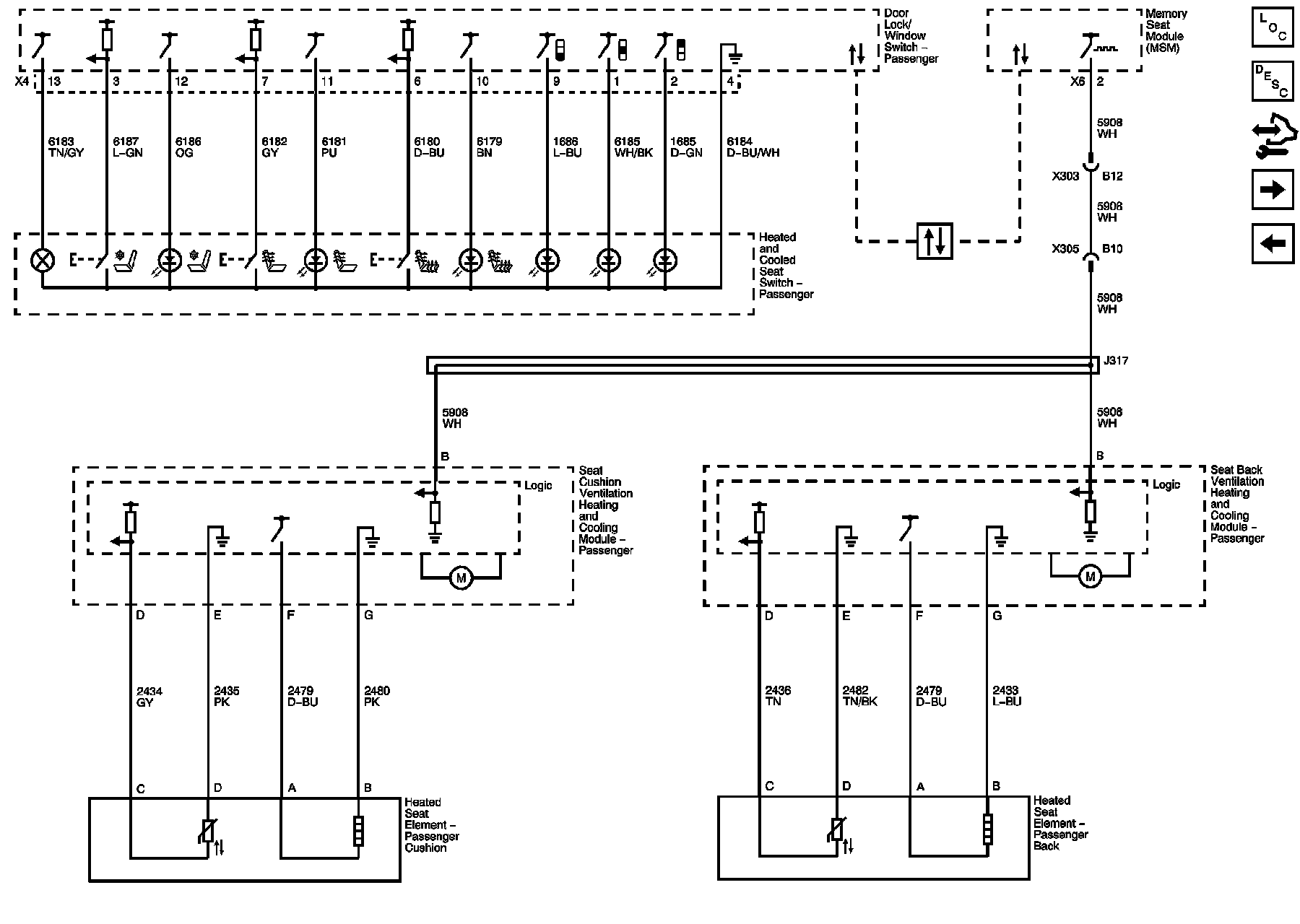

Heated/Cooled Seat - Passenger (Z75 with AN3 and KB6)

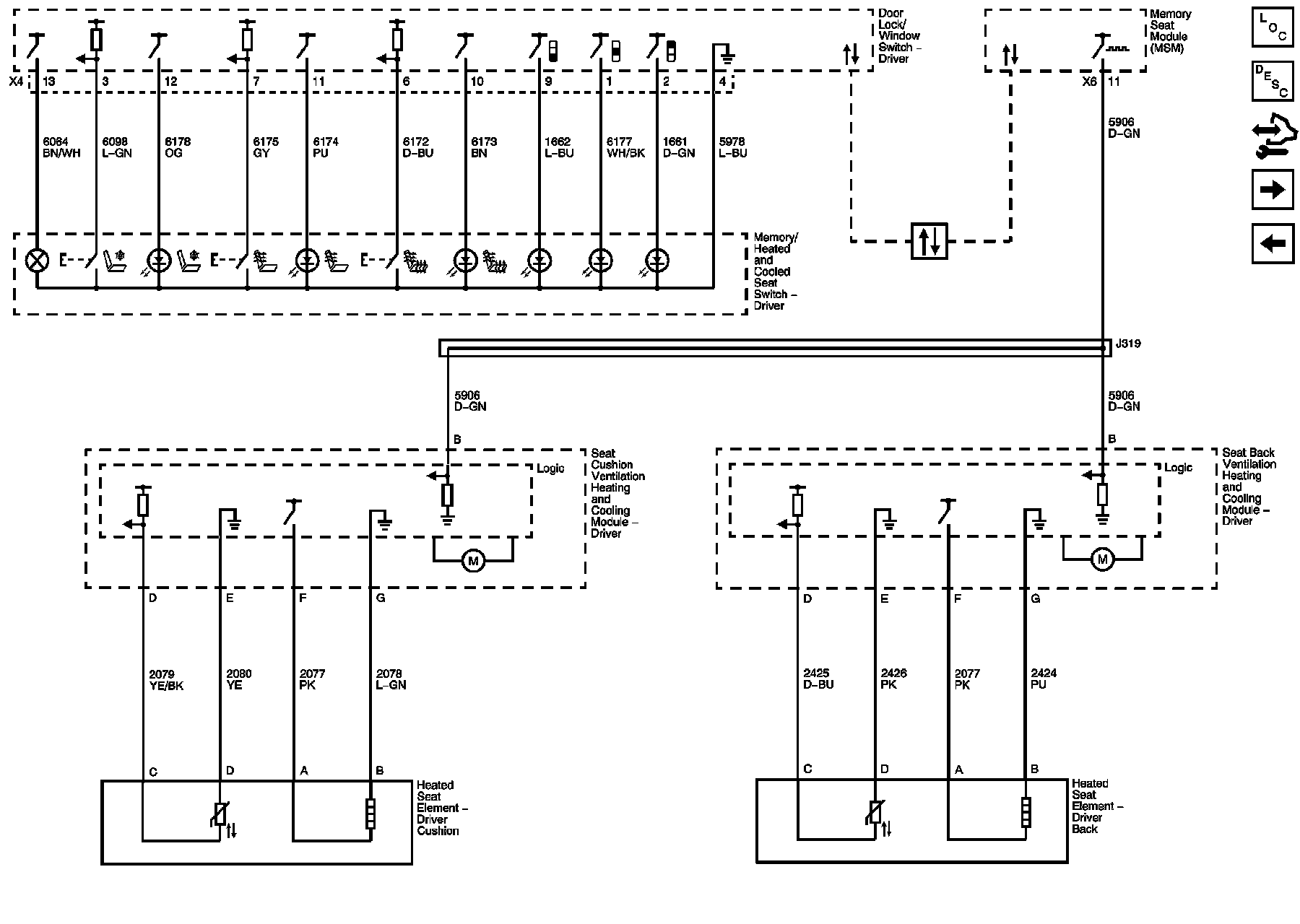

Heated/Cooled Seat - Driver (X88 or Z88, with AN3 and KB6)

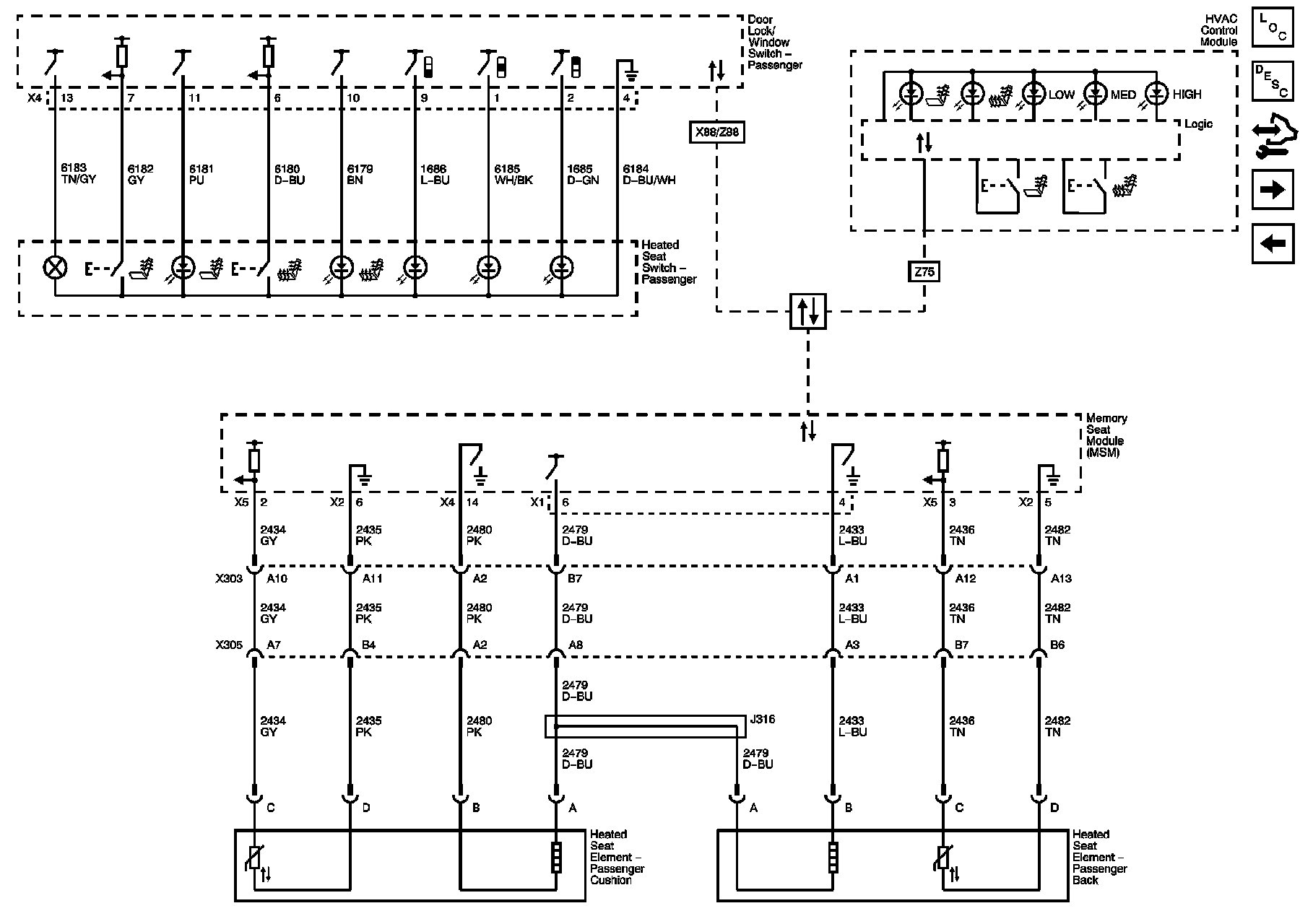

Heated/Cooled Seat - Passenger (X88 or Z88, with AN3 and KB6)

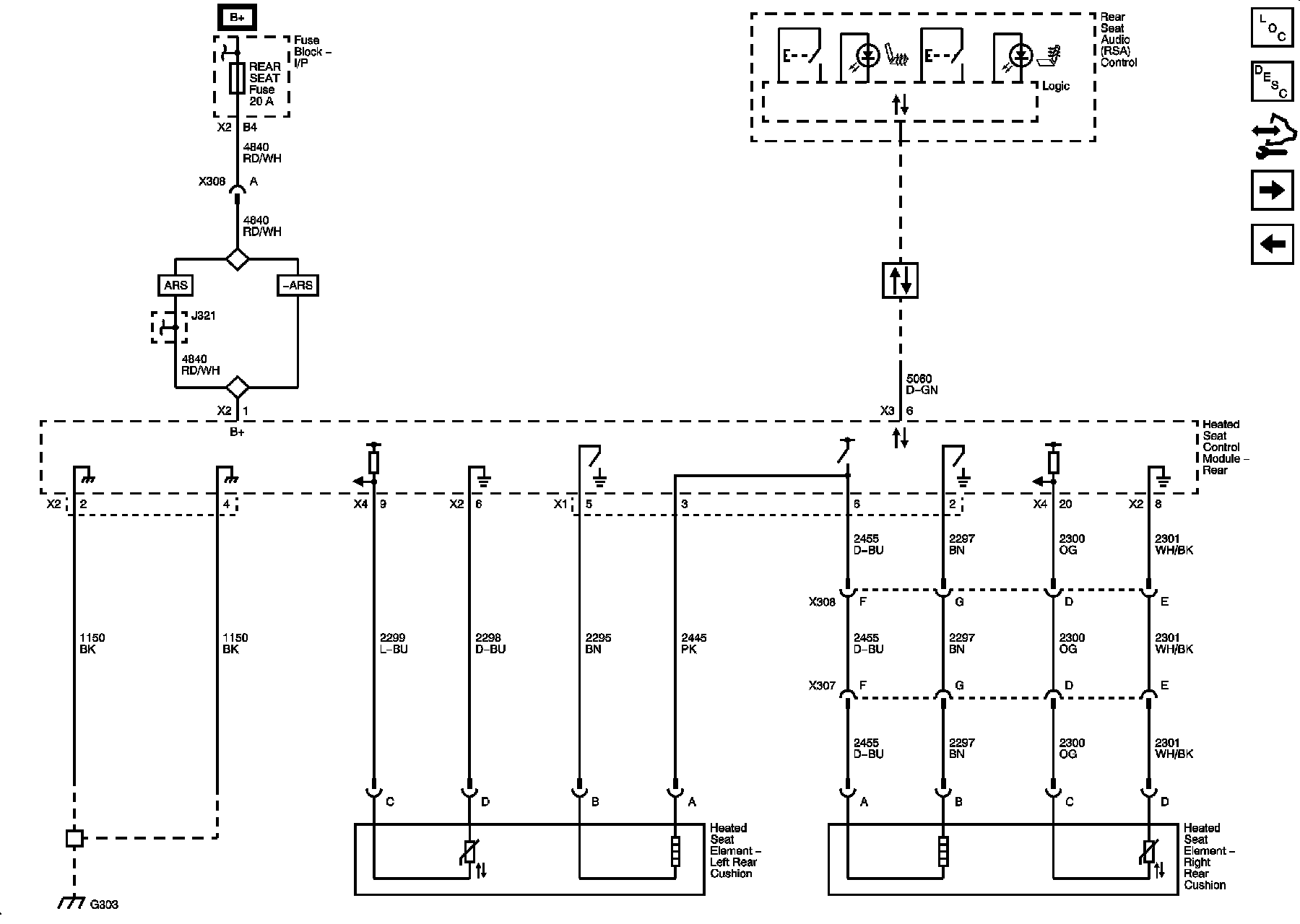

Heated Seat - Rear (KA6)

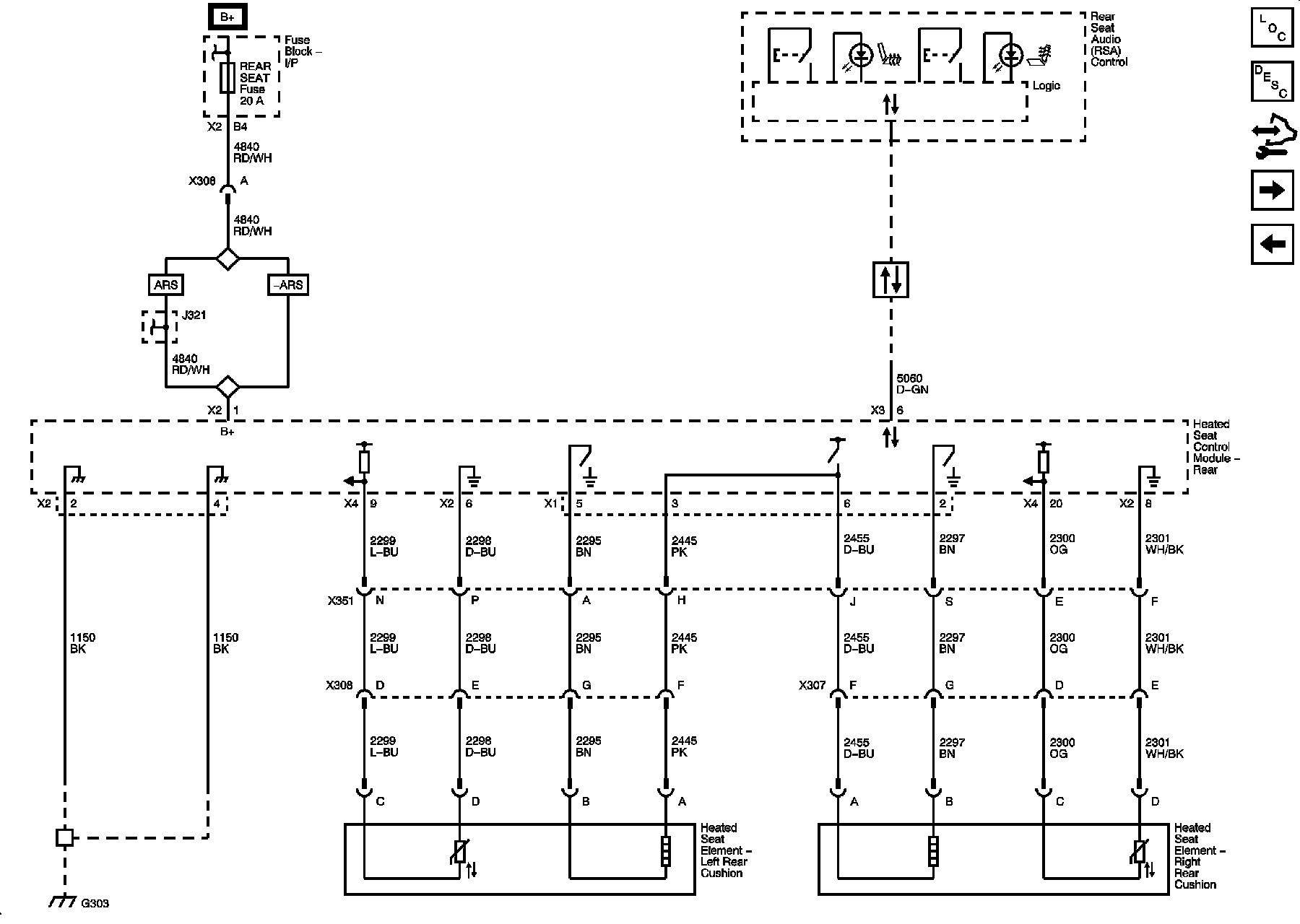

Heated Seat - Rear (KA6 with HP2)

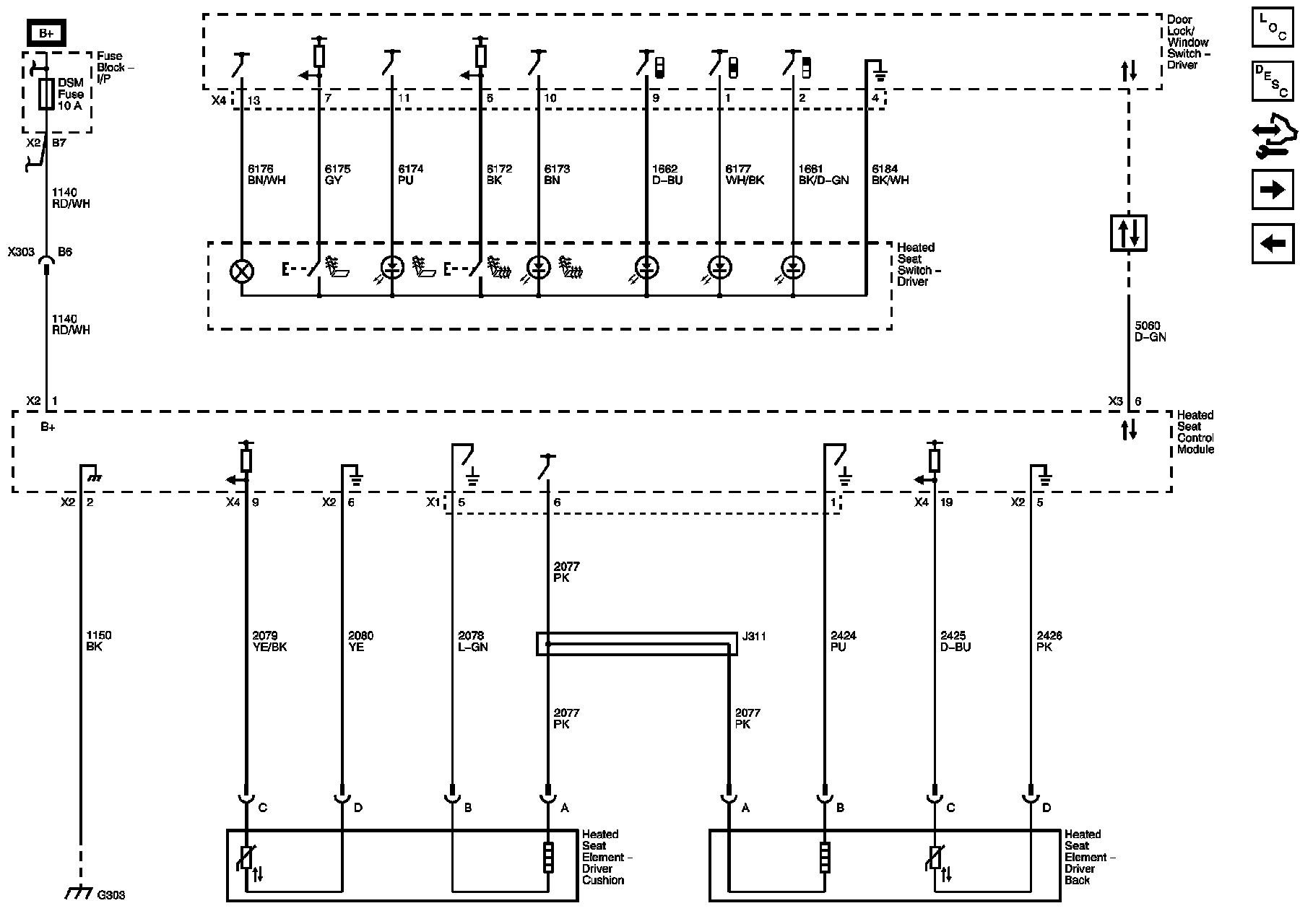

Heated Seat - Driver (KA1)






Heated Seat - Passenger (KA1)
