Less Than 3900 KG (8600 Lb) GVW




Antilock Brake System Schematics

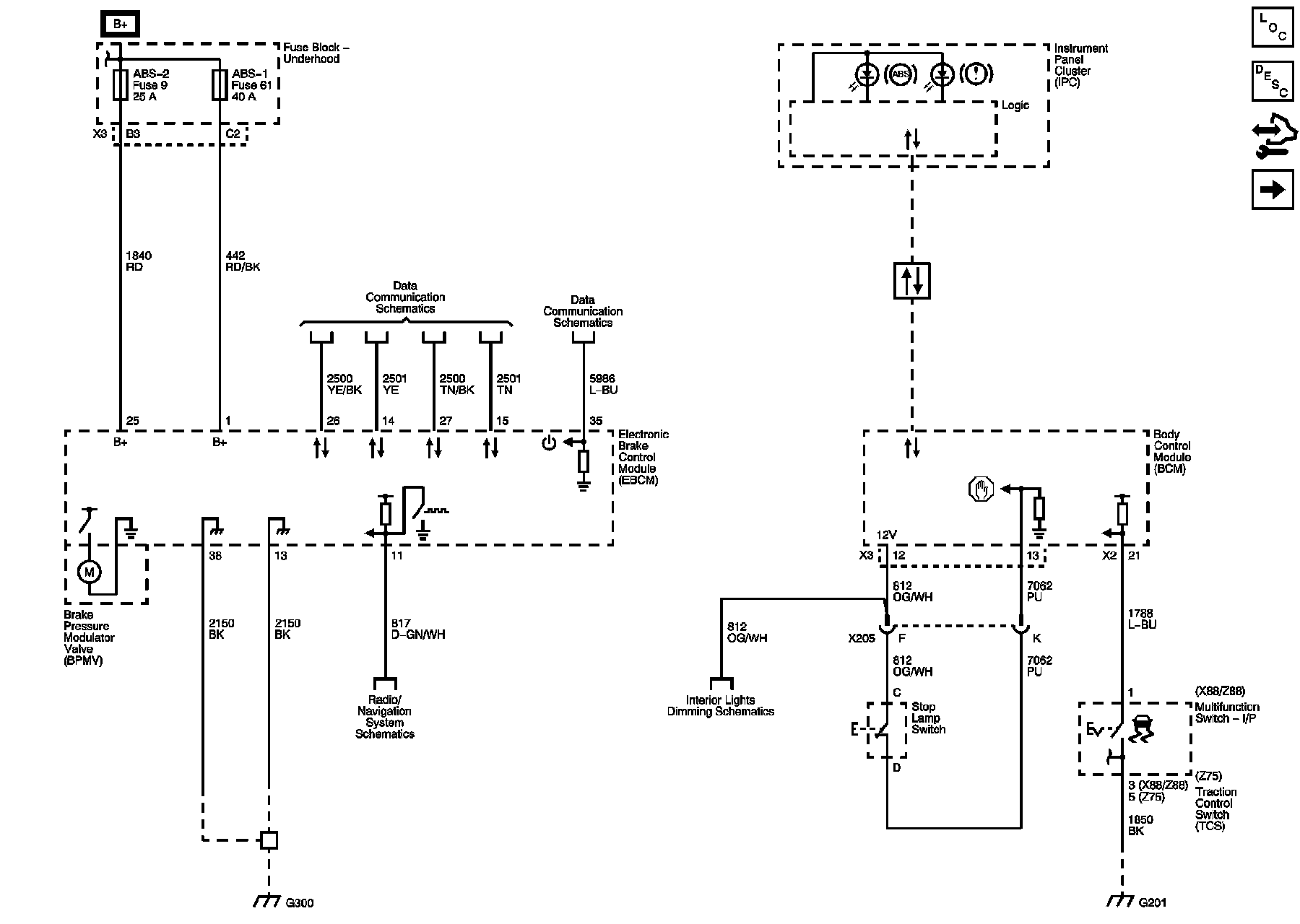

Module Power, Ground, and Serial Data, Pump Motor and Brake Switch

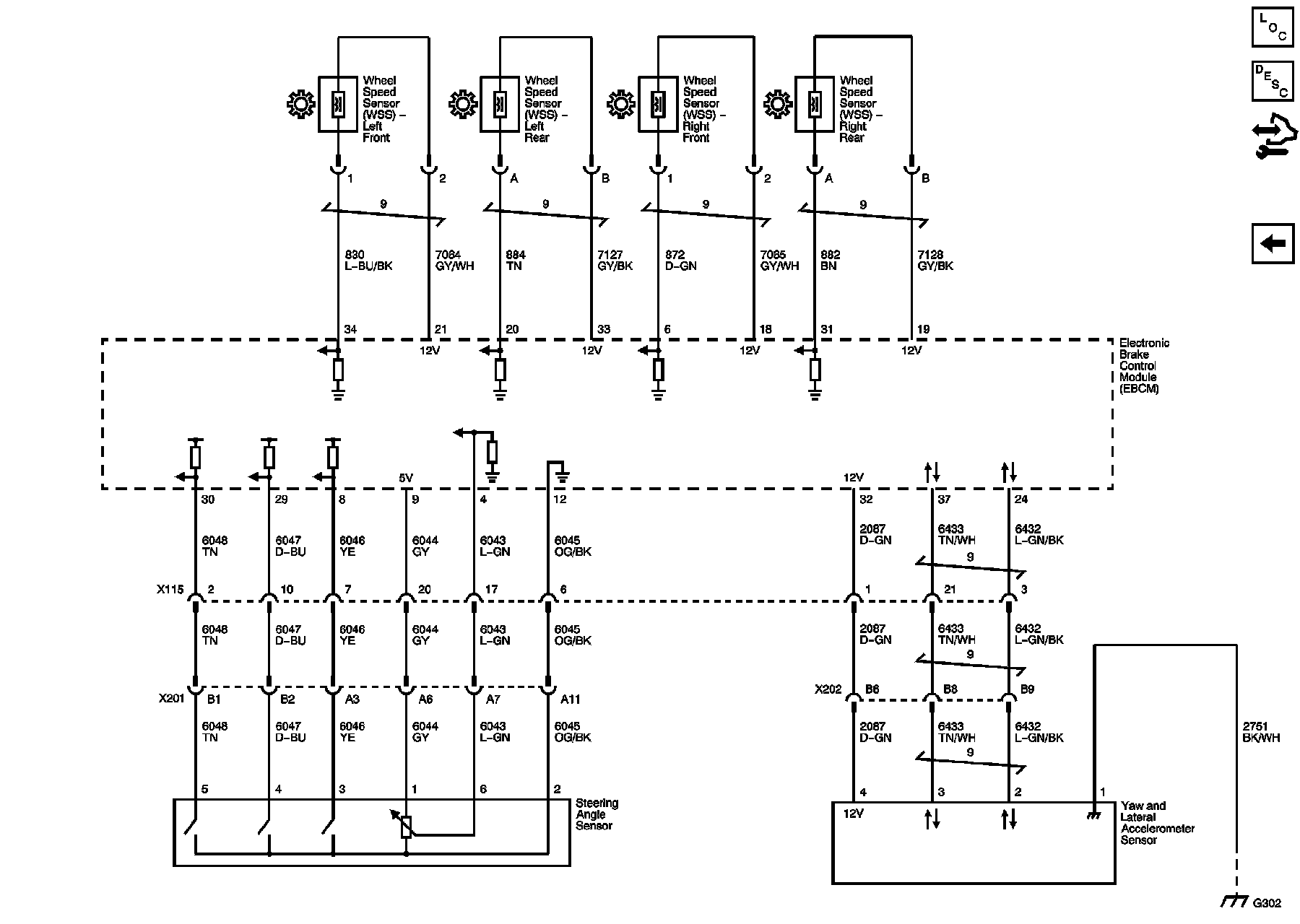

Sensors
