Z75 With E52
Z75 With E52
Inline Harness Connector End Views

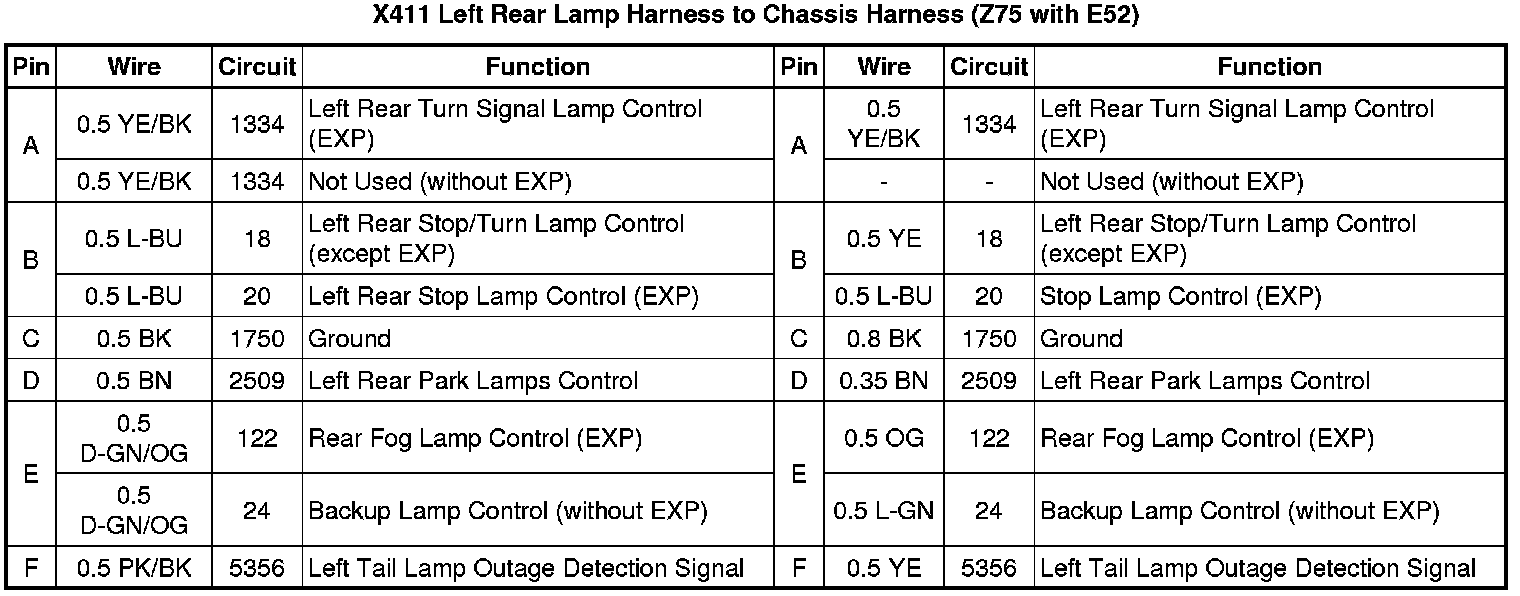

X411 Left Rear Lamp Harness to Chassis Harness (Z75 with E52)
