X407
>>
SWB With C69
SWB With C69

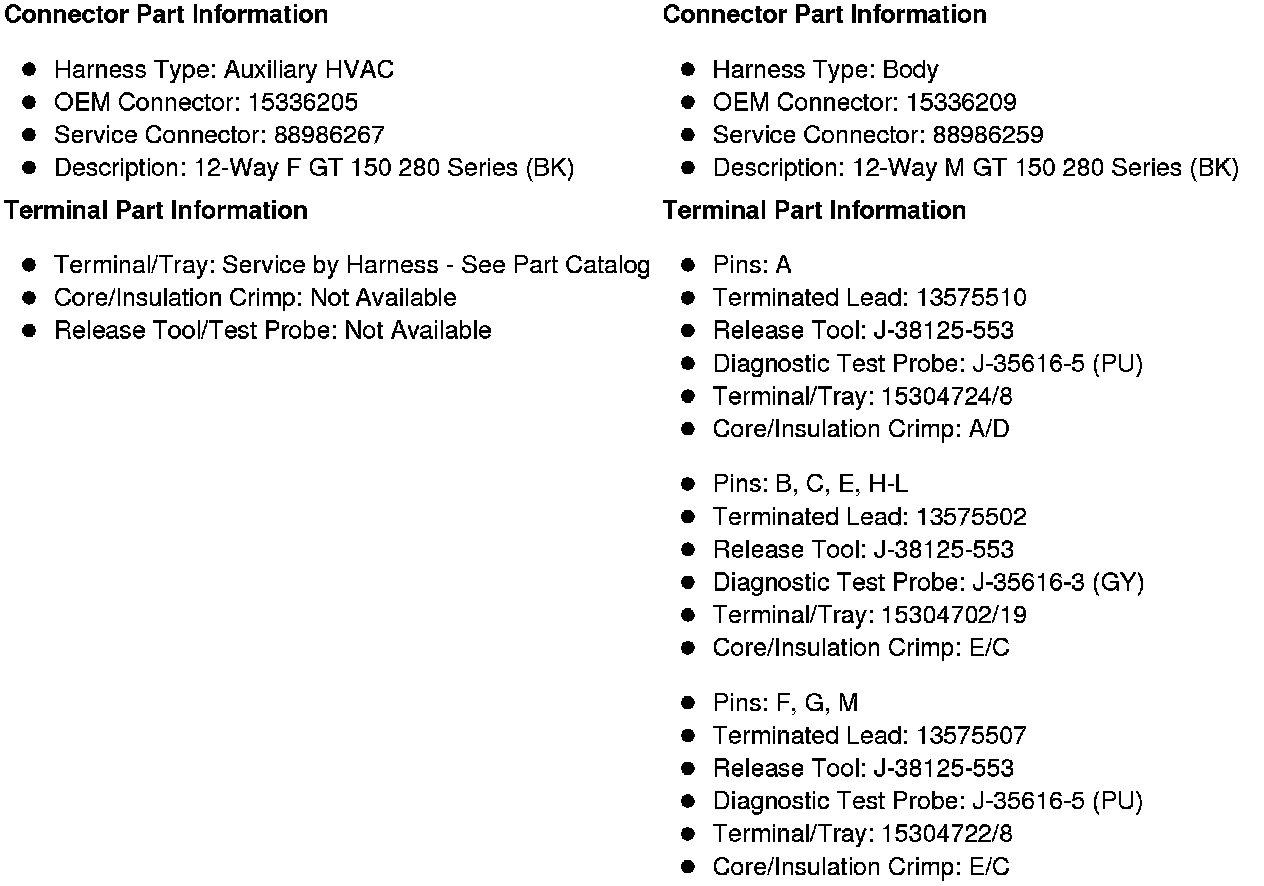

Inline Harness Connector End Views

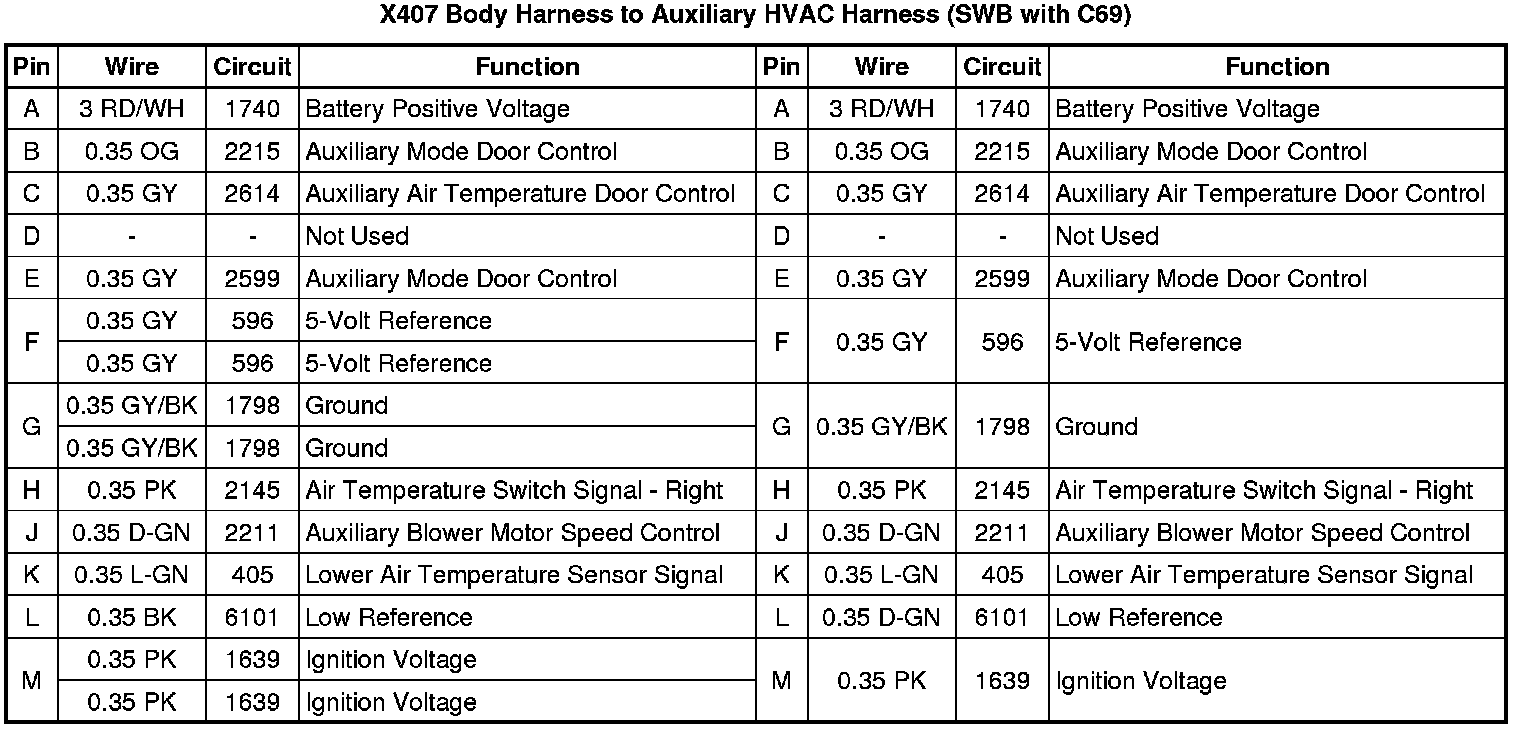

X407 Body Harness to Auxiliary HVAC Harness (SWB with C69)
