Z75 With DNU

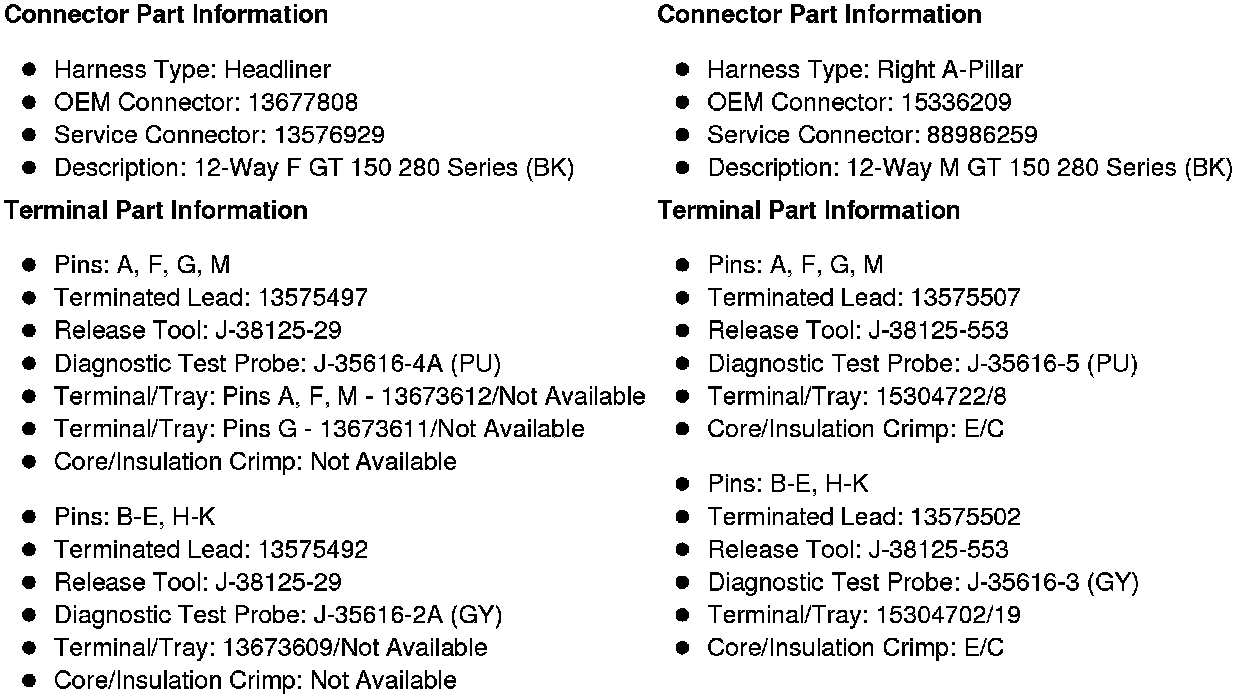

Inline Harness Connector End Views

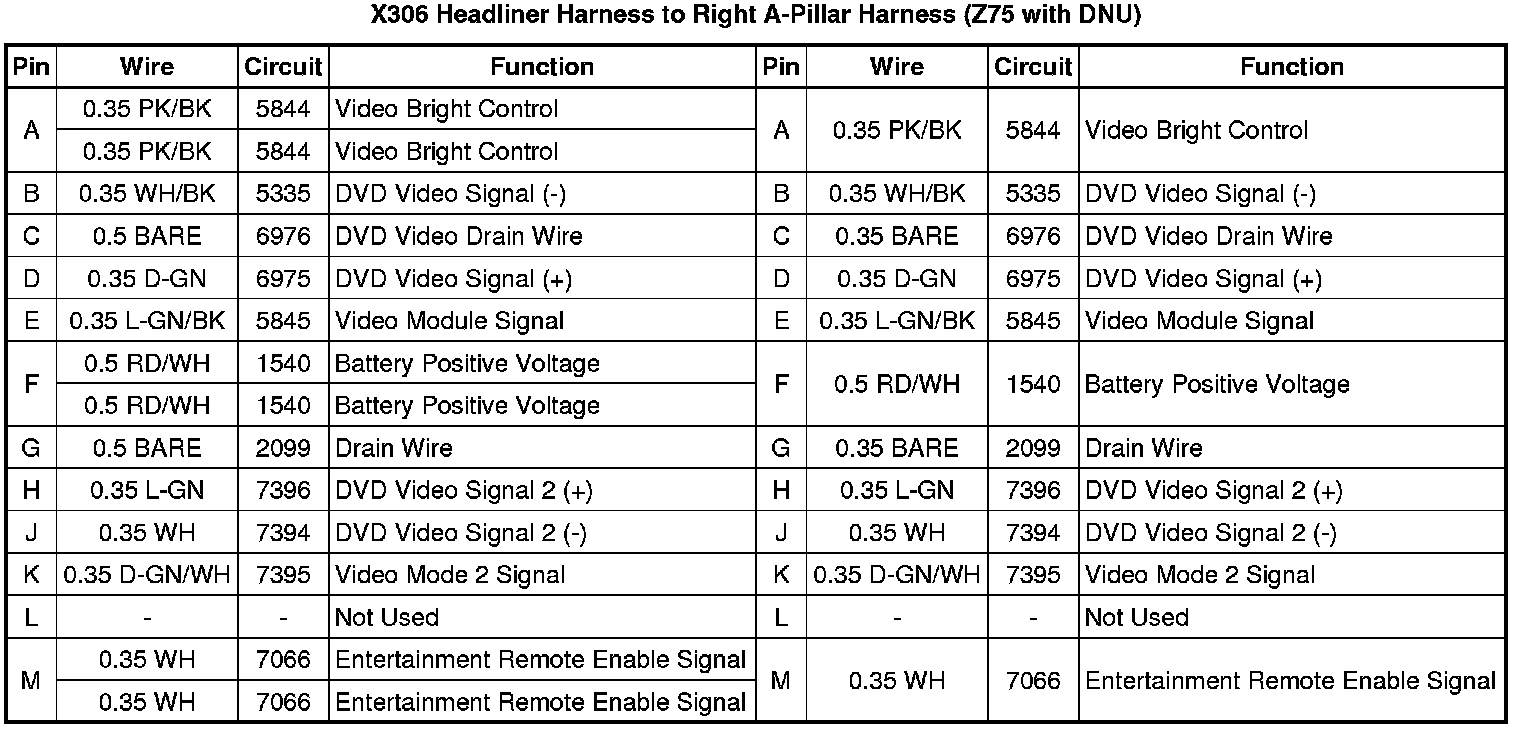

X306 Headliner Harness to Right A-Pillar Harness (Z75 with DNU)
