X305
>>
Without AN3 or HP2 With AG2
Without AN3 or HP2 With AG2

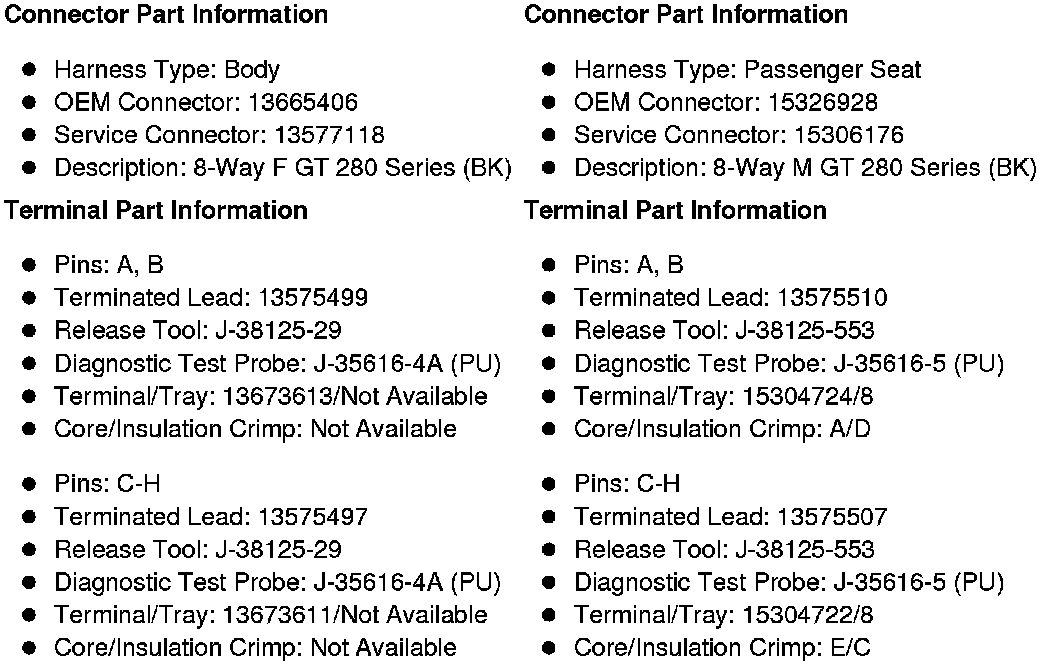

Inline Harness Connector End Views

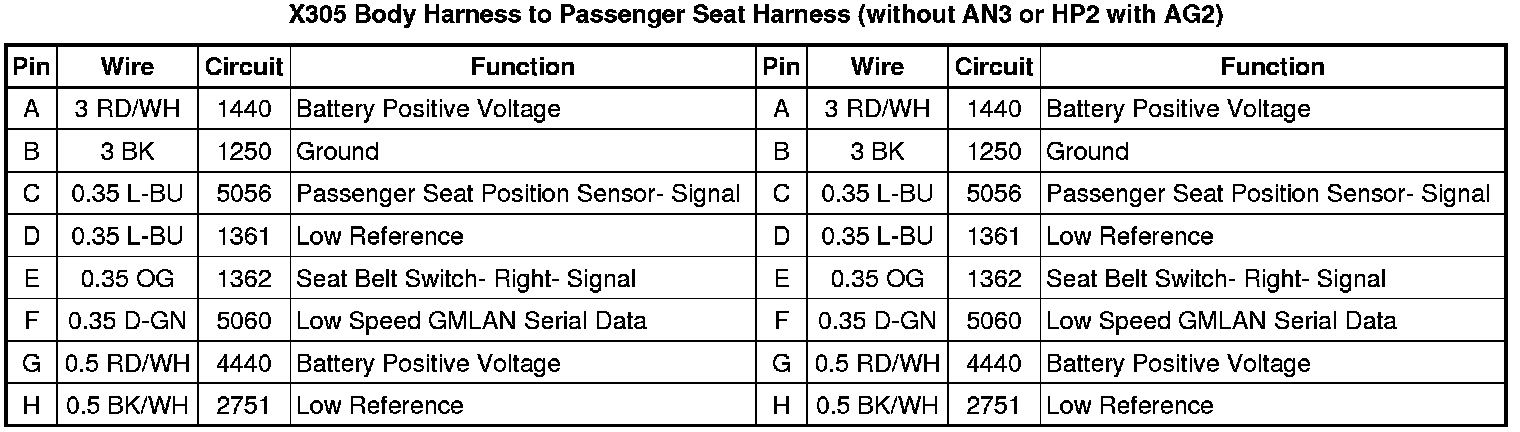

X305 Body Harness to Passenger Seat Harness (without AN3 or HP2 with AG2)
