X305
>>
AN3 or HP2 With AG1
AN3 or HP2 With AG1

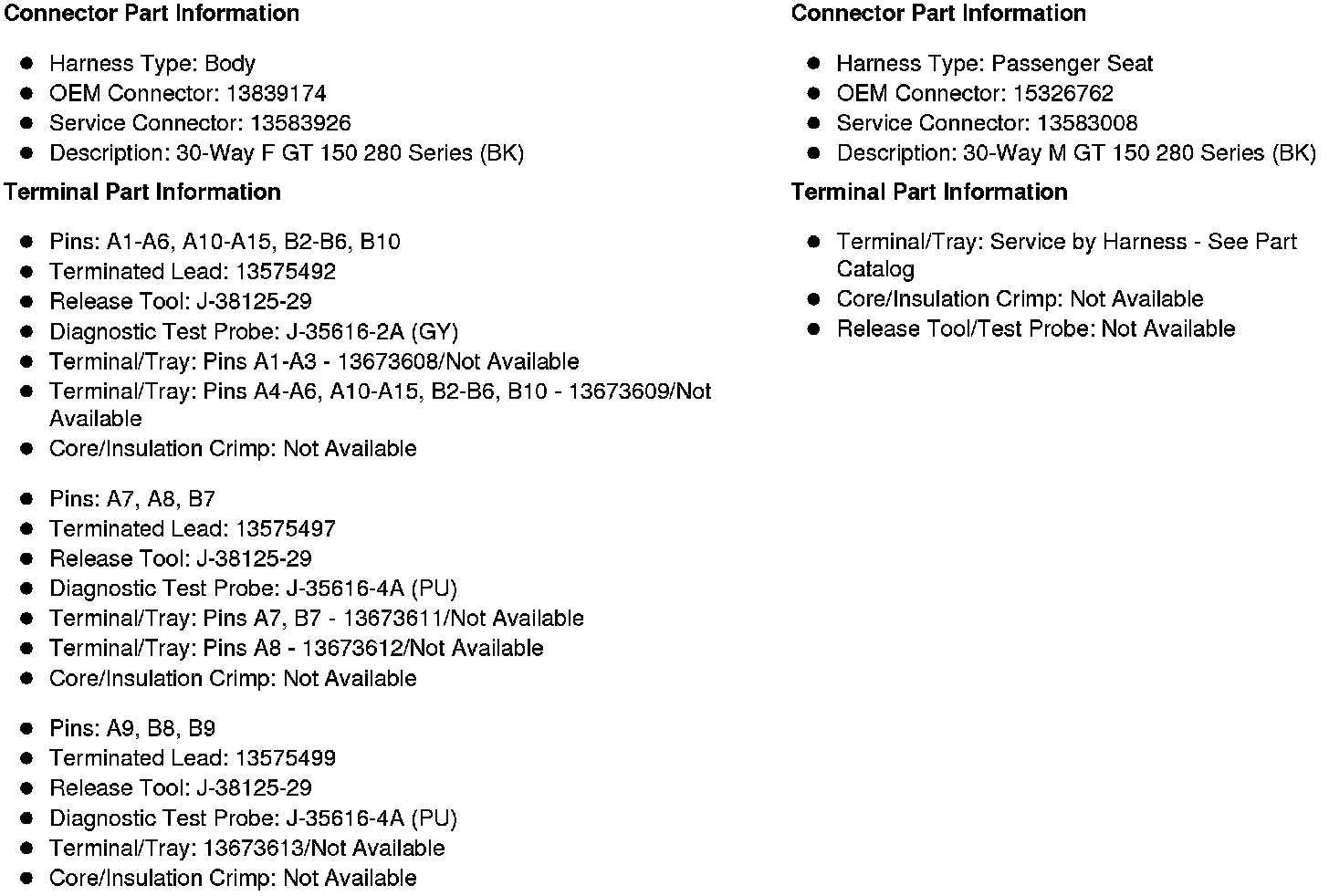

Inline Harness Connector End Views

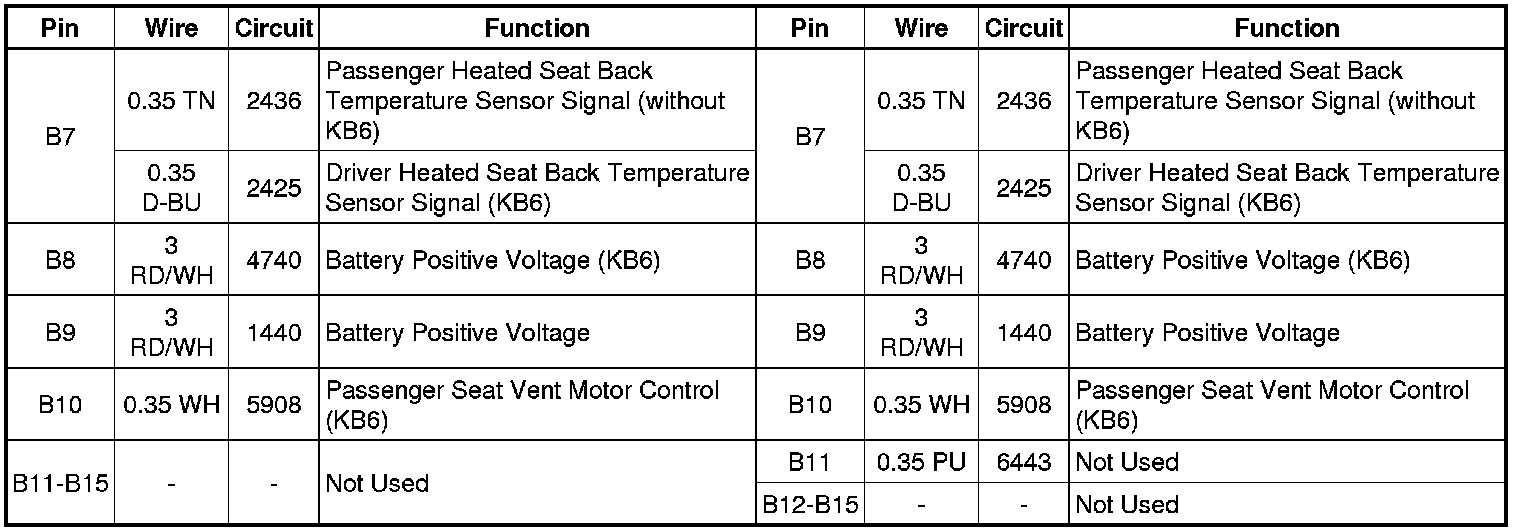

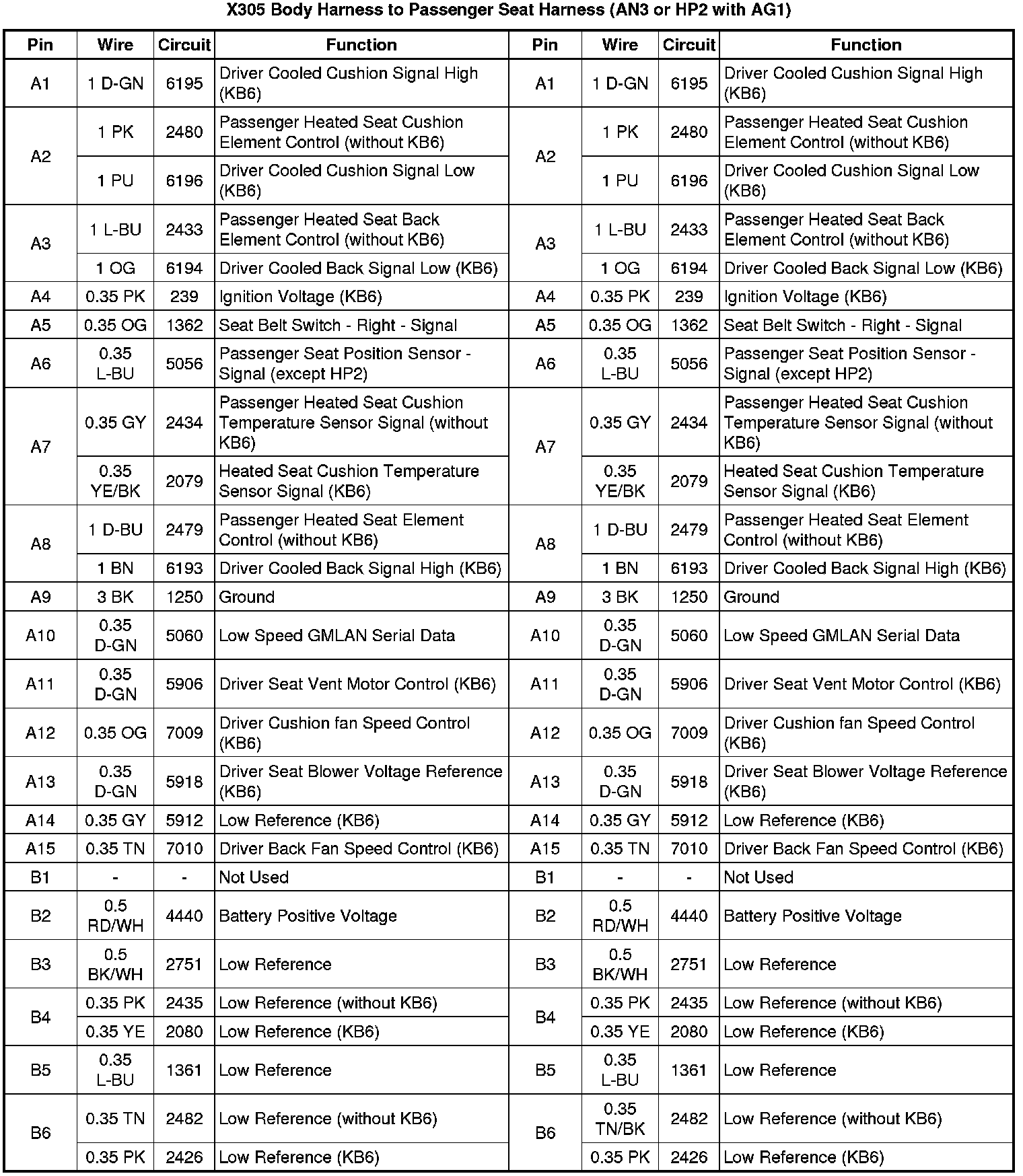

X305 Body Harness to Passenger Seat Harness (AN3 or HP2 with AG1)
