X303
>>
Without AN3 or HP2 With AG1
Without AN3 or HP2 With AG1
Inline Harness Connector End Views

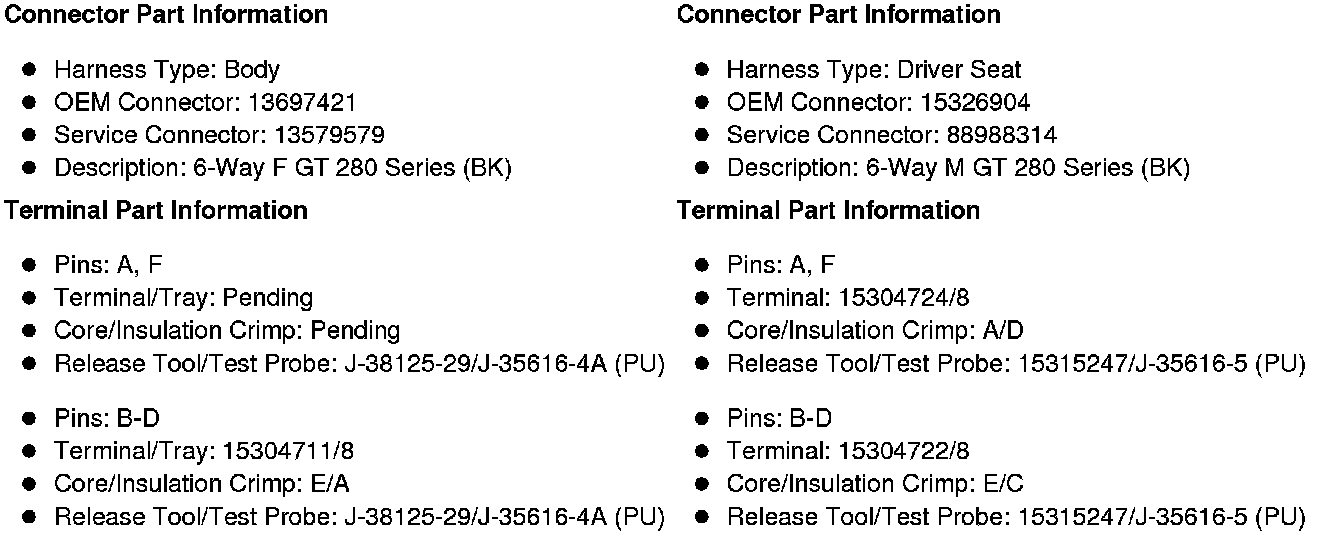

X303 Body Harness to Driver Seat Harness (without AN3 or HP2 with AG1)
