Z75 with HP2 without T4Q




Inline Harness Connector End Views

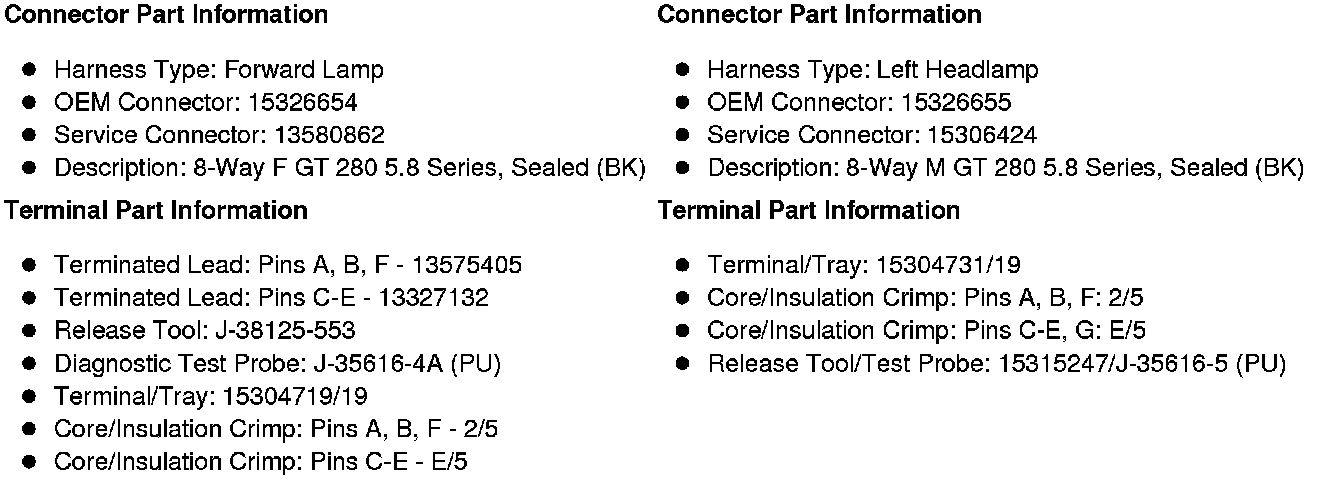

X110 Forward Lamp Harness to Left Headlamp Harness (Z75 with HP2 without T4Q)
