X110
>>
X88 or Z75 without EXP
X88 or Z75 without EXP
Inline Harness Connector End Views

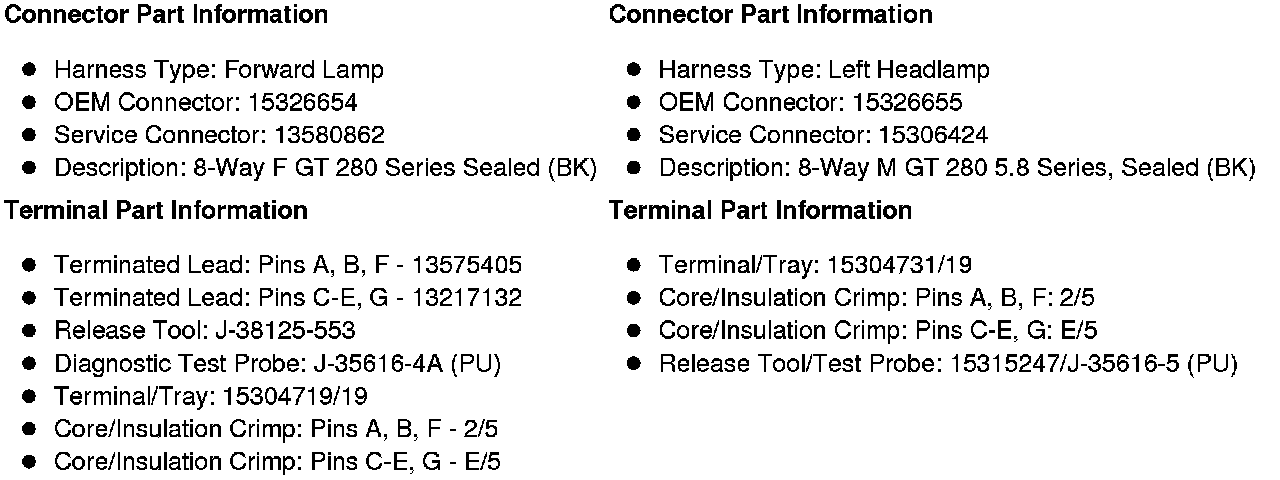

X110 Forward Lamp Harness to Left
Headlamp
Harness (X88 or Z75 without EXP)
